HDS User Manual
(HTT06291133)

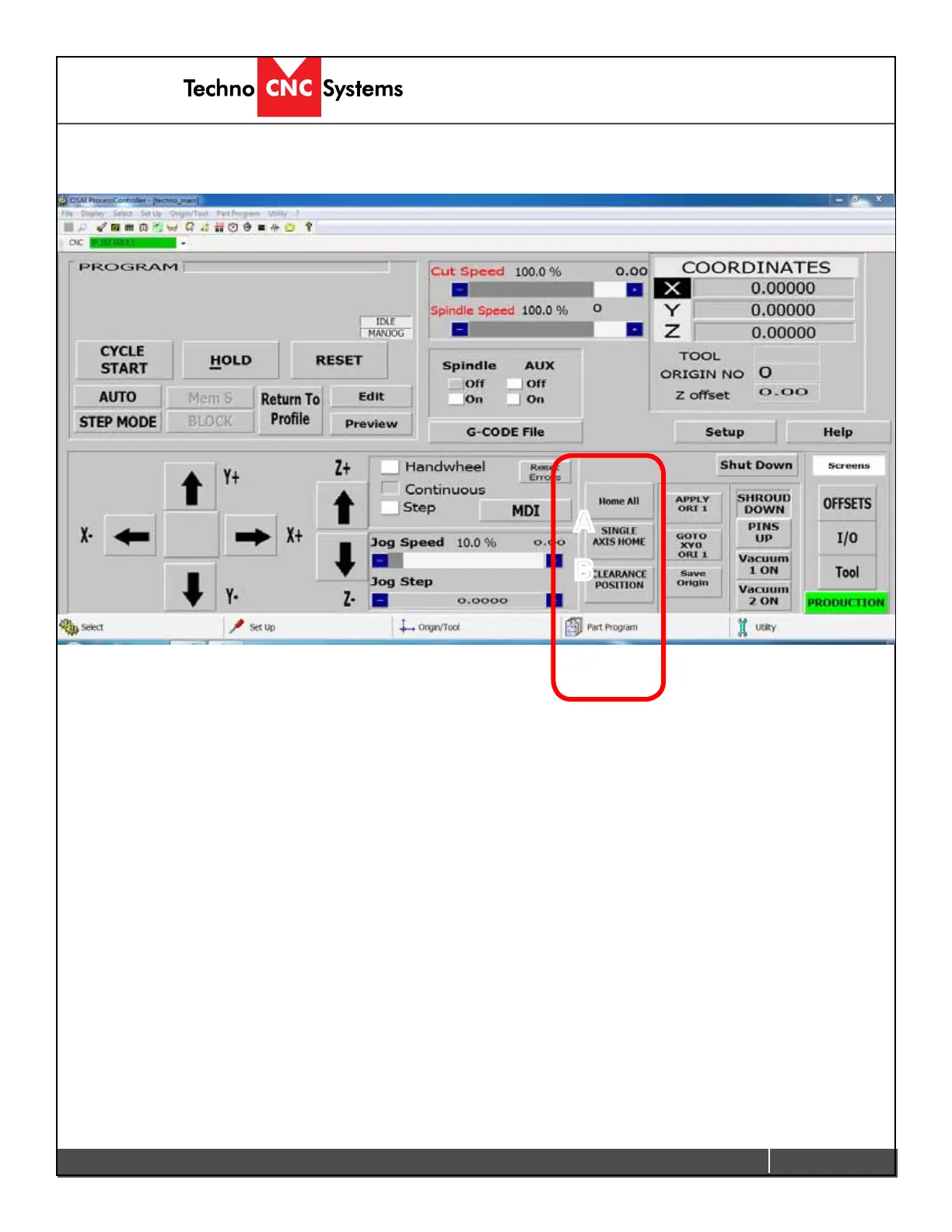

The sections highlighted below are the Homing Functions of the interface.
A - Home All:
Sendsthemachinetothehomeposition.(AbsoluteXYZ=0).TheZaxiswillrstmoveuptoits
limit, then the X and Y axes will move simultaneously.
B - SINGLE AXIS HOME:
When this button is left clicked, each axis can be homed separately. When the button is active,
the user then clicks on the arrow key for the axis to be homed to enable the operation.
B-Homing Functions
A
B
