K-Tool Menu

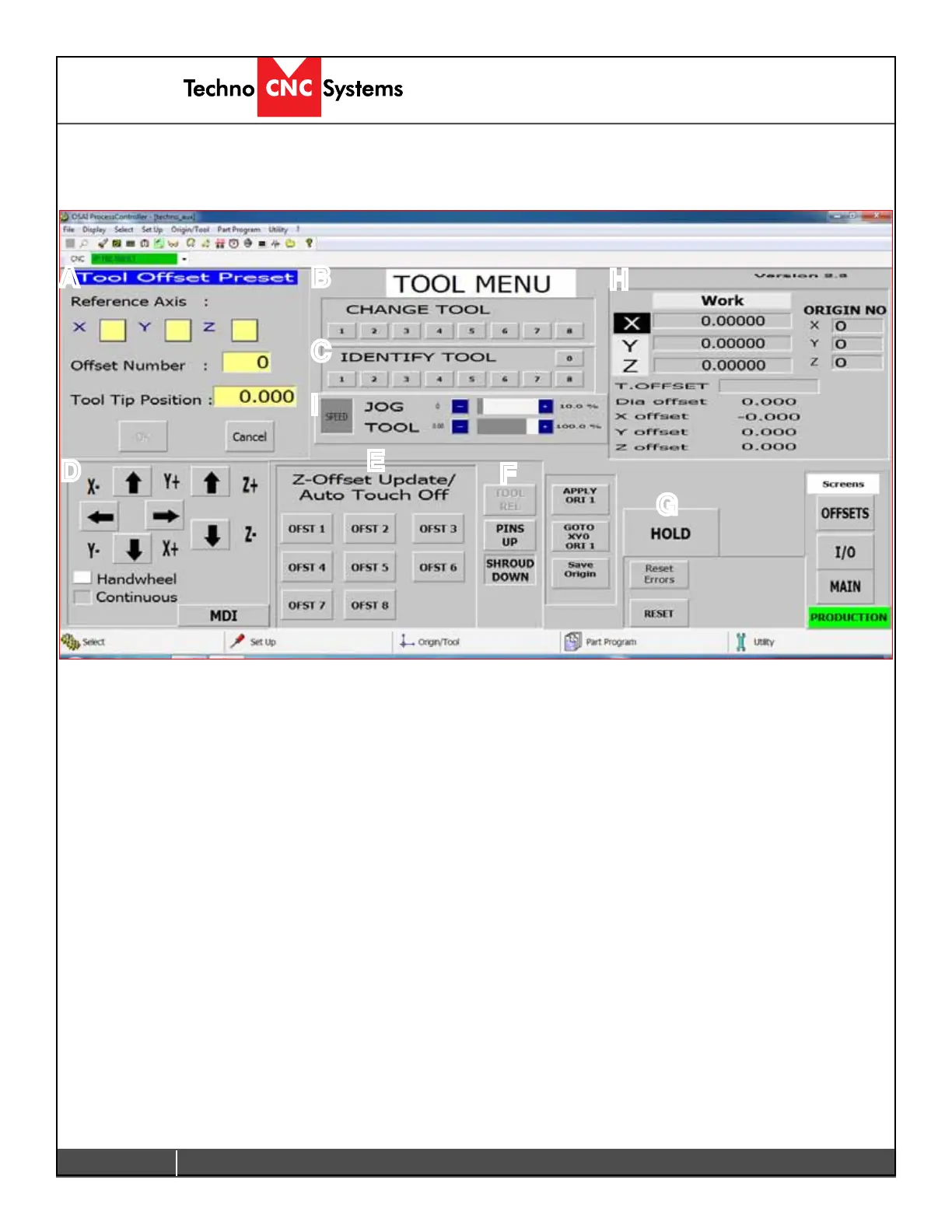

When Tool is clicked on the main menu, the screen below will open up. In this screen tool
lengths can be learned, tools identied and changed automatically.
A B
C
D
E
F
G
H
A - Tool Offset Preset:
This section allows the user to manually enter tool offsets.
B - CHANGE TOOL:
Left clicking on one of these buttons will make the machine pick up the corresponding tool number.
C - IDENTIFY TOOL:
Left clicking on one of these buttons will change the tool number on the screen and apply the Z-Offset.
D - Jog Functions:
Thisisaminimizedversionoftheregularjogfunctions.
E - Z-Offset Update:
Pressing one of these buttons will cause the Tool to move down until it touches the Tool Calibration Block, and
then it will store the Z-offset for that tool number.
F - Pneumatic Controls:
This section controls dust shroud, chuck control and pop up pins.
G - HOLD:
Pressing hold during a tool change will cause the operation to be aborted.
H - Coordinates System:
This displays the system coordinates and active origin, etc.
I - SPEED:
Jog speed, and speed the machine moves when changing tools can be controlled by these settings.
