For Support Visit· support.technocnc.com or Call: (631) 648-7481
HDS User Manual
(HTT06291133)
Please follow these
instructions carefully to
properly install the HSD
aggregate on your machine.

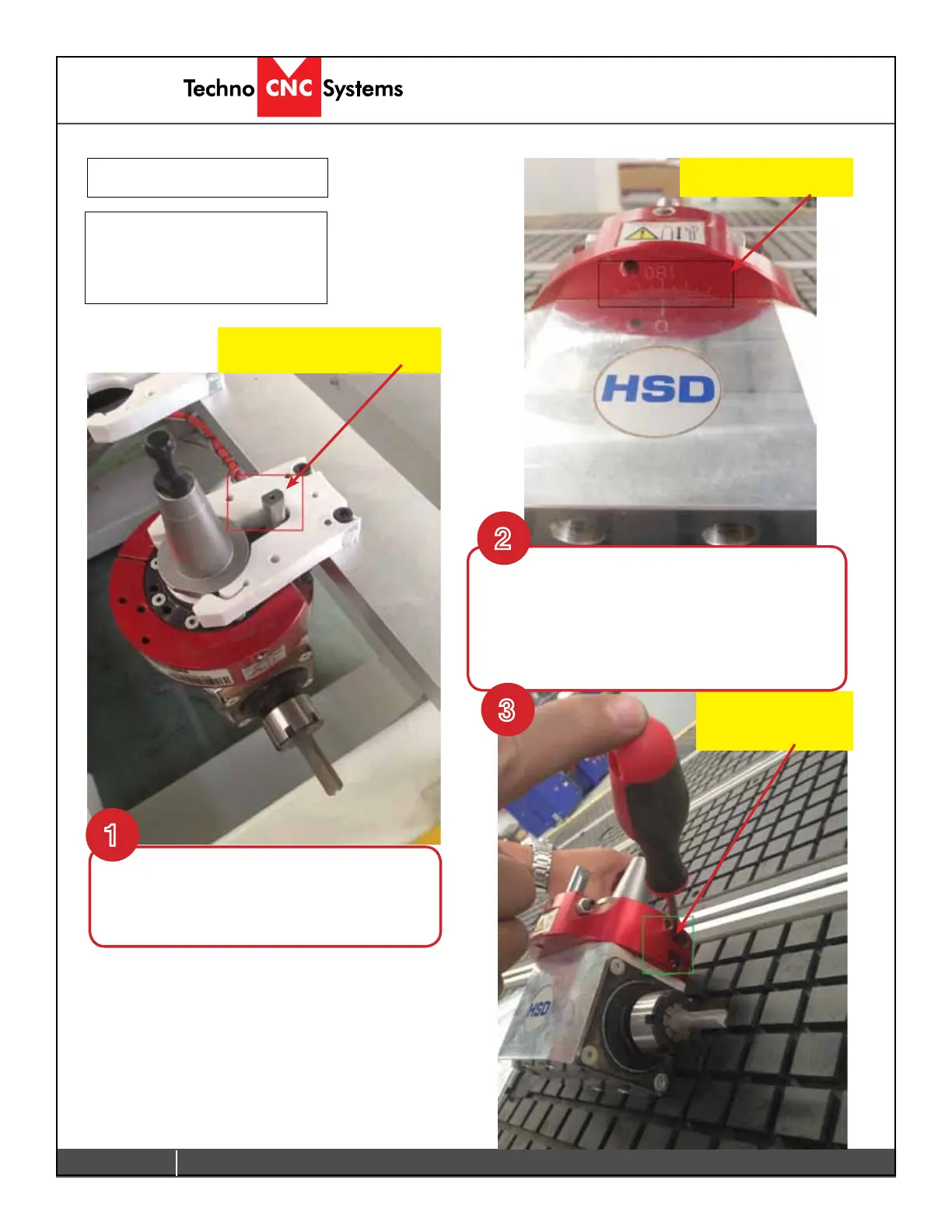

(Diagram 2. The current
aggregate angle.)
(Diagram 1. The pin must be in
this position in the tool holder.)
(Diagram 3. Loosen
these screws to adjust
the aggregate angle.)
HSD Aggregate Tool
Diagram 1 illustrates how the aggregate must
be seated in the ISO30 tool clip.
Diagrams 2 and 3 illustrate how to adjust the
angle of the aggregate cutting tools.
It is essential that the pin (shown in Diagram 1)
remains in the shown position so that it aligns with
the aggregate tool ring and ISO30 tool clip.
2
1
3
Section VI: Appendix
6.0 HSD Aggregate Tool Setup.
