Techno
Inc.
HTT03170704
10
Premium Class Setup Instructions
Phone: 516-328-3970 · Web: www.technocnc.com
Continue to next page …
III. THK RAILS:
THK specifi cations indicate that a small amount of
grease needs to be applied to the rails after 4 months
of use.

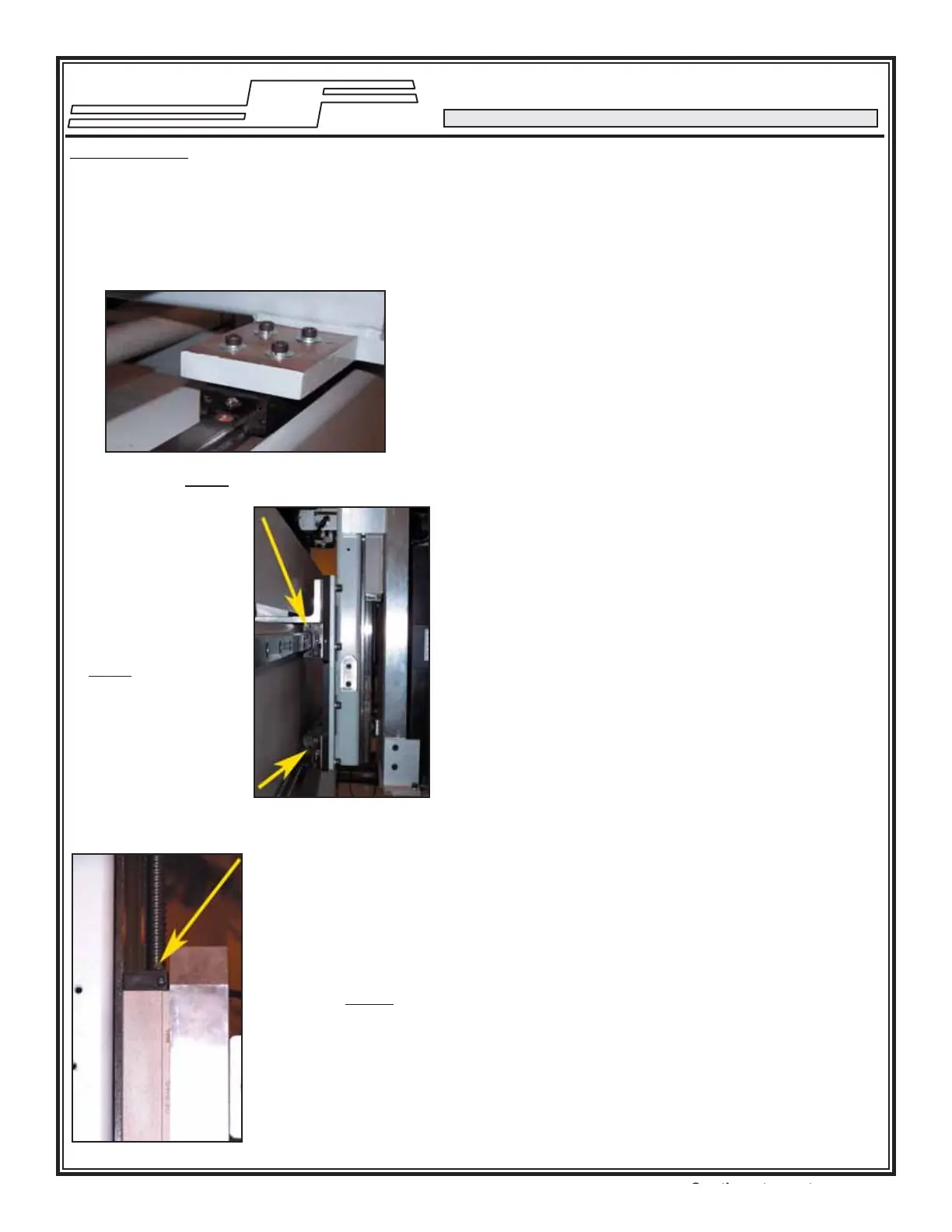

The following pictures indicate the location of the
grease fi ttings. Be sure to grease all 4 fi ttings, on all
three axes!
Y-AXIS RAIL
(ONE OF FOUR GREASE FITTINGS)
X-AXIS RAILS
(SIDE VIEW, TWO OF
FOUR INCLUDING
THE Z-AXIS)
Z-AXIS
(UPPER SIDE VIEW,
ONE OF FOUR
GREASE FITTINGS)
