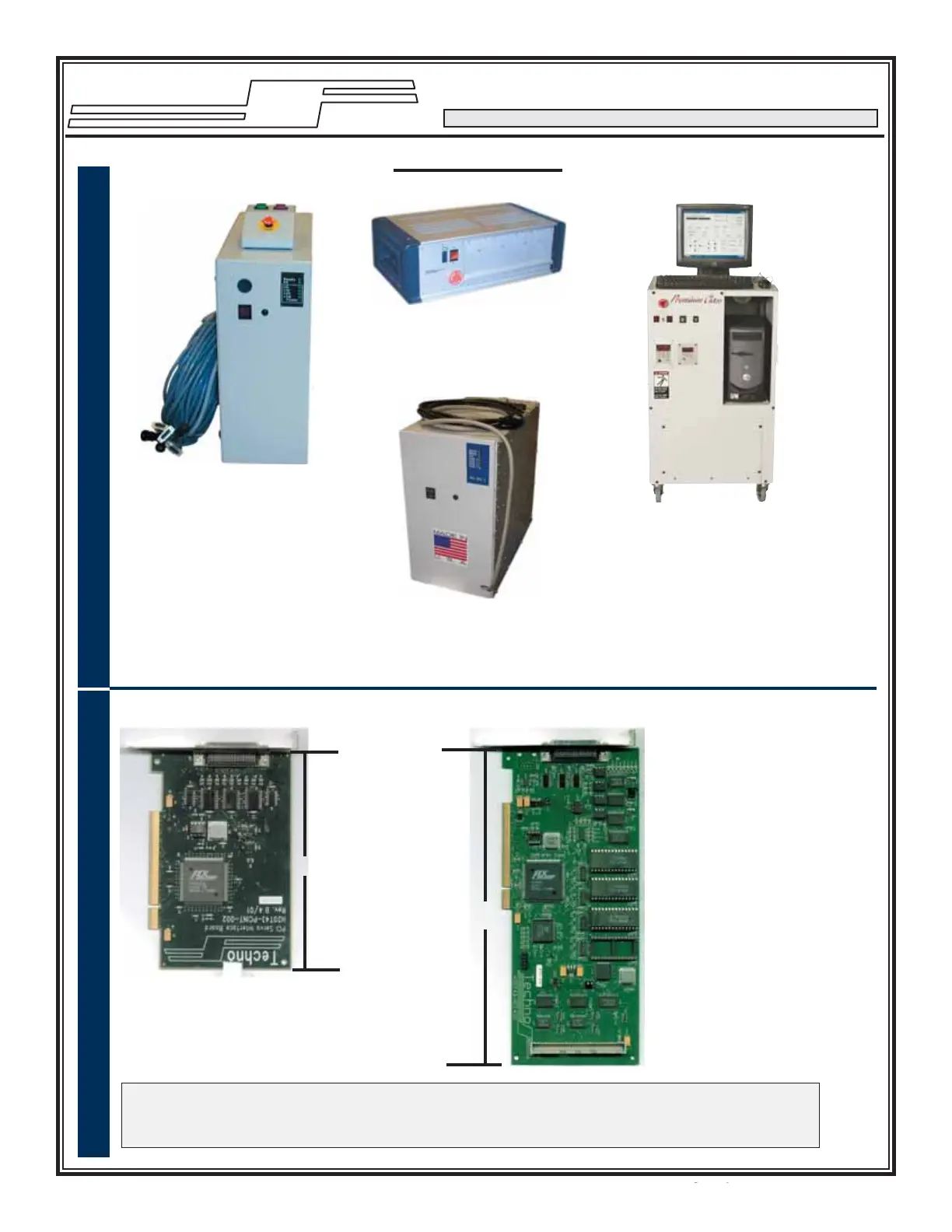

APPENDIX A
PCI CARDS
CONTROL BOXES
NOTE: THE MP ELECTRONICS MAY SHIP WITH GANTRY III SYSTEMS, CHECK ROUTER SPEC. SHEET FOR DETAILS.
PCI Interface Card The PCI Controller Card
This card works with:
· LP(LC) Electronics
· CNC Lathes
· Servo DaVinci
· Gantry III Machines
LP (or “LC) Electronics are stan-
dard on the Servo Lathes (Metal
& Wood), Servo DaVinci’s and
the standard LC Machines (NOT
THE SPEED UPGRADE LC’s!)
They can also be used on Gantry
III Tabletop Series machines and
as a stand alone product.
MP Electronics are sometimes
referred to as Servo Box 2
(H26T56-SRVBOX2).
LP (LC) ELECTRONICS
MP ELECTRONICS
HP ELECTRONICS
CNC CONTROL TOWER
The HP Electronics Box com-
ponents are located within the
Techno CNC Control Tower,
which comes standard with a
Premium Class machine and as
an upgrade for the RG Series
machines.
WARNING: Make sure to match the correct PCI Card with the corresponding Techno Electronics.
Mixing the Interface Card with the MP/HP Electronics, or using the Controller Card with the LP Electronics
may cause damage to the Electronics, the PCI Card and your computer.
9.25’’
5.75’’
This card works with:
· MP Electronics
· HP Electronics:
RG+ Servo Box 3
· Premium Class
Electronics
· LC Speed Upgrades
· RG Machines
· Some Gantry III
Machines
HP Electronics are referred to as
Servo Box 3 or RG+ Servo Box
3 (H26T56-SRVBOX3HR).
