7.1.3. 700WTV VERSION (WELLNESS TV)

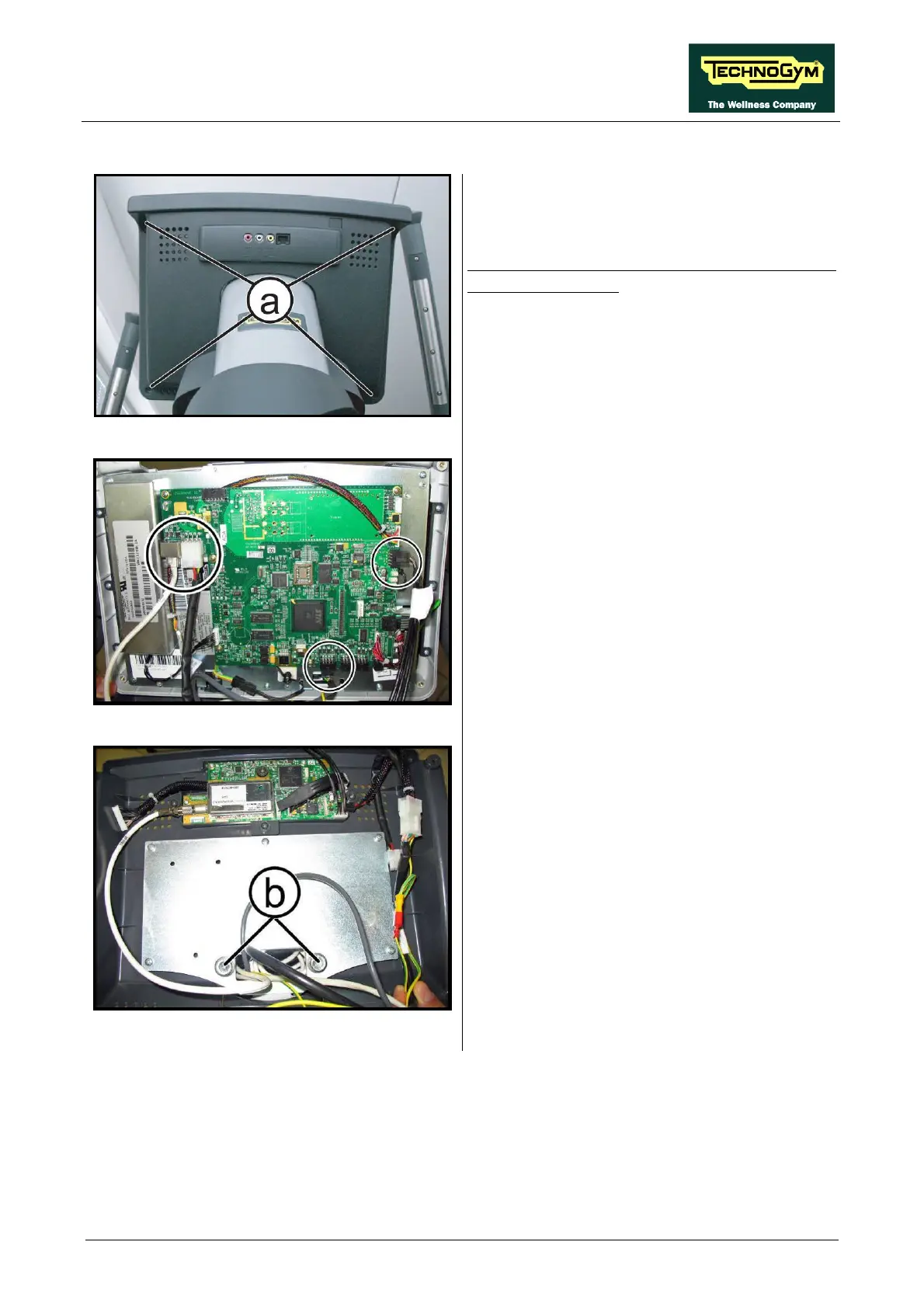

Figure 7.1-7
Turn off the machine and unplug the mains lead
from the wall outlet.
1. Back off the 4 screws (a) using a medium
Phillips screwdriver.
Figure 7.1-8
2. Unplug the connectors as indicated in the
figure at left [CN30-CN26-CN27-CN19-
CN21- CN22-CN25].
3. Remove the display.
Figure 7.1-9
4. Back off the 2 screws (b), using an 8mm Hex
wrench, to remove the rear display support.
To reassemble the display, carry out the above
steps in reverse order.
