E. Position powerside column
La
y down two columns on the installation site paralleled, position the power-side
column according to the actual installation site. Usually, it is suggested to install
power-side column on the front-right side from which vehicles are driven to the lift.
This lift is designed with 2-Section columns. Adjustable height according to the ceiling
height and connecting the inner and extension columns.

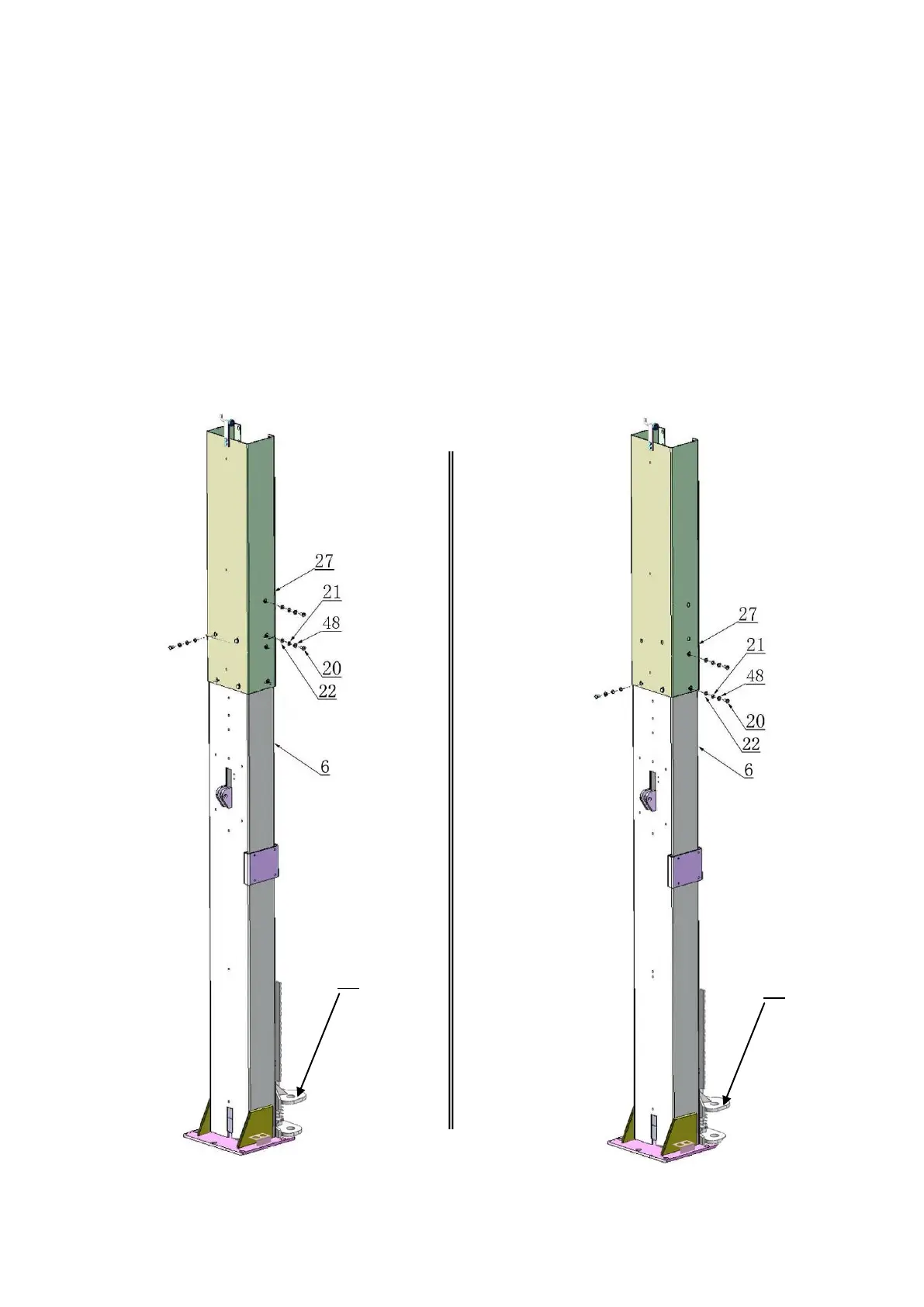

1. W
hen the ceiling height is less than 3850mm (151 1/2”) for 209C, 4460mm (175 5/8”
)
for 209CH, connecting the extension columns with the upper hole
(See Fig.13).
2. When the ceiling height is over 3850mm (151 1/2”) for 209C, 4460mm (175 5/8”) for
209CH, connecting the extension columns with the lower hole
(See Fig.14).
