TECHNOLIFT SL-9 - Position and Anchor Columns

8

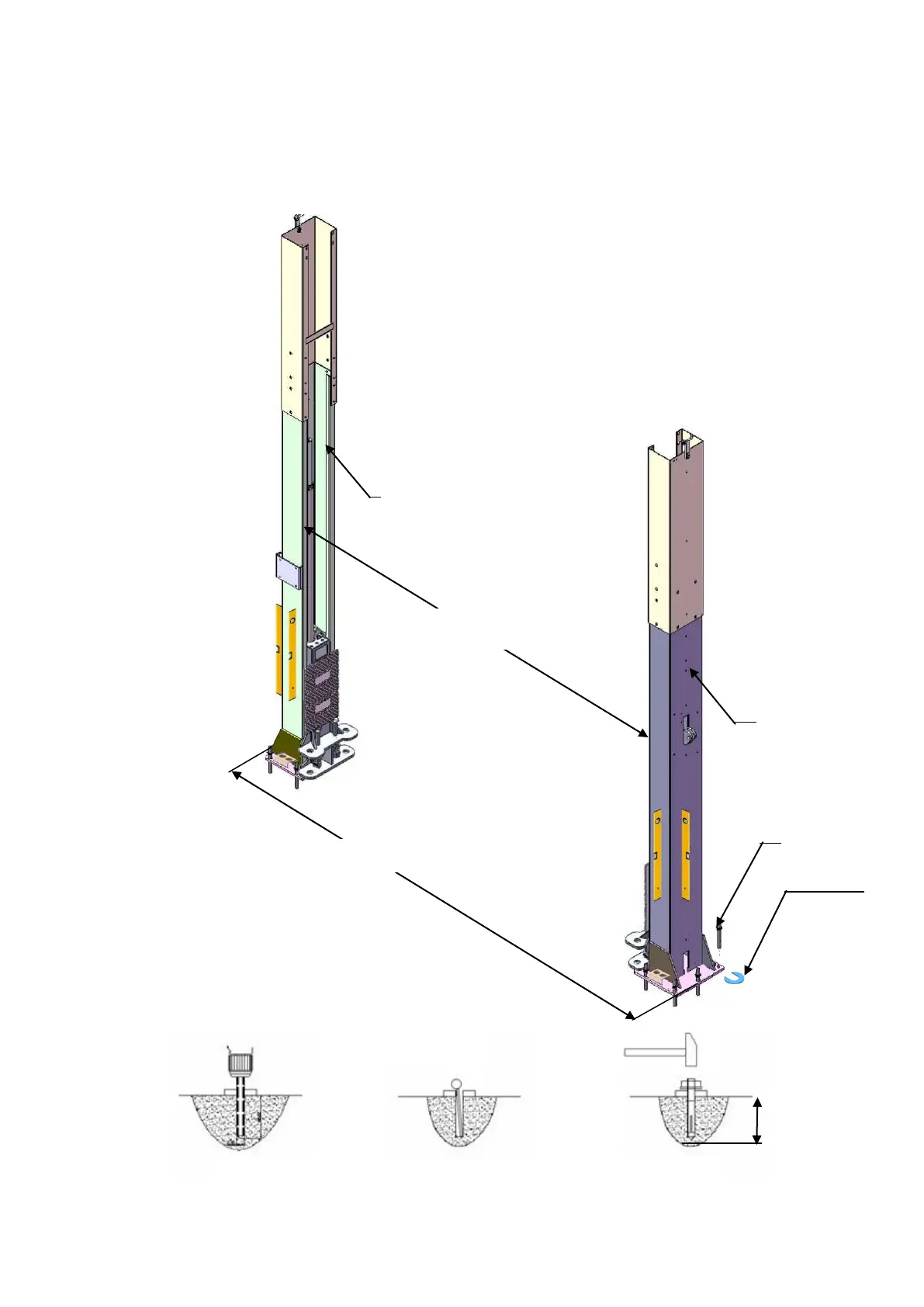

F. Position columns (See Fig. 15)
Position the columns on the installation layout of base-plate, Install the anchor bolts.
Check the Columns plumpness with level bar, and adjusting with the shims if the
columns are not vertical. Do not tighten the Anchor Bolts.
Fig. 15
Drilling
Cleaning
Bolting
6
82
78
Width between Columns: 2850mm
Overall width
：
3428mm
90mm
Note: Minimum embedment of anchors is 90mm.
84A/84B
