TECHNOLIFT SL-9 - Install Oil Hose and Protective Covers

19

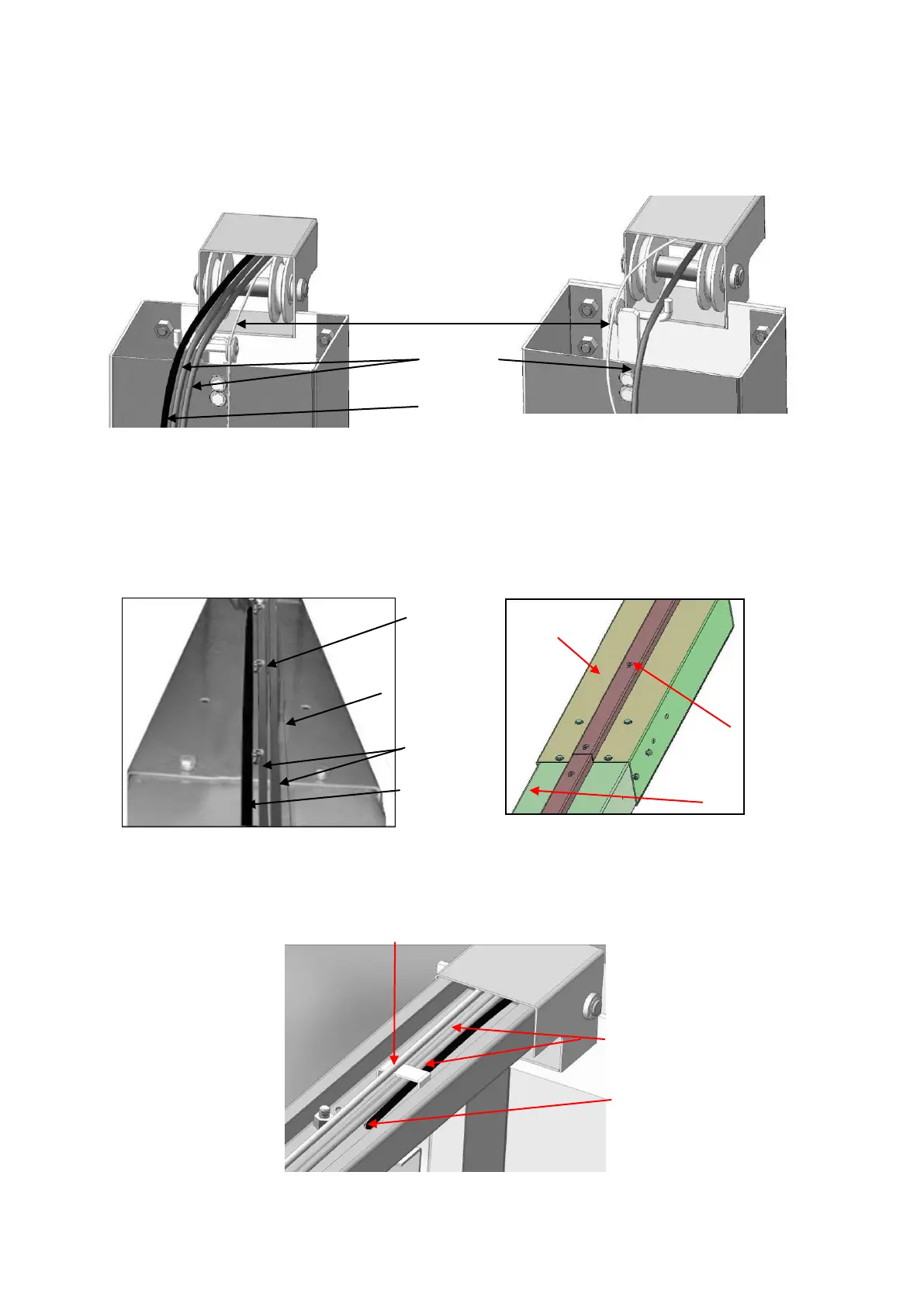

N. Oil Hose & Protective Covers
1. Install Oil Hose.
Note: Don’t cross the oil hose and safety cable together
(See Fig. 27 & Fig. 28).
2. Install safety cable, oil hose and protective cover
(See Fig. 29 & Fig. 30 & Fig. 31).
Note: In
stall the protective cover on the extension column with M6*35 cup head bolt,
Install the protective cover on the inner column with
M6*40 cup head bolt.
Oil Hose
Safety Cable
Wire Cable
Powerside Safety Device
Fig. 27
Offside Safety Device
Fig. 28
Wire cable for
limit switch
The safety cable cannot put inside cable
clamp on top of overhead beam
Before install the wire
protective cover
Fig. 29
Oil hose
Oil hose
protective cover
Wire cable
Safety cable
After install the wire
protective cover
Fig. 30
Fig. 31
Install
with cup
head bolt
Extension column
Inner column
