TECHNOLIFT SL-9 - Install Lifting Arms and Adjust Arm Locks

20

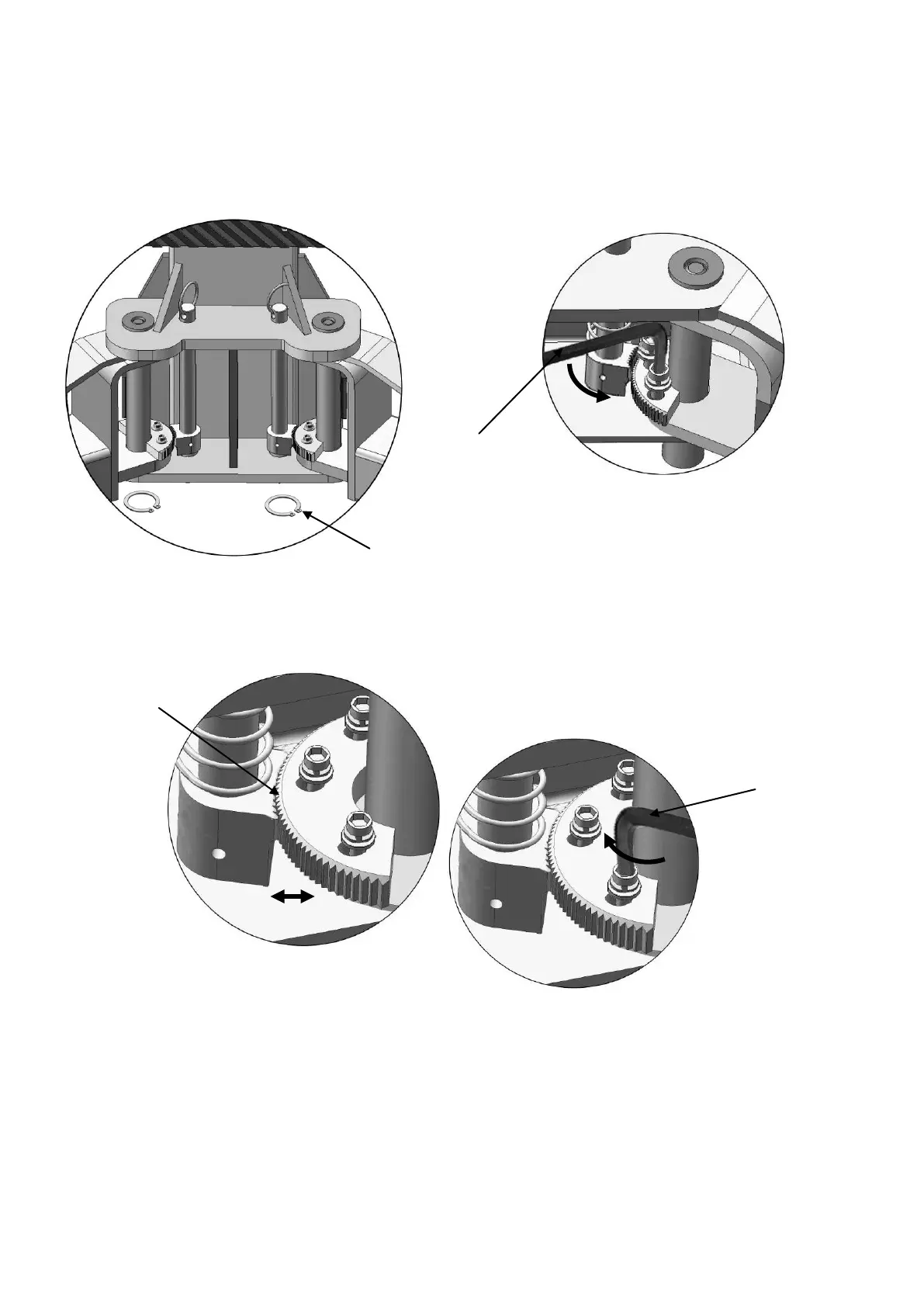

O. Install lifting arms and adjust the arm locks.
1. Install the lifting arms
(See Fig. 32).
2. Lowing the carriages down to the lowest position, then use the 8
#
socket head wrench
to loosen the socket bolt
(See Fig. 33).
3
.
A
djust the arm lock as direction of arrow
(See Fig. 34)
4
.
A
djust moon gear and arm lock to make it to be meshed, then tighten the socket bolts
of arm lock
(See Fig. 35).
Loosen the Bolt
Fig. 32
Use the 8
#
Socket Head Wrench
to loosen the Socket Bolt
F
ig. 33
Moon Gear
Locking the bolts after the moon
gear and arm lock engaged well
Locking the bolt
Fig. 34
Fig. 35
Snap Ring
