l) Secure the front of the UPS to the rack using one M5×12 pan-head screws and
one M5 cage nuts on each side(see Figure 4).Install the bottom screw on each
side through the bottom hole of mounting bracket and the bottom hole of the
rail.
Repeat for any optional cabinets.

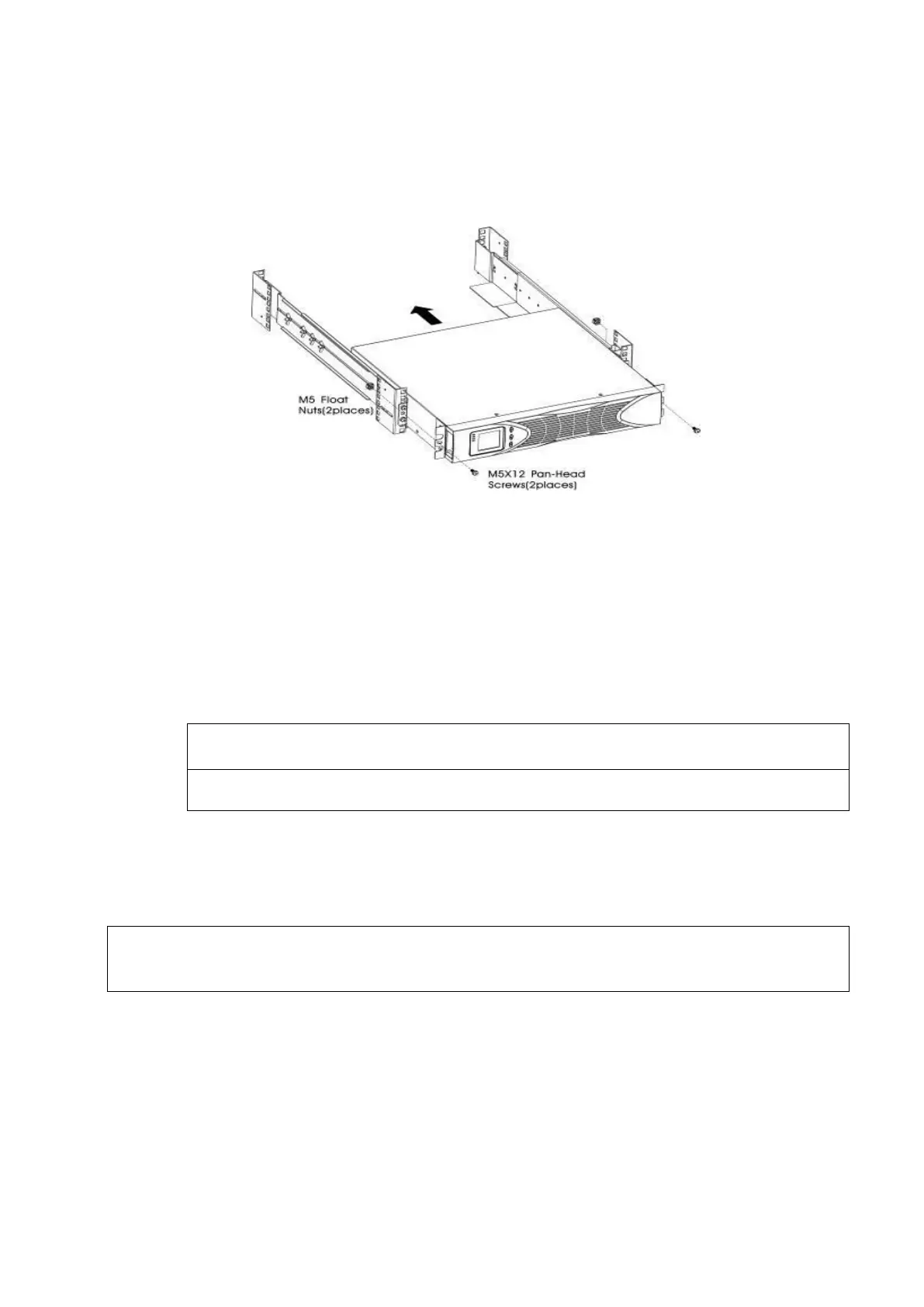

Figure 4 Securing the Front of the Cabinet
m) Continue to the following section, “Rackmount Wiring Installation.
(2)Rackmount Wiring Installation
a) Installing the UPS, including connecting the UPS internal batteries
b) Connecting any Optional EBP(S)
To install the UPS
NOTE Do not make unauthorized changes to the ups; otherwise, damage may
occur to your equipment and void your warranty.
NOTE
Do not connect the ups power cord to utility until after
installation is completed.
a) Remove the front cover of each UPS
Press the cover side with LCD display, hold the other side and quickly extract it,
then extract the other side with display. (see Fig.5)
NOTE A ribbon cable connects the LCD control cover to the UPS. Do not pull on the
cable or disconnect it.
When remove the cover, Operate as the following right Figure shows instead of
the left one. (see Fig.5)
