to extend the wiring to the EBP connector on the second EBP. Repeat for any
additional EBPs.
f) Verify that the EBP connections are tight and the adequate bend radius and strain
relief exist for each cable.

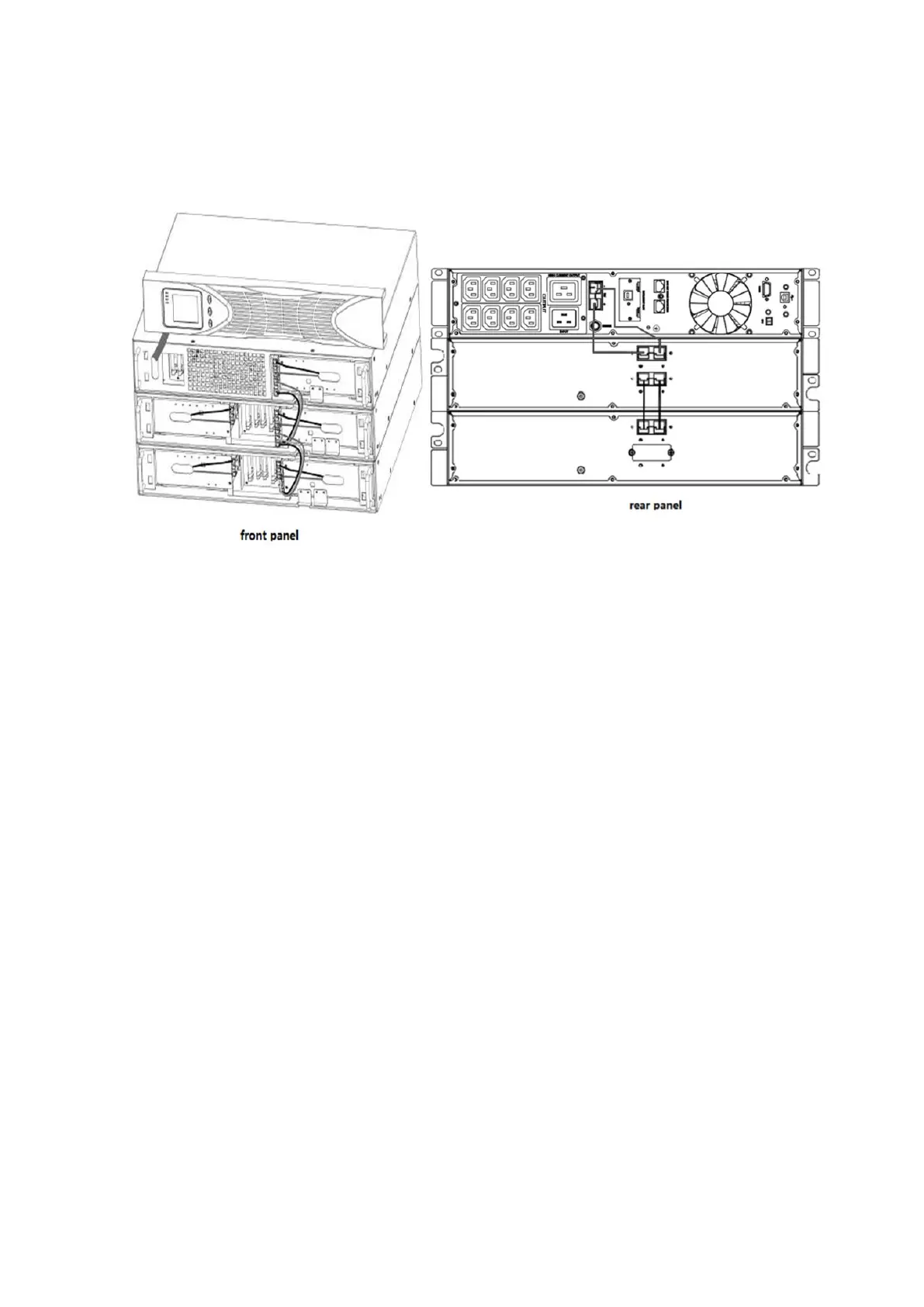

Figure 10 Typical EBP Installation
g) Replace the EBP front cover.
To replace the cover, verify that the EBP cables are routed through the EBP cover
knockouts, cover connects with the cover hook near the left side of the EBP cabinet.
Repeat for each additional EBP.
It is the same with the installation of the front cover. (Refer” to install the UPS”)
h) Verify that all wires connected between the UPS and EBP(s) are installed behind
the front covers and not accessible to users.
i) Return to Step4 to continue the UPS installation.
Rackmount converted to Tower Installation
（1）Rackmount converted to Tower plastic base installation
① Two plastic base brackets
② Flatten it after intercrossing
Intercross as following Figure:
