12

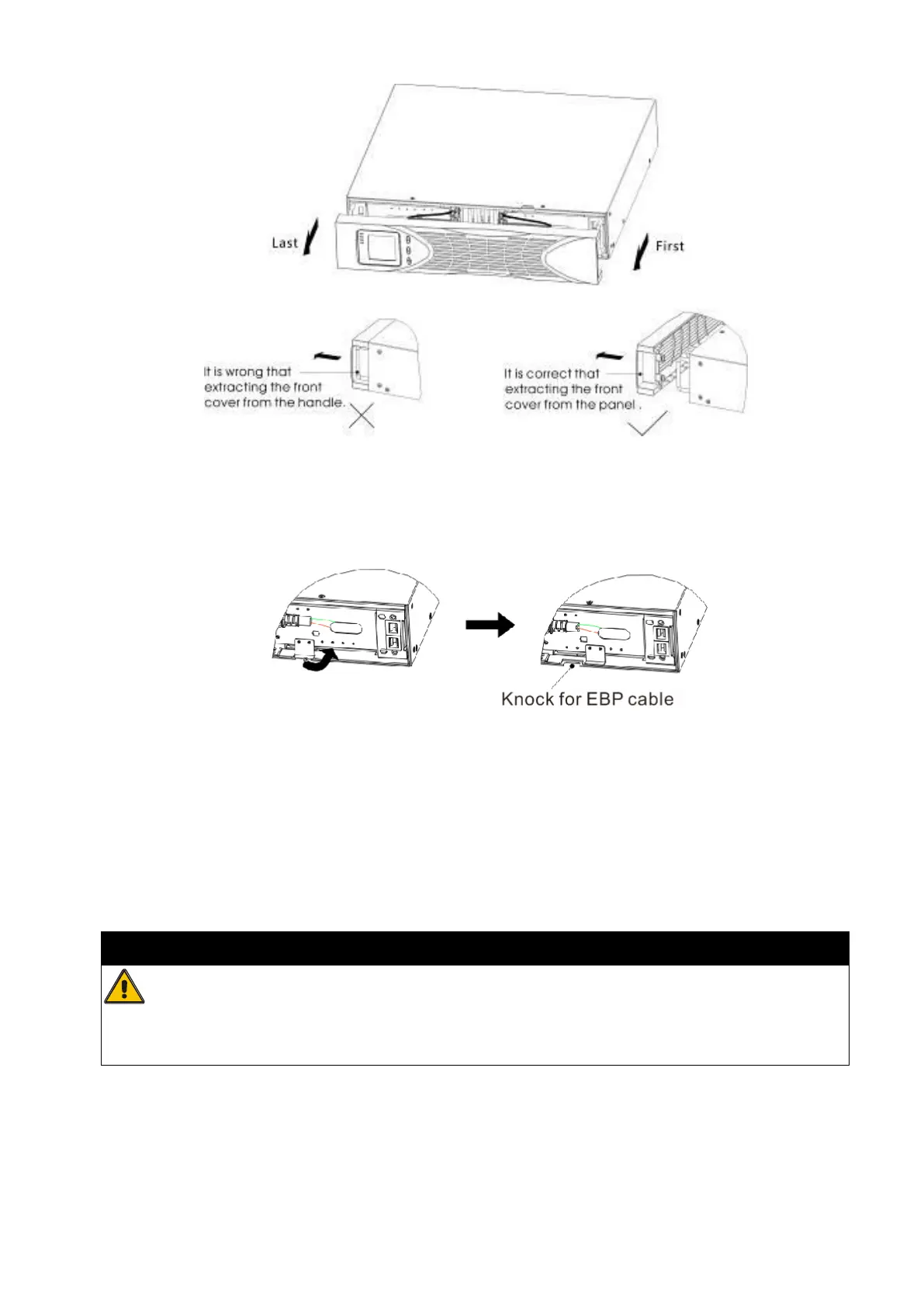

Figure 8 Removing the EBP Front Cover
b) On the bottom of the UPS front cover, remove the EBP cable knockout (see Figure
9).
Figure 9 Removing the UPS Cable Knockout
c) For the bottom (or only) EBP, remove the EBP cable knockout on the top of the
EBP front cover. See Figure 10 for the location of the top EBP cable knockout.
d) If you are installing more than one EBP, for each additional EBP remove the EBP
cable knockout on the top and bottom of the EBP front cover. See Figure 10 for
the location of the EBP cable knockouts.
CAUTION
A small amount of arcing may occur when connecting an EBP to the UPS. This
is normal and will not harm personnel. Insert the EBP cable into the UPS battery
connector quickly and firmly.
e) Plug the EBP cable(s) into the battery connector(s) as shown in Figure 10. Up to
four EBPS may be connected to the UPS. Connect black to black,. Press the
connector tightly together to ensure a proper connection.
To connect a second EBP, unclip the EBP connector on the first EBP and pull gently
To Next Page
