the EBP cable is routed through the knockout on the bottom of the cover.
Put the front cover hooks of side with display to the cover port, put another side to the
other two ports, then press it until the cover and the chassis are combined tightly.

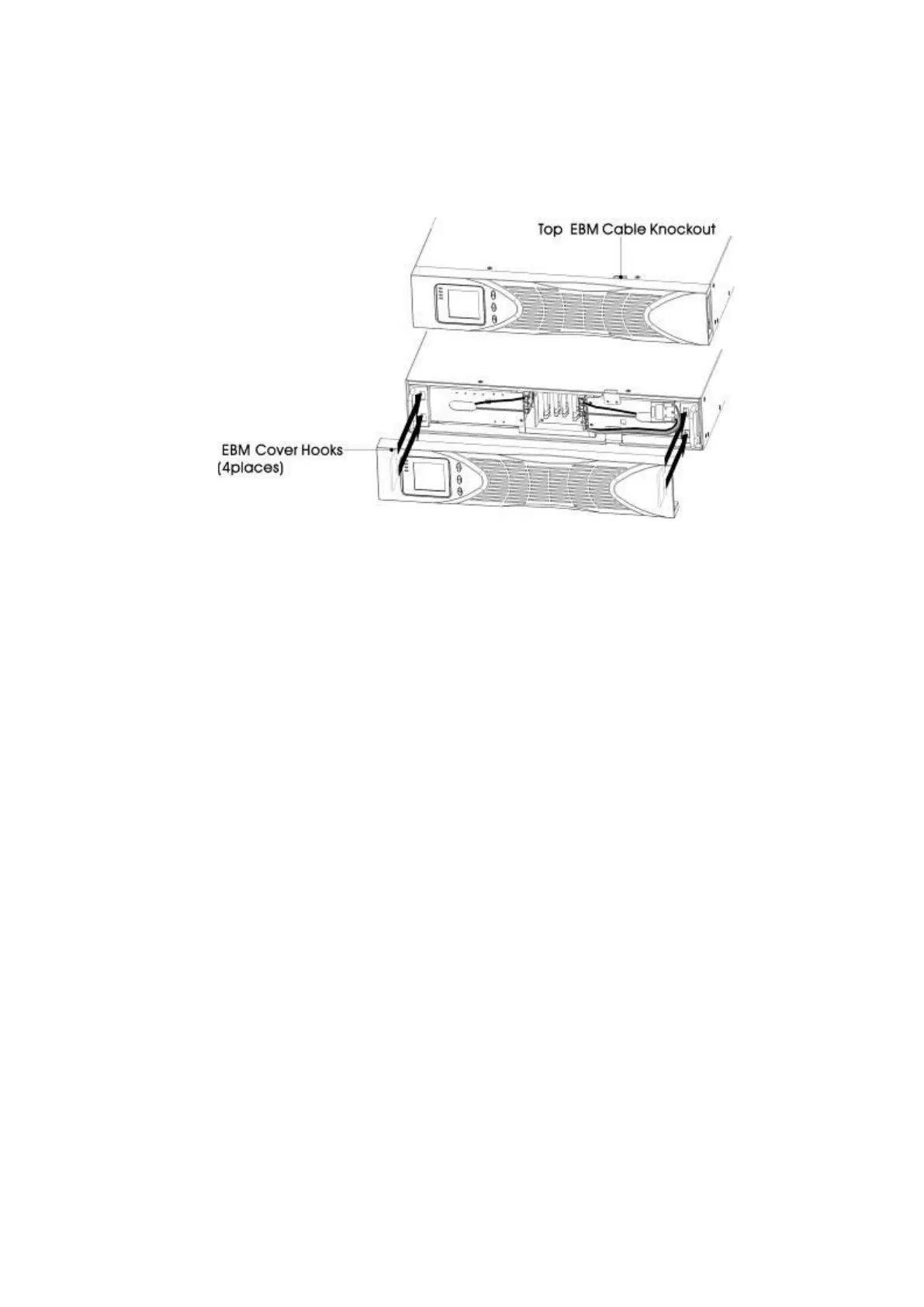

Figure 7
e) If you are installing power management software, connect your computer to
one of the communication ports or optional connectivity card. For the
communication ports, use an appropriate cable.
f) If your rack has conductors for grounding or bonding of ungrounded metal
parts, connect the ground cable (not supplied) to the ground bonding screw.
See “Rear Covers” for the location of the ground bonding screw for each
model.
g) If an emergency power-off (disconnect) switch is required by local codes, see
“Remote Emergency Power-off” (REPO) to install the REPO switch before
powering on the UPS.
h) Continue to “UPS Start up”.
Connecting the EBP(s)
(1) To install the optional EBP(s) for a UPS
a) Remove the front cover of each EBP and UPS (see Figure 8).
It is the same with the installation of the front cover. (Refer” To install the UPS “)
