LED INDICATING CONNECTION STATUS
STATUS LEDS
USING THE 1166 UHF READER

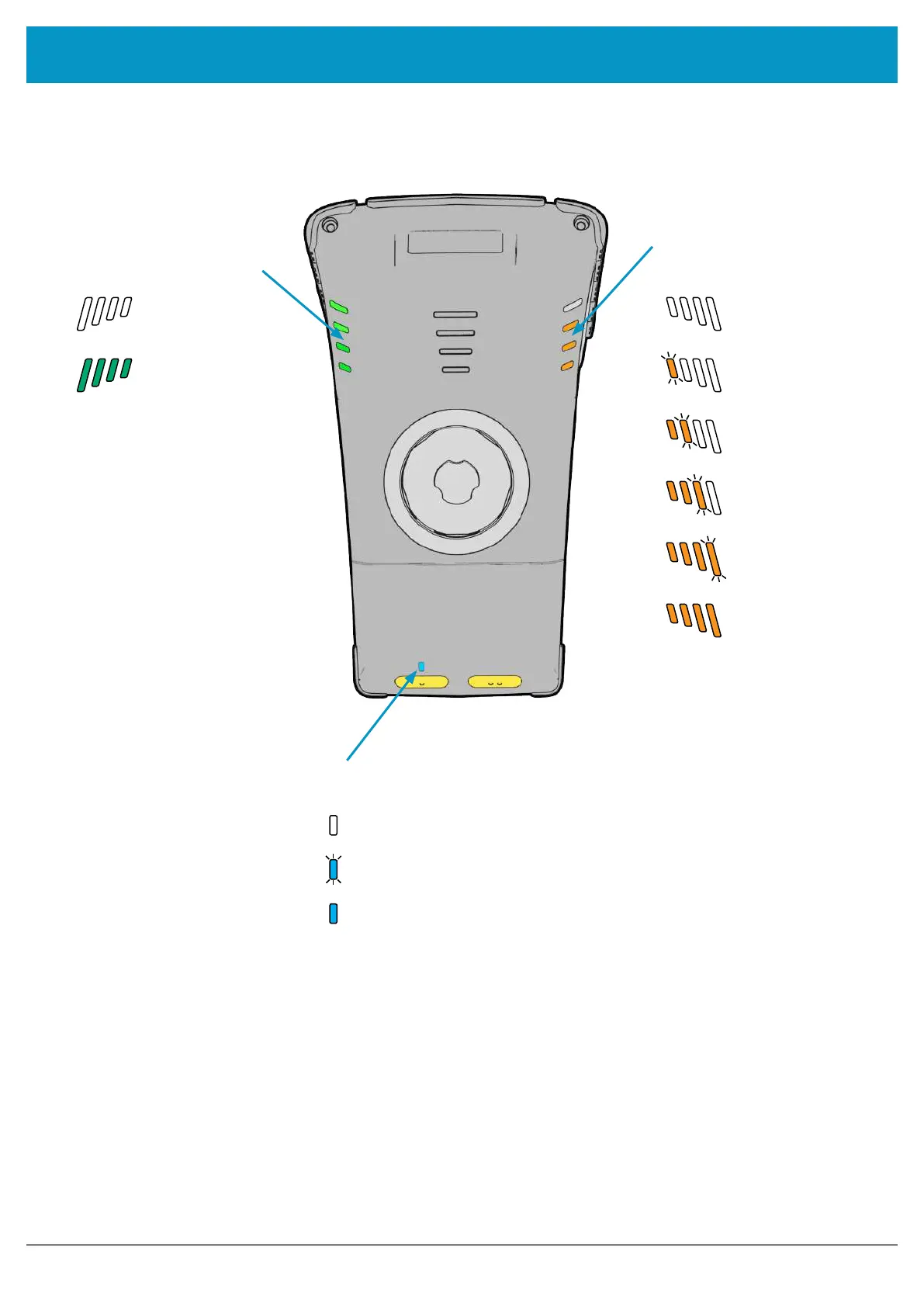

Figure 7: Location of Status LEDs
LEDS INDICATING
CHARGING STATUS
LEDS INDICATING TAG/
BARCODE READ
Battery Charging, battery level
less than 25%
Battery Charging, battery level
between 75 and 99%
Battery Charging, battery level
between 25 and 50%
Battery Charging, battery level
between 50 and 75%
Battery Fully Charged
All off - Not Charging
Off - The reader is not awake
Flashing - Reader is awake but there is no connection
On - Reader is awake and connected to a host
Tag/barcode
successfully read
All off - nothing read
