TECHTOP TD20 Series - Page 25

TD20 Series VFD Keypad Operation Procedure
-23-
4.3.3 How to watch the VFD state through function codes
TD20 series VFDs provide group P17 as the state inspection group. Users can enter into P17 directly to
watch the state.
PRC
ESC
PRC
ESC
DATA
ENT
PRC
ESC
DATA
ENT
The units place is blinking. All digits are blinking. The units place is blinking.
The units place is blinking.
Note: When setting the value, you can press and + to modify the value.
»
SHIFT
PRC
ESC
PRC
ESC
The units place is blinking. The units place is blinking.

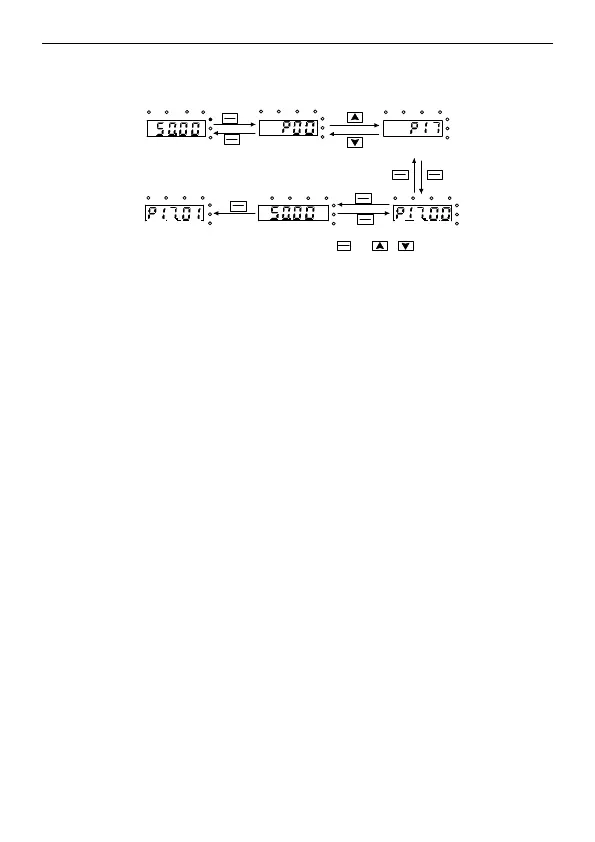

Figure 4-5 Sketch map of state watching
