TD20 Series VFD Function Parameters
-31-
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
Setting range: 0.0–50.0s
P01.03
The braking
current before
starting
The VFD will carry out DC braking at the braking current
set before starting and it will speed up after the DC
braking time. If the DC braking time is set to 0, the DC
braking is invalid.
The stronger the braking current, the bigger the braking
power. The DC braking current before starting means
the percentage of the rated current of the VFD.
The setting range of P01.03: 0.0–100.0%
The setting range of P01.04: 0.00–50.00s
0.0%
◎
P01.04
The braking
time before
starting
0.00s
◎
P01.05
ACC/DEC
selection

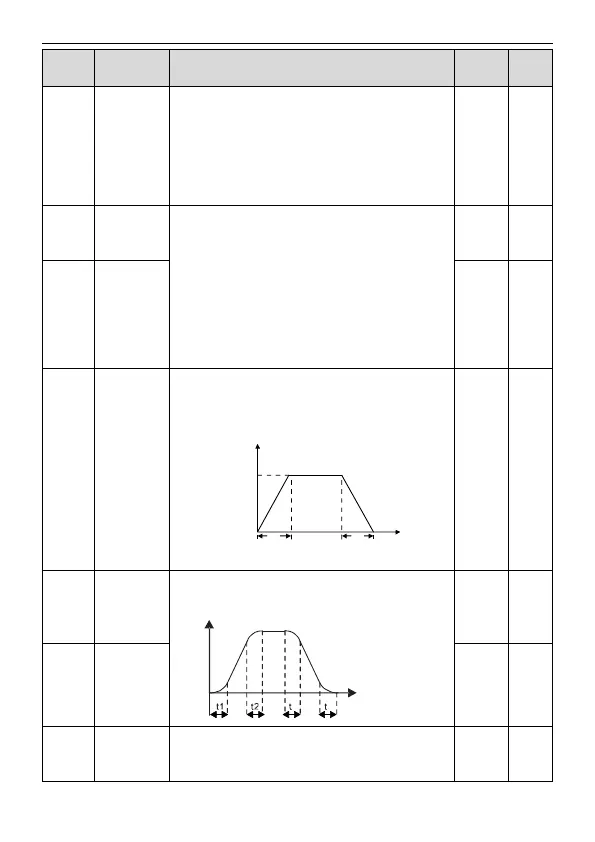

The changing mode of the frequency during start-up and
running.
0: Linear type
The output frequency increases or decreases linearly.
fmax
Output frequency
t1 t2
T
1: S curve
0
◎
P01.06
ACC time of
the starting
step of S
curve
0.0–50.0s
3
4
t1=P01.06
t2=P01.07
t3=P01.06
t4=P01.07
Output frequency
T
0.1s
◎
P01.07
DEC time of
the ending
step of S
curve
0.1s
◎
P01.08
Stop selection
0: Decelerate to stop: after the stop command becomes
valid, the VFD decelerates to reduce the output
frequency during the set time. When the frequency
0
○
