TECHTOP TD20 Series - P09 Group PID control

TD20 Series VFD Function Parameters
-63-
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
from the highest point to the lowest one.
Setting range of P08.15: 0.0–100.0%
(relative to the set frequency)
Setting range of P08.16: 0.0–50.0%
(relative to the traverse range)
Setting range of P08.17: 0.1–3600.0s
Setting range of P08.18: 0.1–3600.0s
P08.25
Set count
value
The counter works based on the input pulse signals of
the HDI terminals.
When the count value reaches the specified number, the
multi-function output terminal sends the signal of "The
specified count value is reached" and the counter
continues to count; when the count value reaches the
set number, the multi-function output terminal sends the
signal of "The set count value is reached", and the
counter will be reset to zero and recount when the next
pulse occurs.
The value of P08.26 cannot be greater than that of
P08.25.

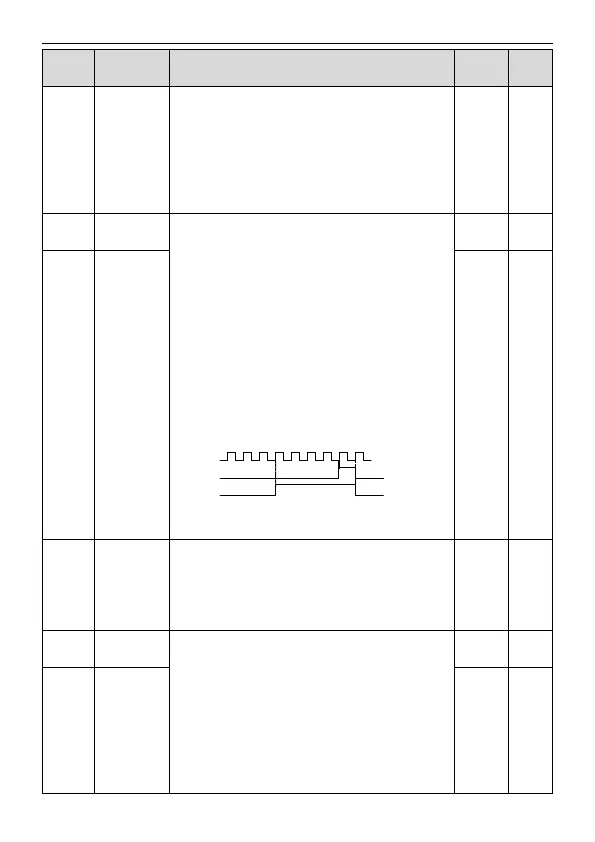

The function is illustrated as below:
RO1, RO2
S terminal
The set count
value is reached.
The specified count
value is reached.
Setting range of P08.25: P08.26–65535
Setting range of P08.26: 0–P08.25
0
○
P08.26
Specified
count value
0
○
P08.27
Setting
running time
Pre-set running time of the VFD. When the accumulative
running time achieves the set time, the multi-function
digital output terminals will output the signal of "running
time arrival".
Setting range: 0–65535min
0m
○
P08.28
Time of fault
reset
The time of the fault reset: set the fault reset time by
selecting this function. If the reset time exceeds this set
value, the VFD will stop for the fault and wait to be
repaired.
The interval time of the fault reset: The interval between
the time when the fault occurs and the time when the
reset action occurs.
Setting range of P08.28: 0–10
Setting range of P08.29: 0.1–100.0s
0
○
P08.29
Interval time of
automatic fault
reset
1.0s
○
