Tecma Nano Owner’s & Installation Manual
4
www.thetfordmarine.com

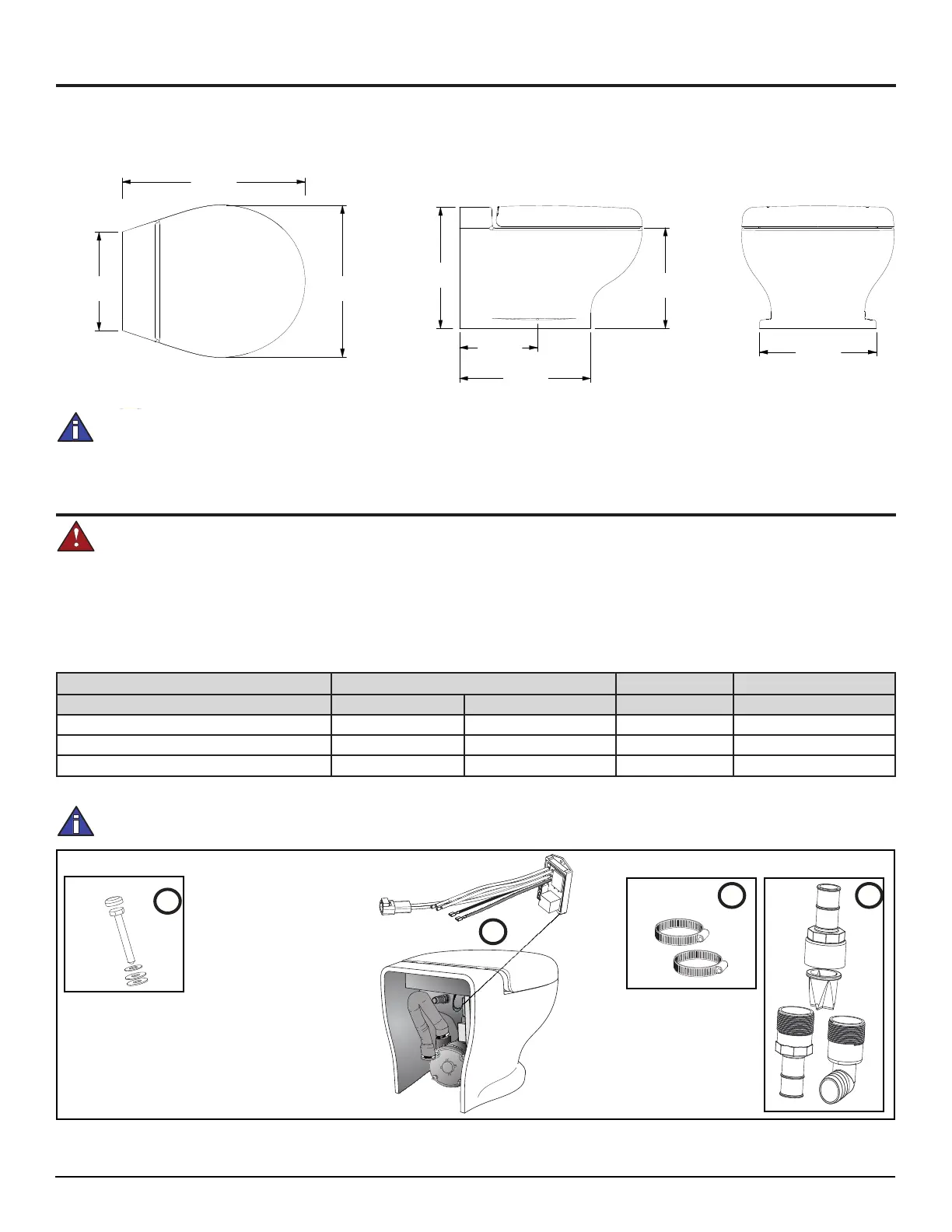

Dimensions
Weight : 37,5 lbs.
Fig. A
Electrical System
Wire Gauge Size Chart
If Wire Gauge for distance from source* is: 0-20 feet 20-32 Feet 33-50 feet Circuit Breaker
12 VOLTS - Install 10 Gauge 8 Gauge 6 Gauge 30 amp
24 VOLTS - Install 16 Gauge 14 Gauge 12 Gauge 30 amp
* Distance measured assumes power and ground wires
Note: Ceramic base dimensions may vary slightly in size.
■ All circuits must follow ABYC/ISO standards.
■ Wire gauge sizes must follow Wire Gauge Size Chart.
■ Every toilet must have its own circuit breaker or fuse.
■ Always use crimp-style connectors with Sealing provisions to avoid corrosion.
DANGER! FIRE HAZARD:
Failure to use ABYC/ISO recommended circuit breakers or fuses can result in re!
Fig. B
Note: To install the Tecma Nano toilet, you MUST have the toilet and one of the Harness Kits pictured below!
(1x)
4
Fig. C
ART00198-1a
ART00198
(2x) 1/4” 10 x 2.5”
2
(2x) 1-1/4” x 2
3
1
To Next Page
