Tecma Nano ECO - Installation Options; Fresh Water Installation Method; Raw Water Installation (Above Sea Level); Raw Water Installation (Below Sea Level)

Tecma Nano Owner’s & Installation Manual
8
www.thetfordmarine.com

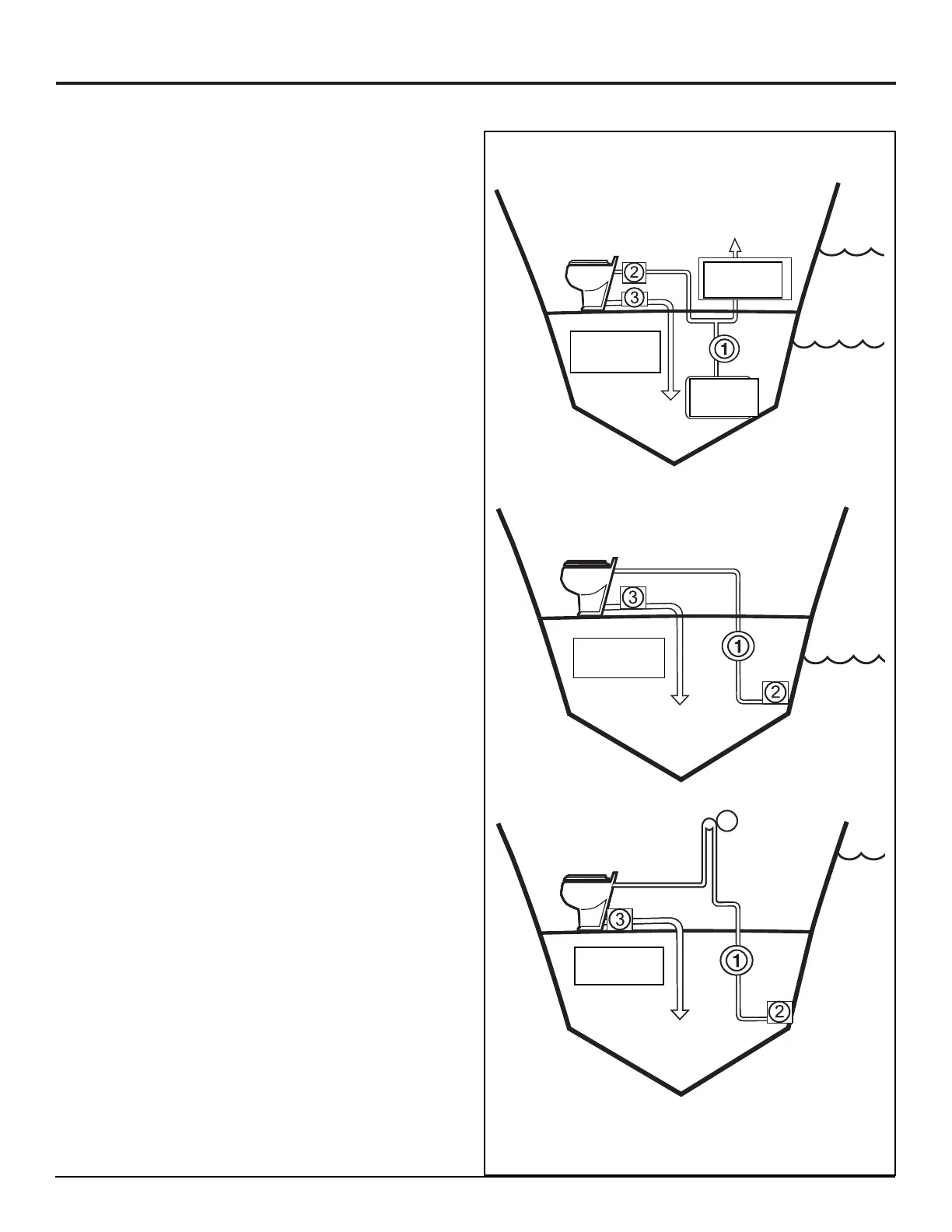

Installation Options
■ INSTALLATION C:
RAW WATER PUMP - Toilet BELOW SEA LEVEL
1. Raw Water Pump
2. Filter or Strainer
3. Lower Discharge Check Valve
4. Vented Loop (minimum 3/4” diameter)
4
ART00200-1
SEA LEVEL
To Holding Tank
A
ART00199
To other toilets/
valves
SEA LEVEL
Fresh Water
Tank
To Holding Tank
ART00200
SEA LEVEL
To Holding Tank
B
Choose the method that best ts your
installation needs:
■ INSTALLATION A:
FRESH WATER - Single or Multiple Toilets
1. Automatic Fresh Water Pressure Pump
2. Marine Electric Solenoid Valve electronically controlled by toilet
3. Lower Discharge Check Valve
Fig. G
■ INSTALLATION B:
RAW WATER PUMP - Toilet ABOVE SEA LEVEL
1. Raw Water Pump
2. Filter or Strainer
3. Lower Discharge Check Valve
C
