PROVASET T3LPF REV.20210610
22

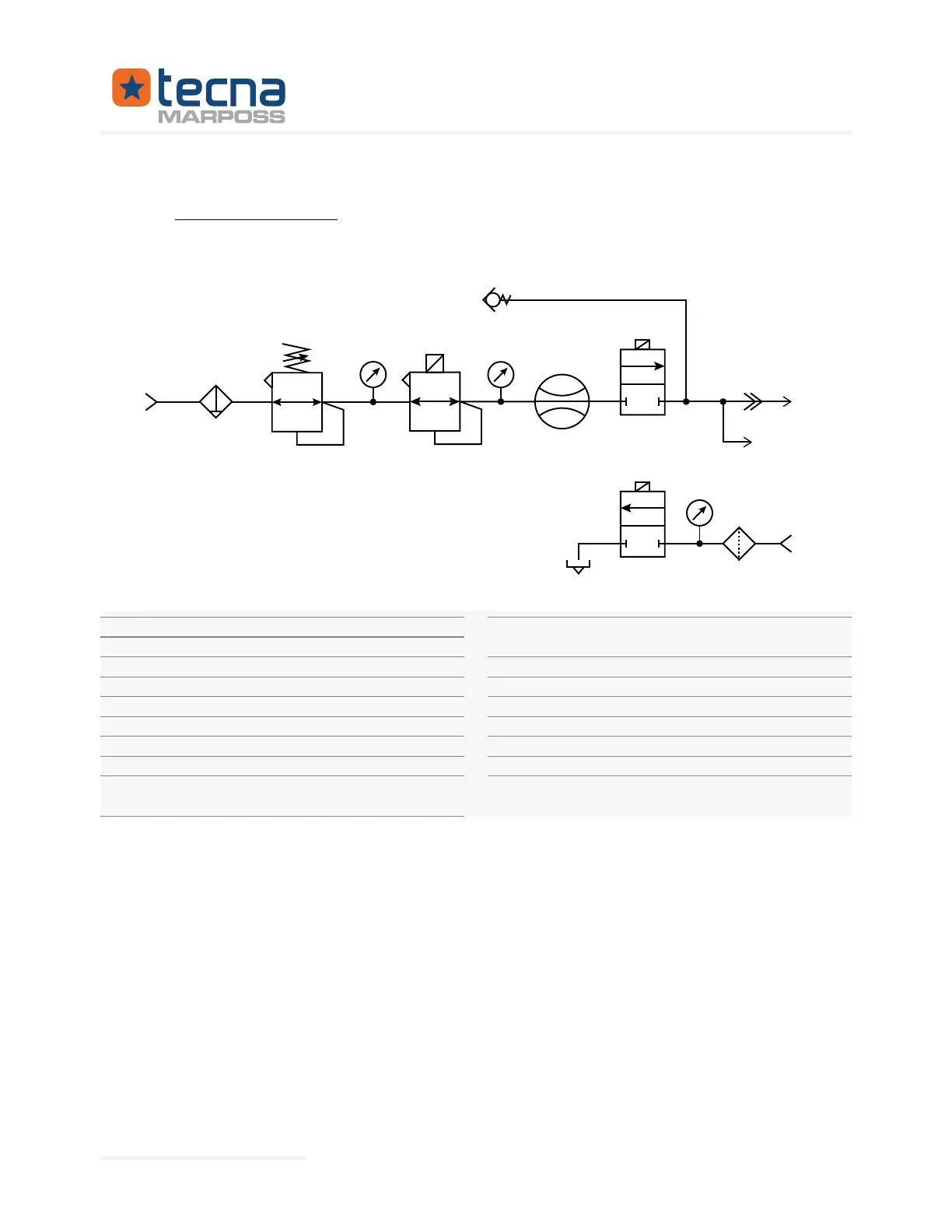

3.11 Pneumatic diagram
 Compressed air supply
 
 Input regulator
 Input pressure gauge
RPv Test pressure regulator
Pv Regulated pressure
 Flow sensor
V1 Internal valve
TEST Output connection to the test cir-
cuit
TP Connection for reading the internal
test pressure, on the TEST output
 Master leak connection
V2 Internal valve
PR Test pressure
 
S Discharge connection
P Pressure reading connection
Ain
AF1
5
RPin
Pin
RPv
Pv
FC
SF
S
Staubli RBE03
TEST
TP
V1
V2
PR
AF2
P

Connection to the compressed air supply, quick connector for 6x4 mm pipe, max
pressure 10 bar, min pressure 3 bar.




be adjusted to at least 1 bar above the full scale pressure of the equipment, with a
minimum of 3 bar.
