• START input test (high active signal)
• : START input test (low active signal)
• STOP input test in progress (high active signal)
• STOP input test in progress (low active signal)
• alternating START/STOP input
•
• double safety start, input A
• double safety start, input B
• : the instrument before starting a test is waiting for a consensus
signal
• emergency lock (reverse, 0=emergency)
• manual pressure discharge control
• input = 0 the programs are enabled; input = 1 the prod-
ucts are enabled
• select test table, bit 0
• select test table, bit 1
• select test table, bit 2
• select test table, bit 3
• select test table, bit 4
• select test table, bit 5
• limit switch FC1 closed position
• limit switch FC2 open position
• limit switch FC1 closed position
• limit switch FC2 open position
• (Option) Print labels
•
•

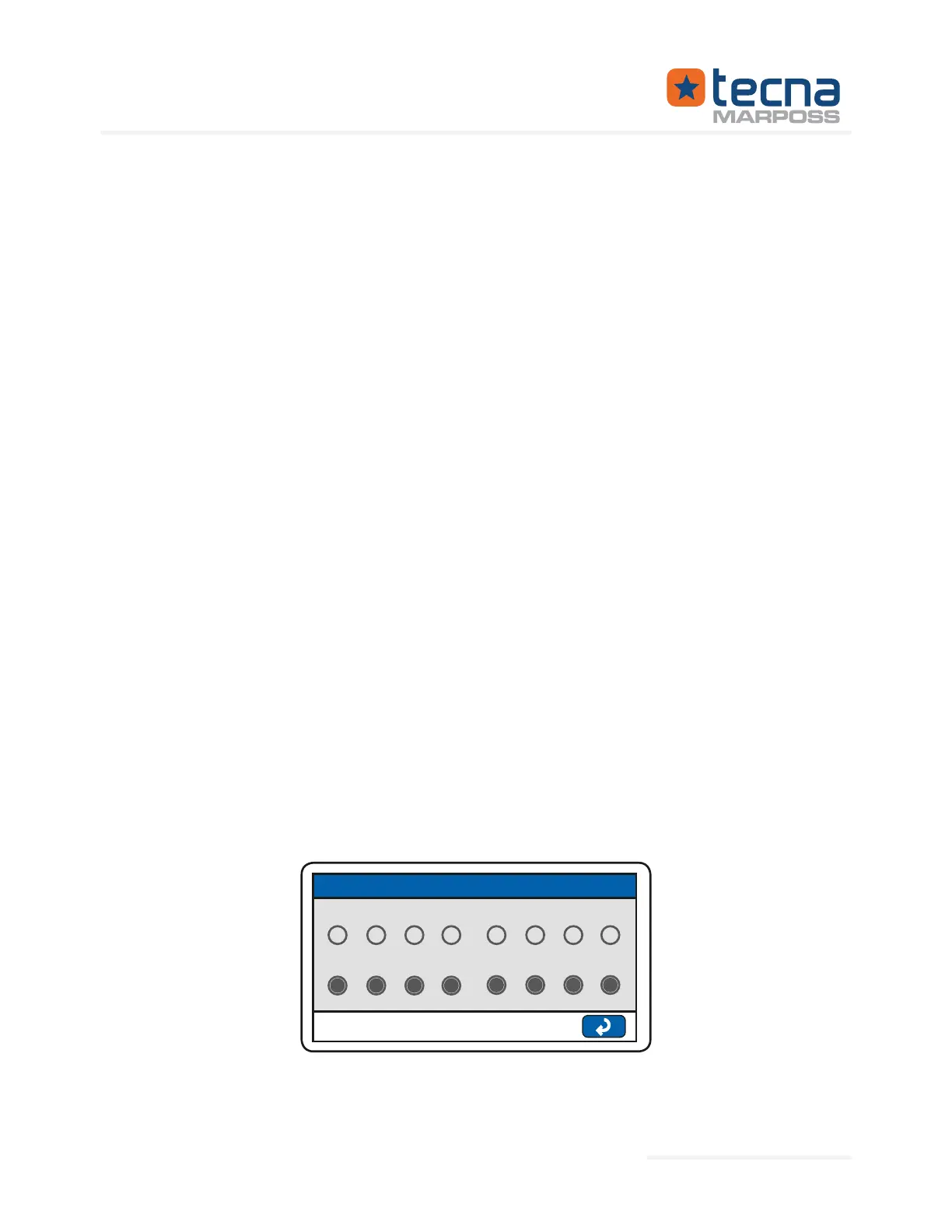

Selecting the test function opens a page that displays the status of the inputs, as in
the base menu.
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
TEST INPUTS
