5. The pressure measured by the digital reference pressure gauge must be equal
to the value programmed in the "P. Sample" parameter indicated on the menu
page;
6. Adjust the pressure or change the parameter "P. Sample" as necessary to make
them equal;
7. -
sure reading on the digital pressure gauge is equal to the value programmed
in the parameter "P. Sample";
8. Press the Down Arrow key to continue to the next step;
9. For each calibration step, the reference pressure value ("P. Sample” parameter)
must be greater than the previous step, increasing the pressure at each step,
from zero to full scale;
10. The calibration procedure ends only after 10 steps or by programming the pa-
rameter "P. Sample" to zero as the last calibration step.
To avoid damage to the pressure transducer, never exceed the instru-
ment's full-scale pressure rating.
A maximum overpressure of 10% is permitted.
11.2 Flow sensor calibration

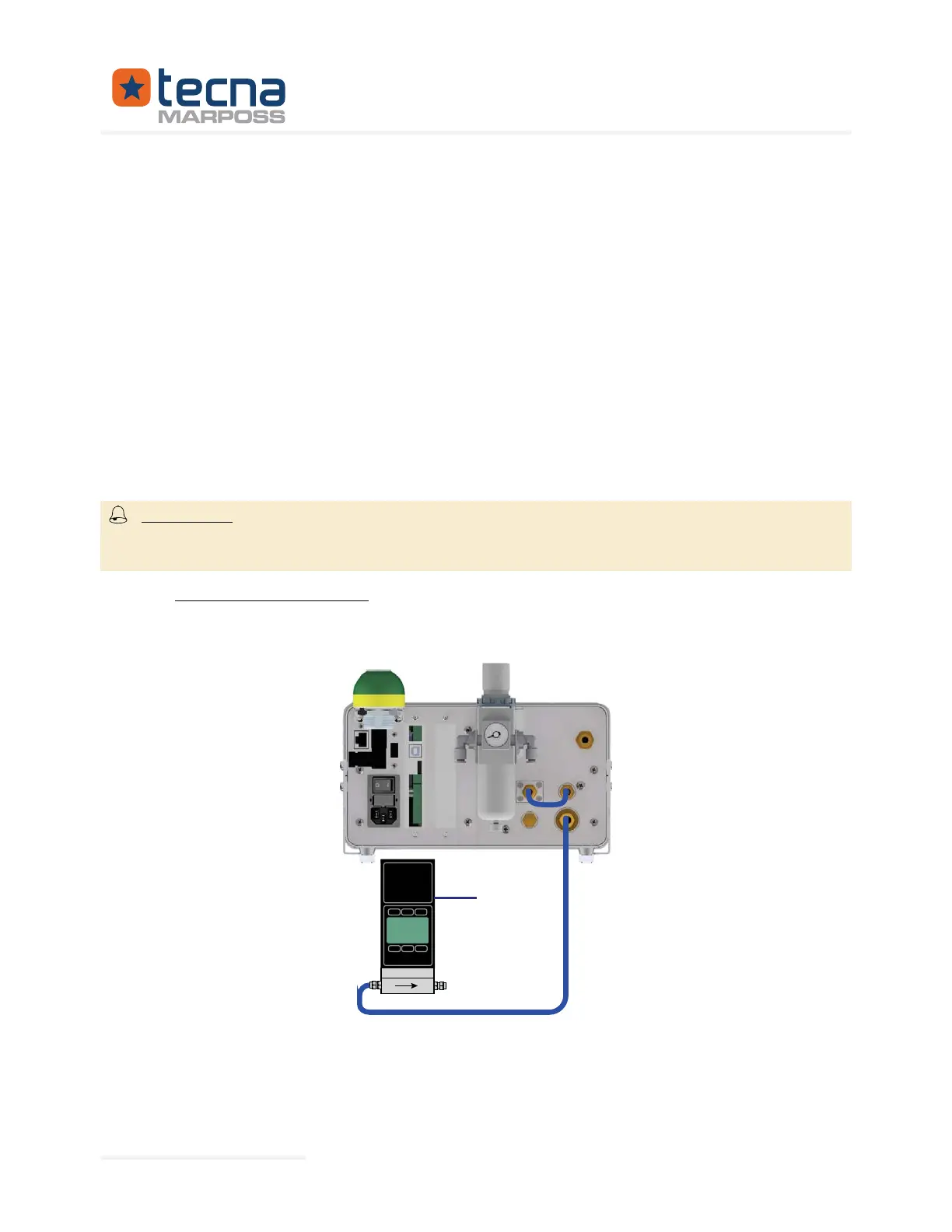

TEST
A
Proceed as follows for the adjustment:
1. Switch on the equipment and wait at least 10 minutes for the readings to sta-
bilize.
