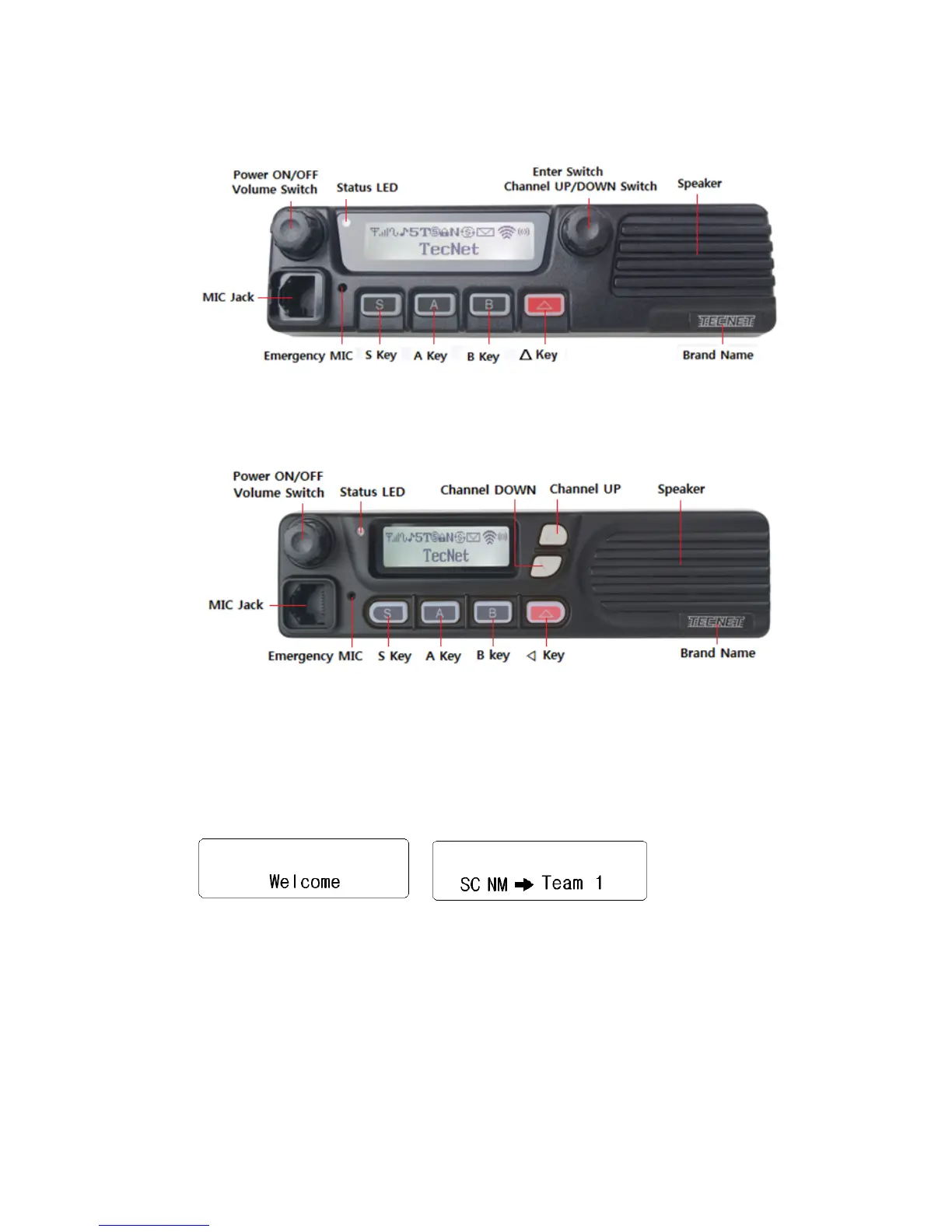

Figure 5-1) TM-8102 / TM-8402 Front panel
Figure 5-2) TM-8104 / TM-8404 Front panel
Power ON/OFF Volume switch
Press and hold the knob over 2 seconds to turn the mobile radio on and off.
Rotate to adjust the volume level from 1 to 16. Turn it clockwise to increases the volume
and counterclockwise to decreases the volume.
When the knob is pushed less 2 seconds, Squelch can be changed.
Display
It is a 125x 36 Graphic type. Each icon indicates related operation.
To Next Page
