Electric Ovens rev. 15_____________________________________________________________________DIGITAL LINE
________________________________________________________________________________________ page. 17

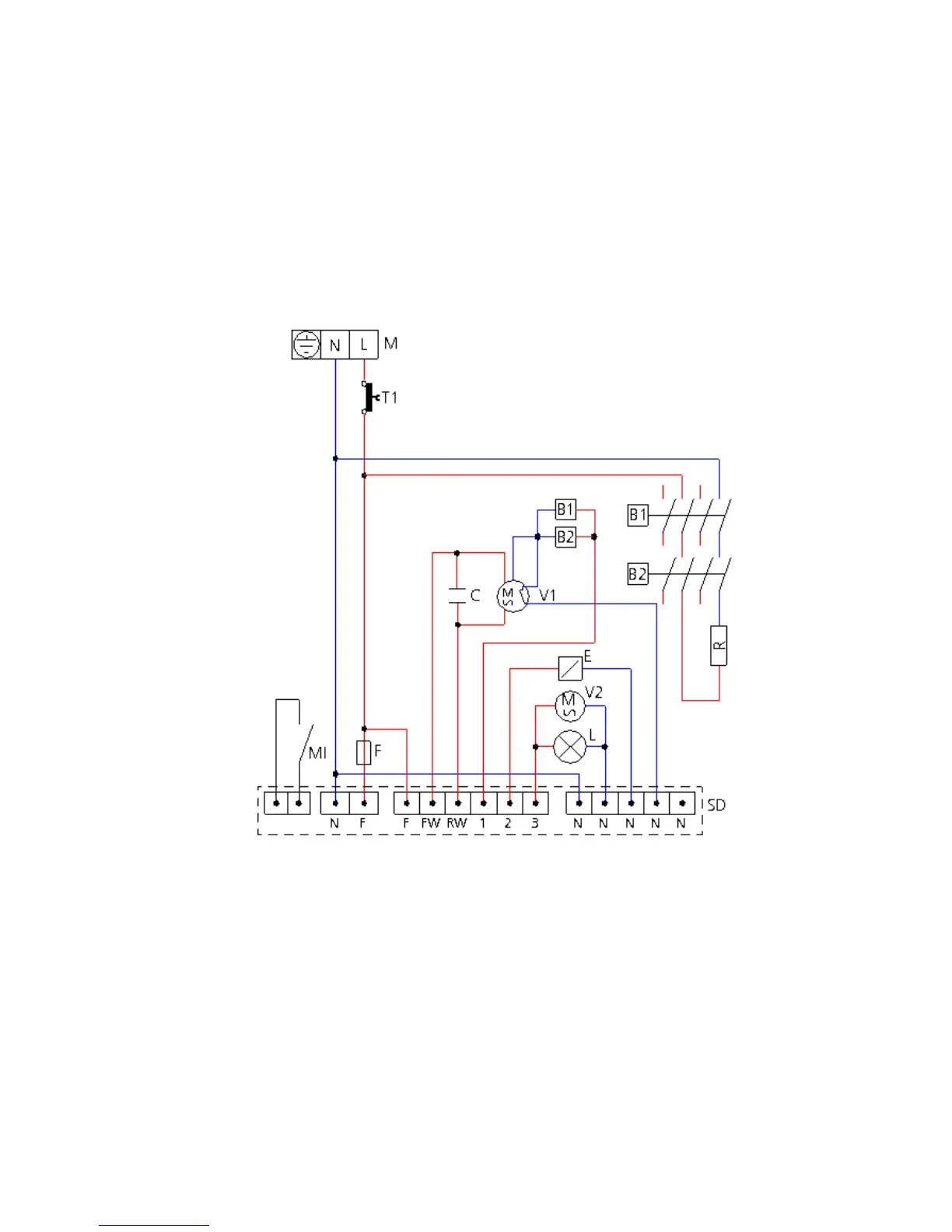

MODD. EKF 311 D UD – EKF 364 D UD
Key
M Power terminal board
T1 Safety thermostat
SD Electronic card
MI Door microswitch
F Fuse
E Humidifier solenoid-valve
B1-B2 Contactor coils
R Circular heating-element
V1 Oven motorised ventilator
V2 Tangential motorised ventilator
C Capacitor
L Oven lighting lamp
