TECNOEKA EKF423DUD - Page 18

TECNOEKA Srl ______________________________________________________________ use and instruction manual
page. 18 ________________________________________________________________________________________
MODD. EKF 411 D UD – EKF 416 D UD – EKF 464 D UD
EKF 464 D UD/001- EKF464DUD/0/037 – EKF 411 DUD/0/037
EKF 411 D AL UD - EKF 416 D AL UD - EKF 464 D AL UD
EKF 464 DALUD/0/037

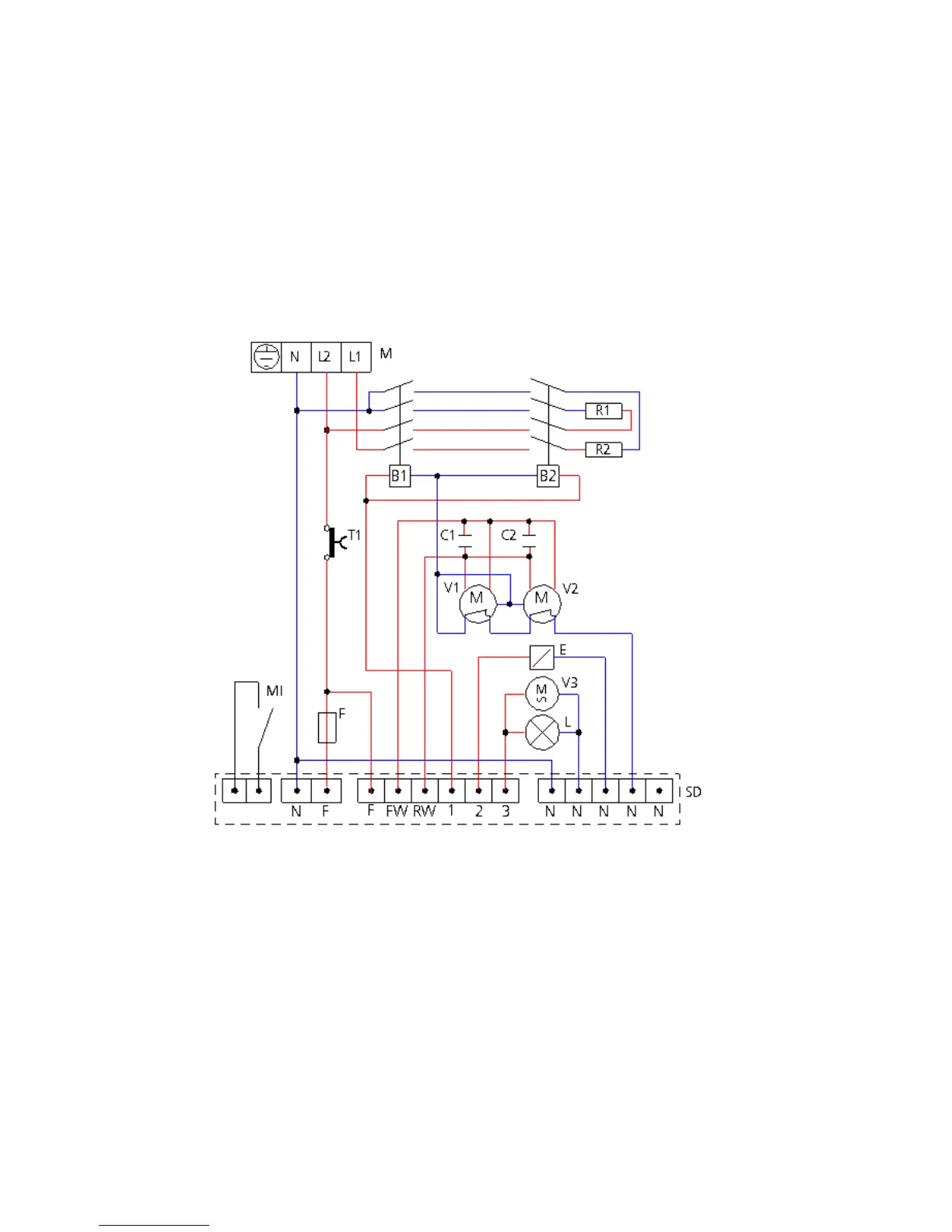

Key
M Power terminal board
T1 Safety thermostat
SD Electronic card
MI Door microswitch
E Humidifier solenoid-valve
F Fuse
B1-B2 Contactor coils
R1-R2 Circular heating-element
V1-V2 Oven motorised ventilator
V3 Tangential motorised ventilator
C1-C2 Capacitor
L Oven lighting lamp
