Tecnologic TLZ 11 P User Manual

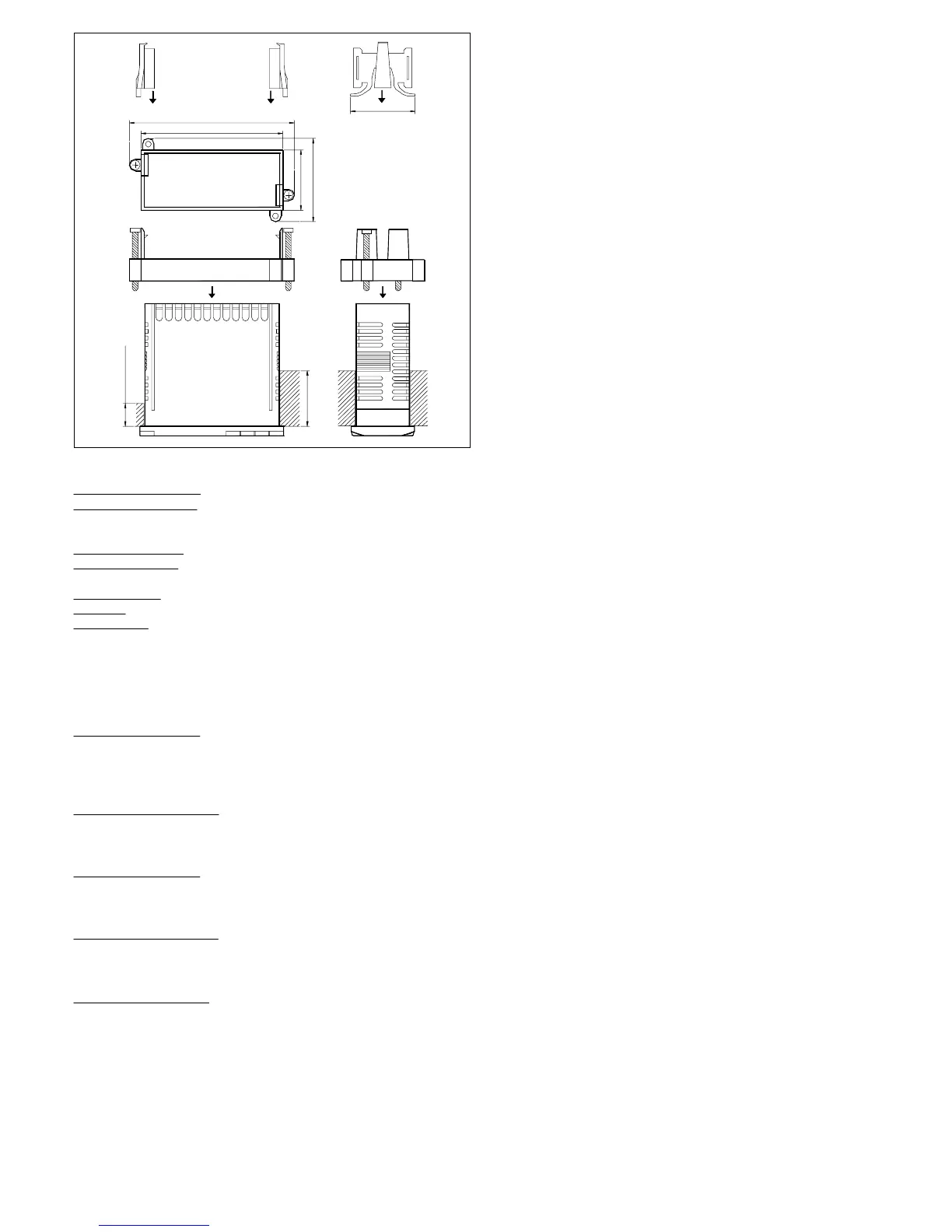

TYPE 1
PANEL + GASKET
PANEL + GASKET
TYPE 2
BRACKET
TYPE 1
BRACKETS
TYPE 2
86
74
43
31
34
MAX 12 mm
MAX 29 mm
7.4 - FUNCTIONAL FEATURES
Temperature Control:
ON/OFF mode
Measurement range:
Pt1000 : -100 ... 500 °C (-99,9 ... 500,0 °C) /
-148 ... 932 °F (-99,9 ... 932,0 °C); NTC (PT-24C2) : 0...300 °C / 32
...572 °F
Display resolution:
1 ° or 0,1°
Overall accuracy:
Pt1000 : +/- (0,5 % fs + 1 digit); NTC (PT-24C2)
: +/- (1 % fs + 1 digit)
Sampling rate:
130 ms.
Display:
4 Digit Red h 12 mm
Compliance:
ECC directive EMC 89/336 (EN 61326), ECC directive
LV 73/23 and 93/68 (EN 61010-1)
7.5 - INSTRUMENT ORDERING CODE
TLZ 11 a b c d ee P
a : POWER SUPPLY
H = 100...240 VAC
L = 24 VAC/VDC
F = 12 VAC/VDC
b :
OUTPUT OUT TYPE
S = Relay SPDT 16A-AC1
R = Relay SPST-NO 16A-AC1
c : ALARM OUTPUT
R = Relay
- = None
d :
INTERNAL BUZZER
B = Yes
- = No
ee
: SPECIAL CODES
TECNOLOGIC spa - TLZ 11 P - OPERATING INSTRUCTIONS - Vr.01 - 09/05 - ISTR 06947 - PAG. 6

Tecnologic TLZ 11 P Specifications

General

Brand	Tecnologic
Model	TLZ 11 P
Category	Controller
Language	English
