6.1 - SIGNALLING
Error Signalling:
Check and if necessary
re-programme the
parameters function.
Internal memory error
EEPr
Check the correct
connection of the probe
with the instrument and
check the probe works
correctly
The probe may be
interrupted or in short
circuit, or may measure
a value outside the
range allowed
E1
-E1
Action ReasonError
In probe error status, the output OUT behaves as set by the
parameters “tonE” and “toFE”.
Other Signalling:
Digital input alarm in progress
AL
Minimum temperature alarm in progress
LO
Maximum temperature alarm in progress
HI
Delay in switching on in progress
od
ReasonMessage
6.2 - CLEANING
We recommend cleaning of the instrument with a slightly wet cloth
using water and not abrasive cleaners or solvents which may
damage the instrument.
6.3 - GUARANTEE AND REPAIRS
The instrument is under warranty against manufacturing flaws or
faulty material, that are found within 12 months from delivery date.
The guarantee is limited to repairs or to the replacement of the
instrument.
The eventual opening of the housing, the violation of the instrument
or the improper use and installation of the product will bring about
the immediate withdrawal of the warranty’s effects.
In the event of a faulty instrument, either within the period of
warranty, or further to its expiry, please contact our sales
department to obtain authorisation for sending the instrument to
our company.
The faulty product must be shipped to TECNOLOGIC with a
detailed description of the faults found, without any fees or charge
for Tecnologic, except in the event of alternative agreements.
7 - TECHNICAL DATA
7.1 - ELECTRICAL DATA
Power supply:
12 VAC/VDC, 24 VAC/VDC, 100..240 VAC +/- 10%
Frequency AC:
50/60 Hz
Power consumption:
3 VA approx.
Input/s:
1 input for temperature probes: Pt1000 or NTC (PT-24C2,
100 K Ω @ 25 °C); 1 digital input for free voltage contacts
Output/s:
up to 2 relay outputs: OUT SPST-NO (16A-AC1, 6A-AC3
250 VAC) or SPDT 16A-AC1, 6A-AC3 250 VAC) and AL SPST-NO
(5A-AC1, 2A-AC3 250 VAC).
Electrical life for relay outputs:
OUT SPST-NO: 100000 op. ; SPDT:
50000 op. (om. VDE); AL: 100000 op.
Installation category:
II
Measurement category:
I
Protection
class against electric shock: Class II for Front panel
Insulation:
Reinforced insulation between the low voltage part
(supply H type and relay outputs) and front panel; Reinforced
insulation between the low voltage section (supply type H and relay
outputs) and the extra low voltage section (inputs); Reinforced
between supply and relay outputs; No insulation between supply F
type and inputs.
7.2 - MECHANICAL DATA
Housing:
Self-extinguishing plastic, UL 94 V0
Dimensions:
33 x 75 mm, depth 64 mm
Weight:
115 g approx.
Mounting:
Flush in panel in 29 x 71 mm hole
Connections:
2,5 mm
2
screw terminals block
Degree of front panel protection :
IP 65 mounted in panel with
gasket
Pollution situation:
2
Operating temperature:
0 ... 50 °C
Operating humidity:
30 ... 95 RH% without condensation
Storage temperature:
-10 ... +60 °C

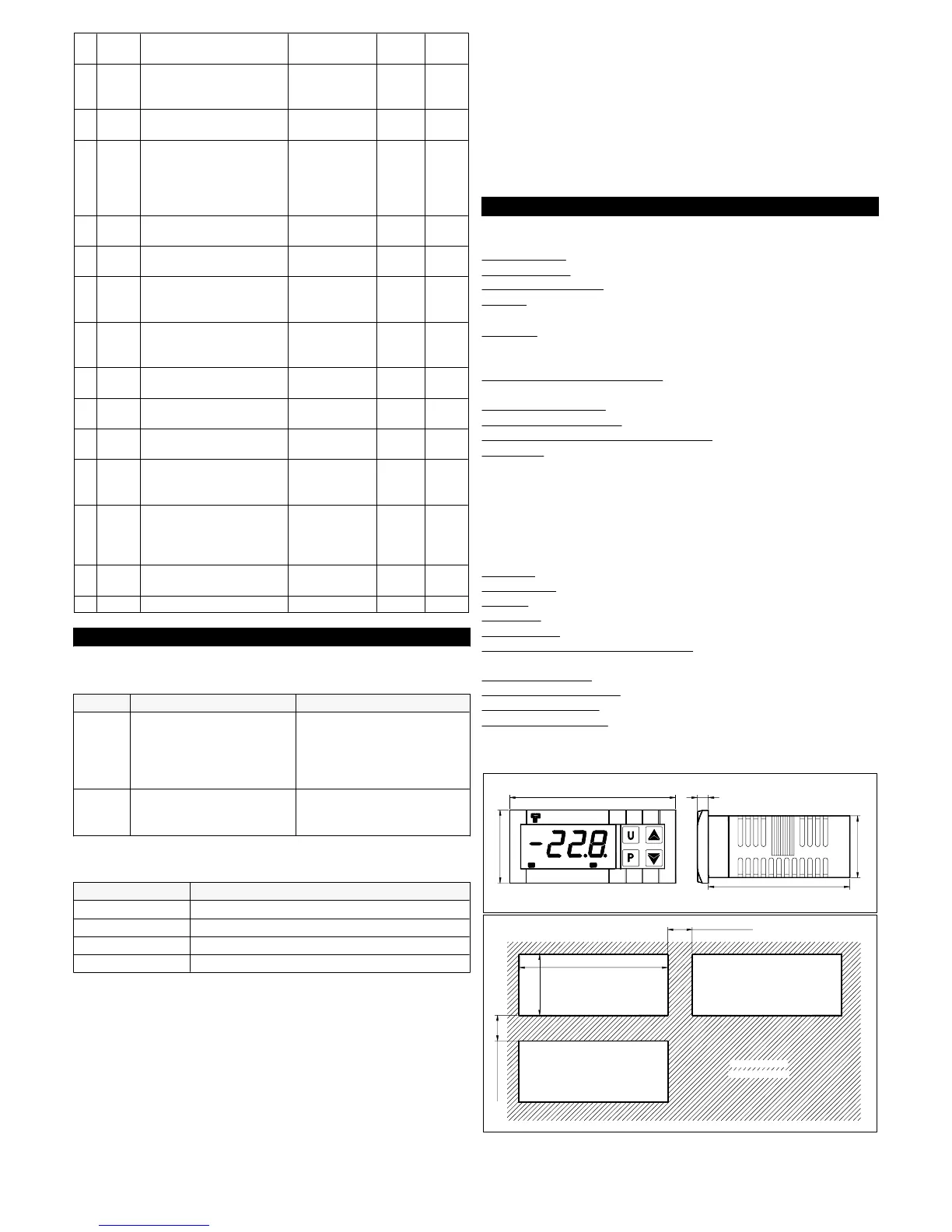

7.3 – MECHANICAL DIMENSIONS, PANEL CUT-OUT AND
MOUNTING [mm]
75
33
5
64
28
Out AL
TLZ 11
RECOMMENDED
PANEL CUTOUT
29
71
min. 15 mm
min. 12 mm
TECNOLOGIC spa - TLZ 11 P - OPERATING INSTRUCTIONS - Vr.01 - 09/05 - ISTR 06947 - PAG. 5
