MotorLock and Motor LatchBolt locks installation instructions
MotorLock and Motor LatchBolt locks are locks with, respectively, a motor driven dead bolt and a
motor driven spring bolt, whose block is carried out by a motor.
By entering a valid code, the motor retracts the bolt which remains in the open position for about
8 seconds and then automatically returns to the locked position.
If the manual relocking option is selected, the bolt closes by pressing any button.
Both lock versions can be mounted in all four mounting directions (RH, LH, VU, VD).
Locks is supplied with metric (M6) mounting screws. Upon request, Imperial 1/4-20 UNC format
mounting screws are available.

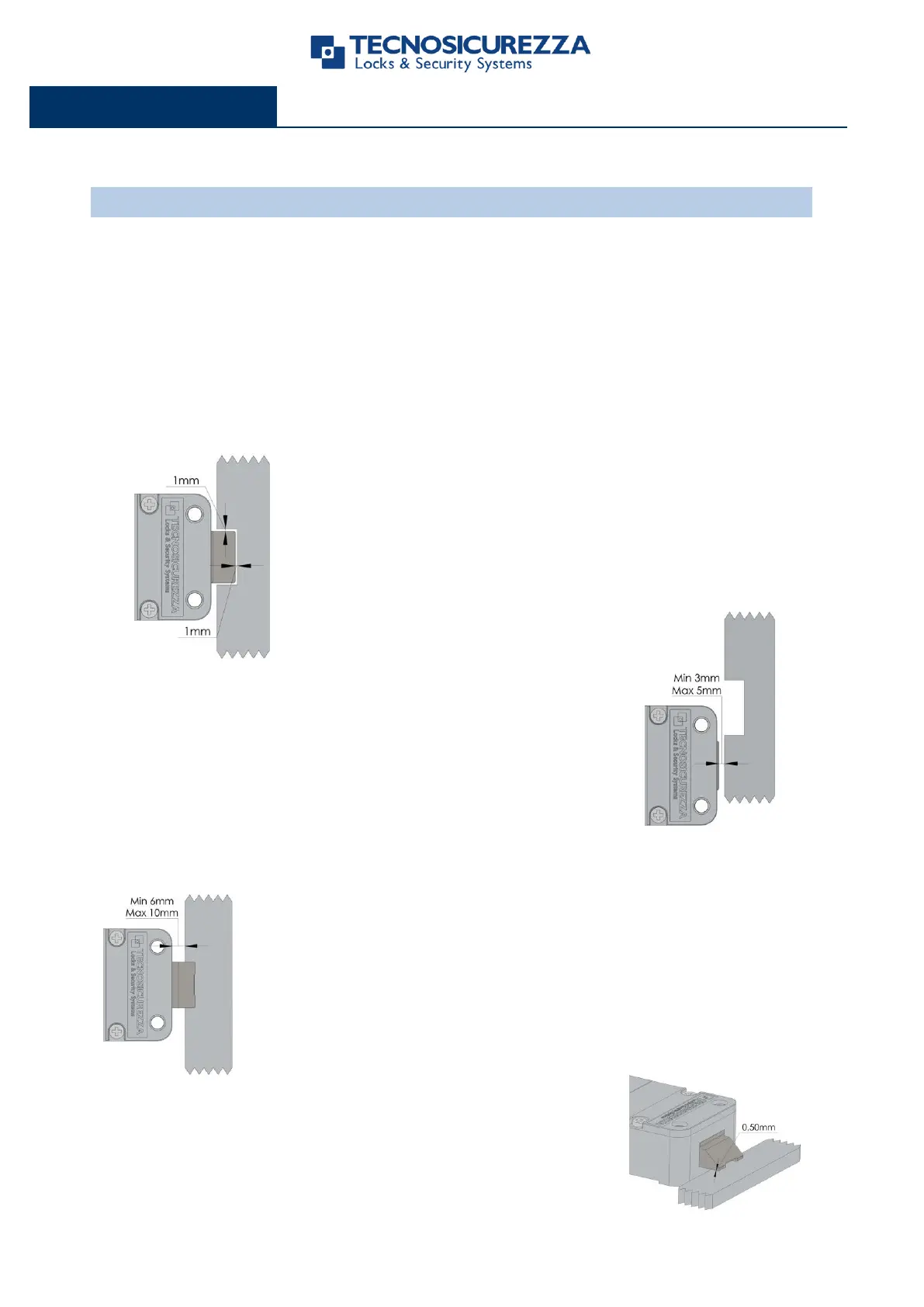

In the locked position, there should be approximately 1 mm
clearance between the lock bolt and the cavity in the blocking
bar of the boltwork. The bolt must be able to move freely
without applying any force on it.
In open position, there should be a minimum of 3 mm and
maximum of 5 mm clearance between the lock bolt and the
blocking bar of the boltwork.
The distance between the lock and the locking edge must be between
a minimum of 6 mm and a maximum of 10 mm.
