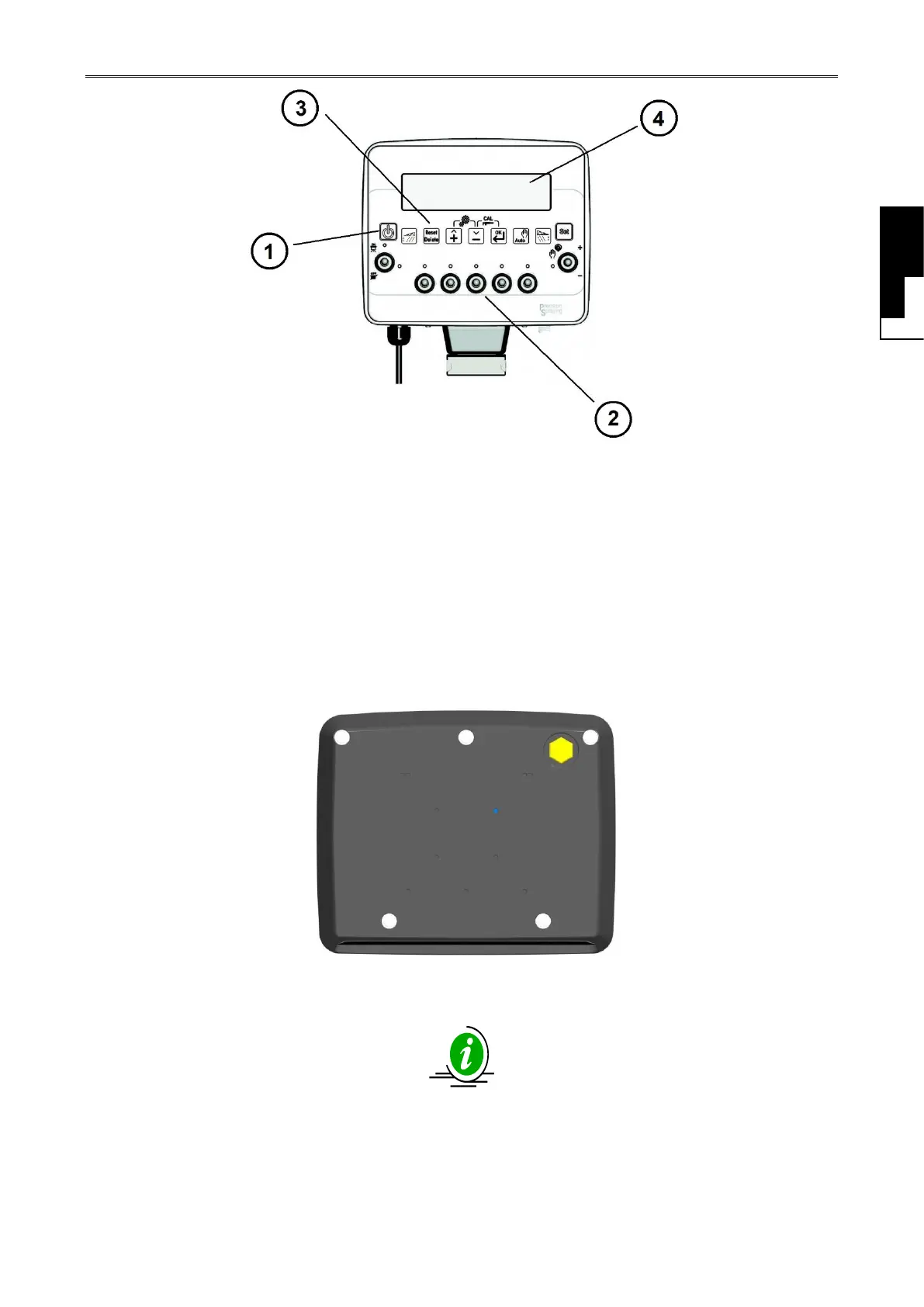

Figure 3 - Crop Sprayer (CS) Monitor
1. ON / OFF key.
2. Series of 2-position switches (ON-OFF) for the main control valve and
section valves (5 valves). One 3-position switch (ON-OFF-ON) with spring
return in the OFF position for volumetric valve control
3. Function and setting keys
4. Alphanumeric display - 2 rows of 16 characters with backlight.
The system is supplied with a pre-drilled mounting bracket. It is provided with an MED
fastening system (optional) with dedicated accessories.
The system is able to support a maximum load of 2.5 Kg.
Application zone for self-adhesive labels with production codes, model and serial number.
