Auto-test
Select the Test menu, press the Enter key to deter-
mine. The machine will start automatically detect
color. Not to make any changes, wait a minute to
automatically exit the menu and save. To main
menu, please press the Menu button.

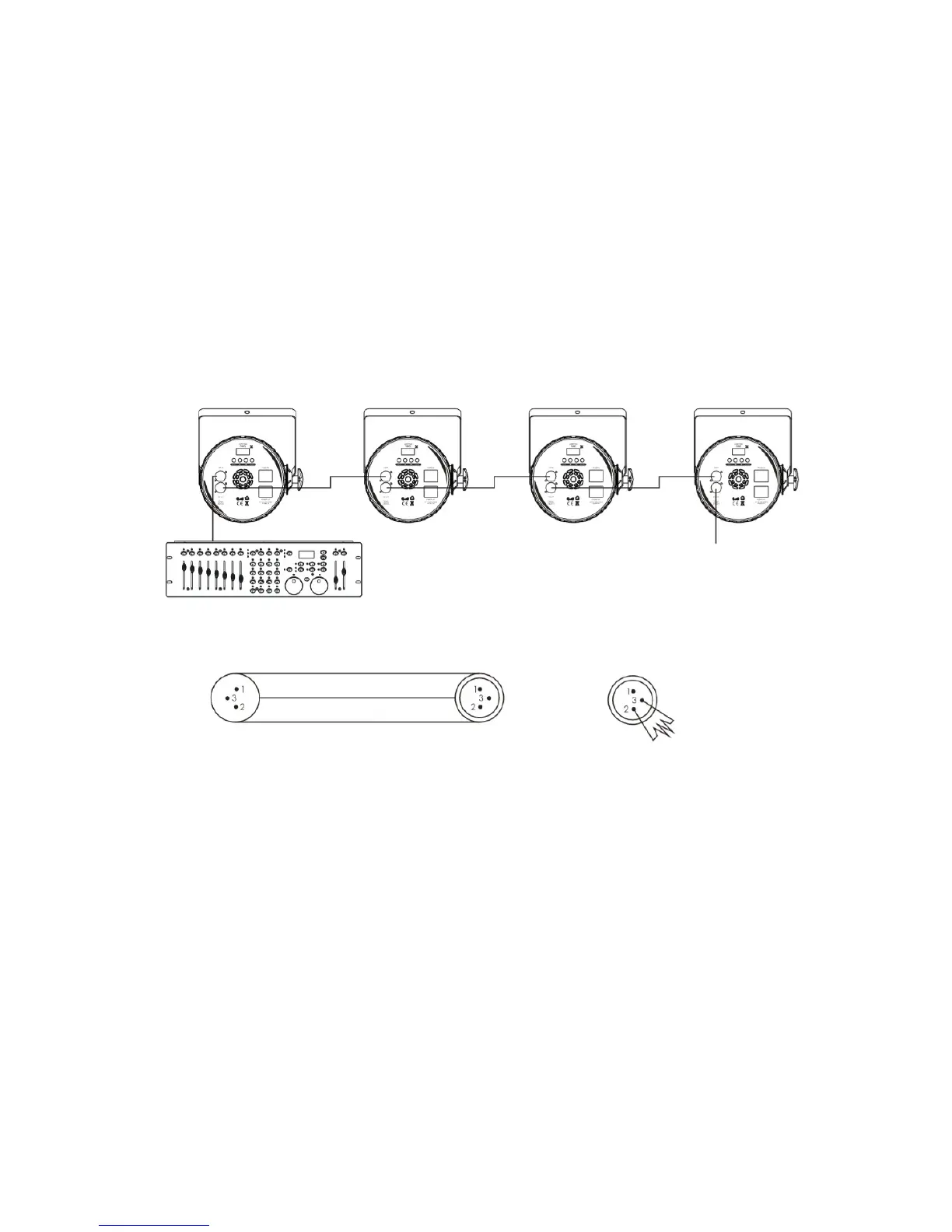

DMX512 Connections
The DMX512 is widely used in intelligent lighting
control with a maximum of 512 channels.
Termination reduces signal errors avoids signal
transmission problems and interference. It is al-
ways advisable to connect a DMX terminal. Resist-
ance 120 ohm 1/4W between pin2 (DMX-) and pin3
(DMX+) of the last xture.
DMX Input DMX Output
Common
DMX +
DMX -
To Next Page
