181-789-14 Four-Cycle Engine • Horizontal Crankshaft • Air-Cooled Page 13
3. Be sure the gas cap is on and is tightened securely.
See Figures 30, 31 and 32.
4. Clean area around oil drain plug. See Figures 30, 31
and 32.
5. Place approved recyclable oil container under oil drain
plug, tipping engine to position the oil drain plug at the
lowest point on the engine. (See equipment manufac-
turer’s instructions).
6. Remove oil drain plug and drain oil.
See Figures 30, 31 and 32.
NOTE
Used oil must be disposed of at a proper
collection center.
7. Install oil drain plug and tighten
securely.
8. Fill with recommended oil. See “III. Oil and Fuel Speci-
fications” instructions on page 3. See Table 1 on page
3 and Table 2 on page 4.
9. Wipe away any spilled oil.
10. Carefully disconnect spark plug wire from grounding
post, if provided.
11. Carefully re-connect spark plug wire to spark plug. See
Figures 28 and 29.

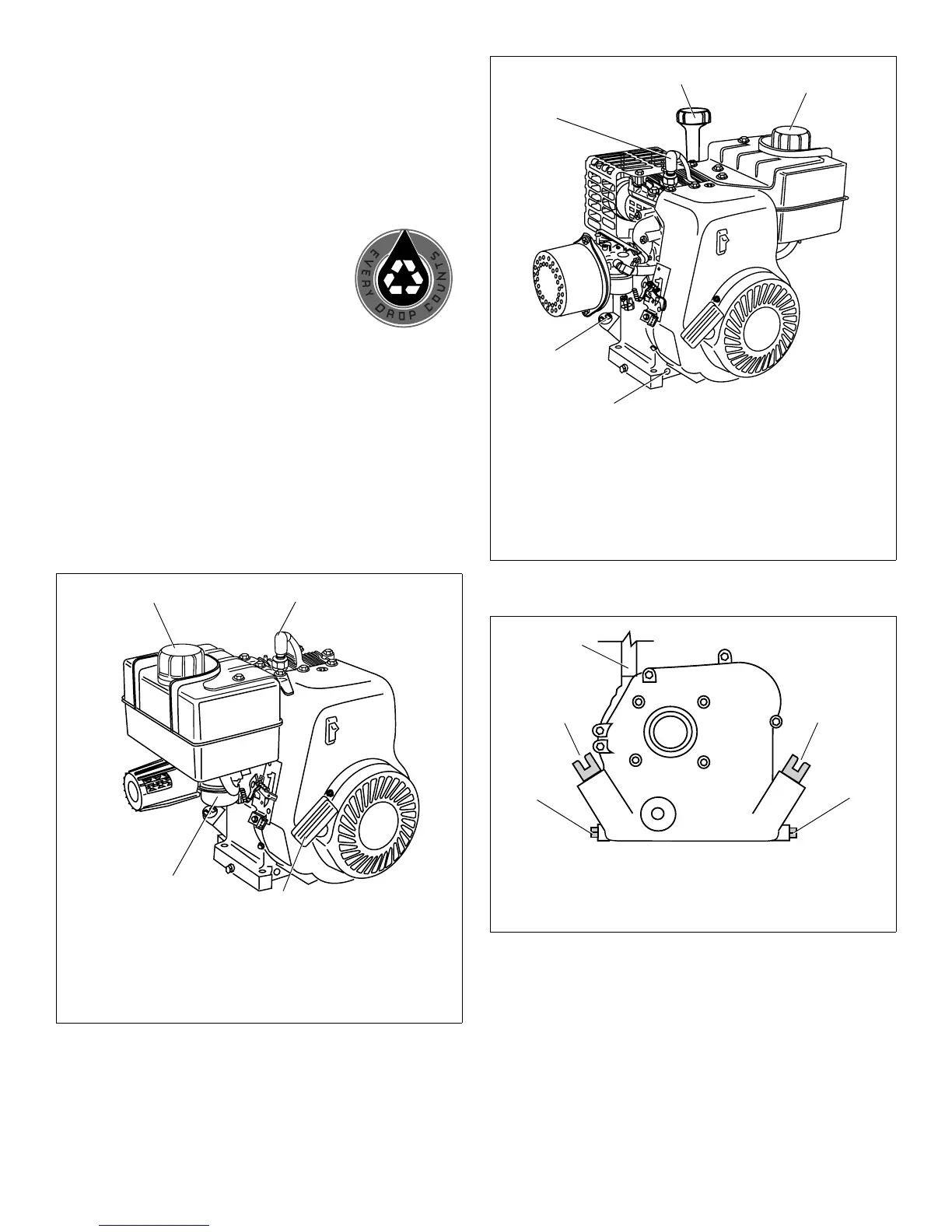

Figure 30. Compact Model Component Locations
21
3
4
1. Spark Plug Cap
2. Fuel Fill Cap
3. Oil Fill Plug
4. Optional Oil Drain
Figure 31. Standard Model Component Locations
Figure 32. Oil Drain/Fill Locations
1. Optional Extended Oil Fill Cap and Dipstick
2. Spark Plug Cap
3. Fuel Fill Cap
4. Oil Fill Cap
5. Optional Oil Drain
2
3
4
5
1
1. Oil Drain Plug
2. Oil Fill Cap and Dipstick
3. Optional Oil Fill Plug
1
2
3
1
2
