Page 10 Four-Cycle Engine • L-Head • Horizontal Crankshaft • Air-Cooled 181-630-14
B. Engines with Recoil Starters
1. To avoid carbon monoxide poisoning, be sure engine is
outdoors in a well-ventilated area.
2. Move engine stop switch or low oil shutdown switch to
“ON” position, if present (see equipment manufac-
turer’s instructions). See Figures 22 and 23.
3. Be sure fuel valve, if present (see equipment manufac-
turer’s instructions) is open and all switches are on.
See Figure 13 on page 7. Afterward, continue reading
instructions below.
4. Move engine speed control to “FAST” position and set
choke control to ”FULL CHOKE” position (see equip-
ment manufacturer’s instructions). See Figures 24
thru 27. Afterward, continue reading instructions below.
NOTE
If restarting a warm engine after a short shutdown, move
engine speed control to “FAST” position and choke control
to “NO CHOKE” position.

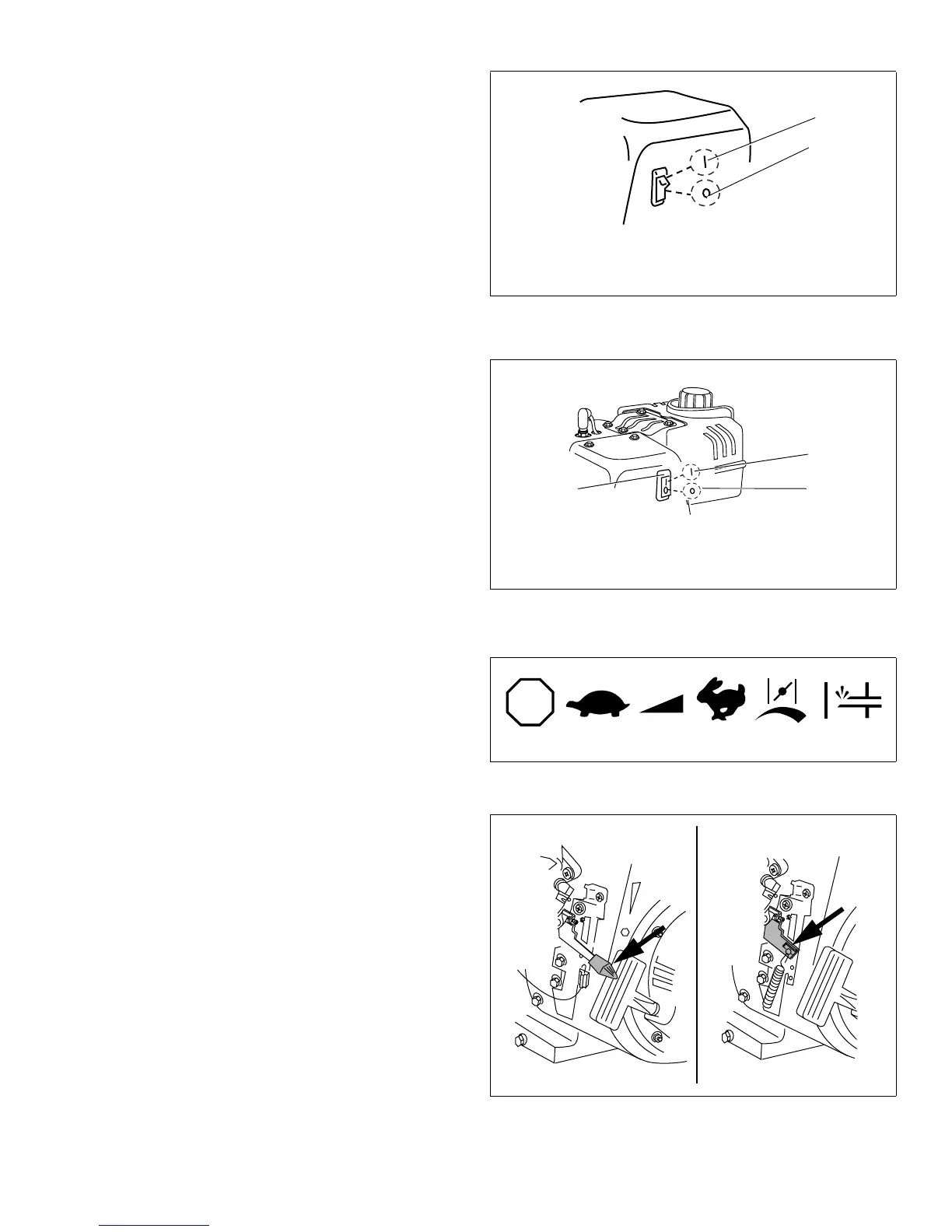

Figure 22. Engine Stop Switch
Figure 23. Low Oil Shutdown Switch
Figure 24. Typical Engine Symbols
Figure 25. Engine Mounted Speed Controls
1. “ON” Position
2. “OFF” Position
1
2
1
2
3
1. “ON” Position
2. “OFF” Position
3. Lighted Switch
STOP
STOP SLOW RUN FAST CHOKE PRIMER
