181-719-14 Four-Cycle Engine • Horizontal Crankshaft • Air-Cooled Page 5
B. Filling Oil Sump
I. Oil Fill Cap/Dipstick
If your engine has an oil fill cap/dipstick go to step 1. If your
engine does NOT have an oil fill cap/dipstick, see "II. Oil Fill
Cap/Plug" instructions below.
1. Be sure engine is upright and level.
2. Unscrew oil fill cap/dipstick from oil filler tube and wipe
dipstick clean. See Figure 8.
3. Screw oil fill cap/dipstick back into oil filler tube. Tighten
securely.
4. Unscrew and remove oil fill cap/dipstick from oil filler
tube. Note oil level. If oil reading on dipstick is below
“ADD” mark, slowly add oil to reach “FULL” level.
See Figure 7 on page 4. Afterward, continue reading
instructions below.
5. Screw oil fill cap/dipstick back into oil filler tube.
Tighten securely.
6. Wipe away any spilled oil.
NOTE
To change oil for engines with an oil fill cap/dipstick, see
"A. Checking and Changing Oil” instructions on page 13.
II. Oil Fill Cap/Plug
If your engine does NOT have an oil fill cap/dipstick, go to
step 1. If your engine has an oil fill cap/dipstick, see
"I. Oil Fill Cap/Dipstick" instructions above.
1. Be sure engine is upright and level.
2. Clean area around oil fill cap/plug. See Figure 9.
3. Unscrew oil fill cap/plug.
4. Add oil to overflow point, making sure to avoid spilling.
5. Screw oil fill cap/plug back into oil fill hole.
Tighten securely.
6. Wipe away any spilled oil.
NOTE
To change oil for engines with an oil fill cap/plug, see
“A. Checking and Changing Oil” instructions on page 13.

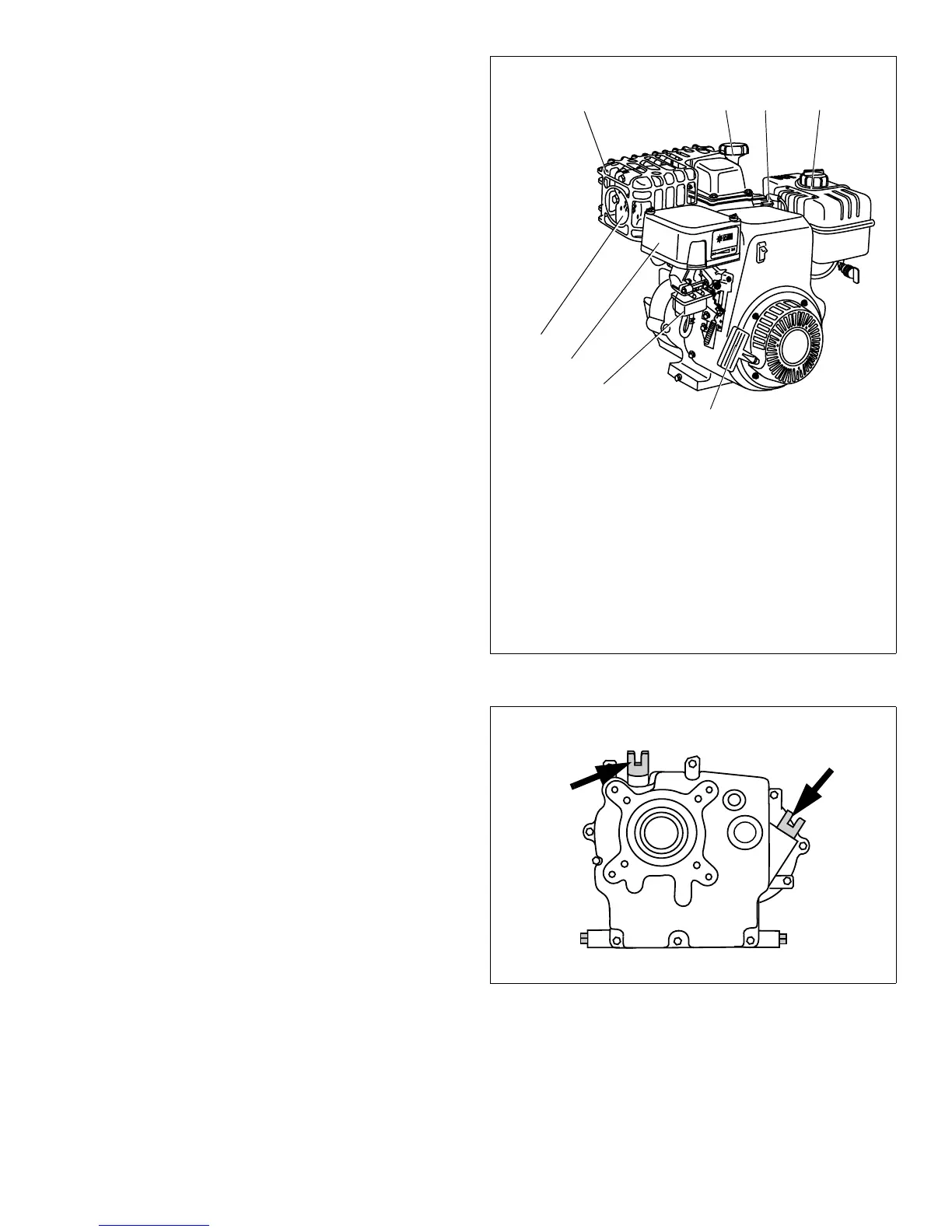

Figure 8. Engine Components
Figure 9. Oil Fill Locations
!
1
2
3
547
8
1. Carburetor
2. Air Cleaner
3. Muffler
4. Muffler Guard
5. Oil Fill Cap
6. Spark Plug Cap
7. Fuel Fill Cap
8. Starter Cord Handle
6
