Tecumseh Silensys B08Z - Putting into Operation

8/12
220-240V – 1Ph 15.4 0.6
H49Z
400 V – 3Ph 4.2 0.6
220-240V – 1Ph 18.1 0.6
400 V – 3Ph 6.3 0.6H54Z
220V – 3 Ph 10 0.6
220-240V – 1Ph 26.3 1.2
400 V – 3Ph 8.18 1.2H71 Z
220V – 3 Ph 13.4 1.2
220-240V – 1Ph 27 1.2
400 V – 3Ph 9.21 1.2H84Z
220V – 3 Ph 20.6 1.2
H.P. R-134a range
Maximum working current
Compressor FanType Voltage
[ A ] [ A ]
R-134a – H.P. models
220-240V – 1Ph 5.9 0.3
H15Y
400 V – 3Ph 1.5 0.3
H19Y 220-240V – 1Ph 7.21 0.3
220-240V – 1Ph 8.2 0.3
H23Y
400 V – 3Ph 2.8 0.3
220-240V – 1Ph 8.5 0.3
H28Y
400 V – 3Ph 3.4 0.3
220-240V – 1Ph 11.2 0.6
400 V – 3Ph 4.2 0.6
H46Y
220V – 3 Ph 7 0.6
220-240V – 1Ph 15.2 0.6
400 V – 3Ph 5.6 0.6
H56Y
220V – 3 Ph 12 0.6

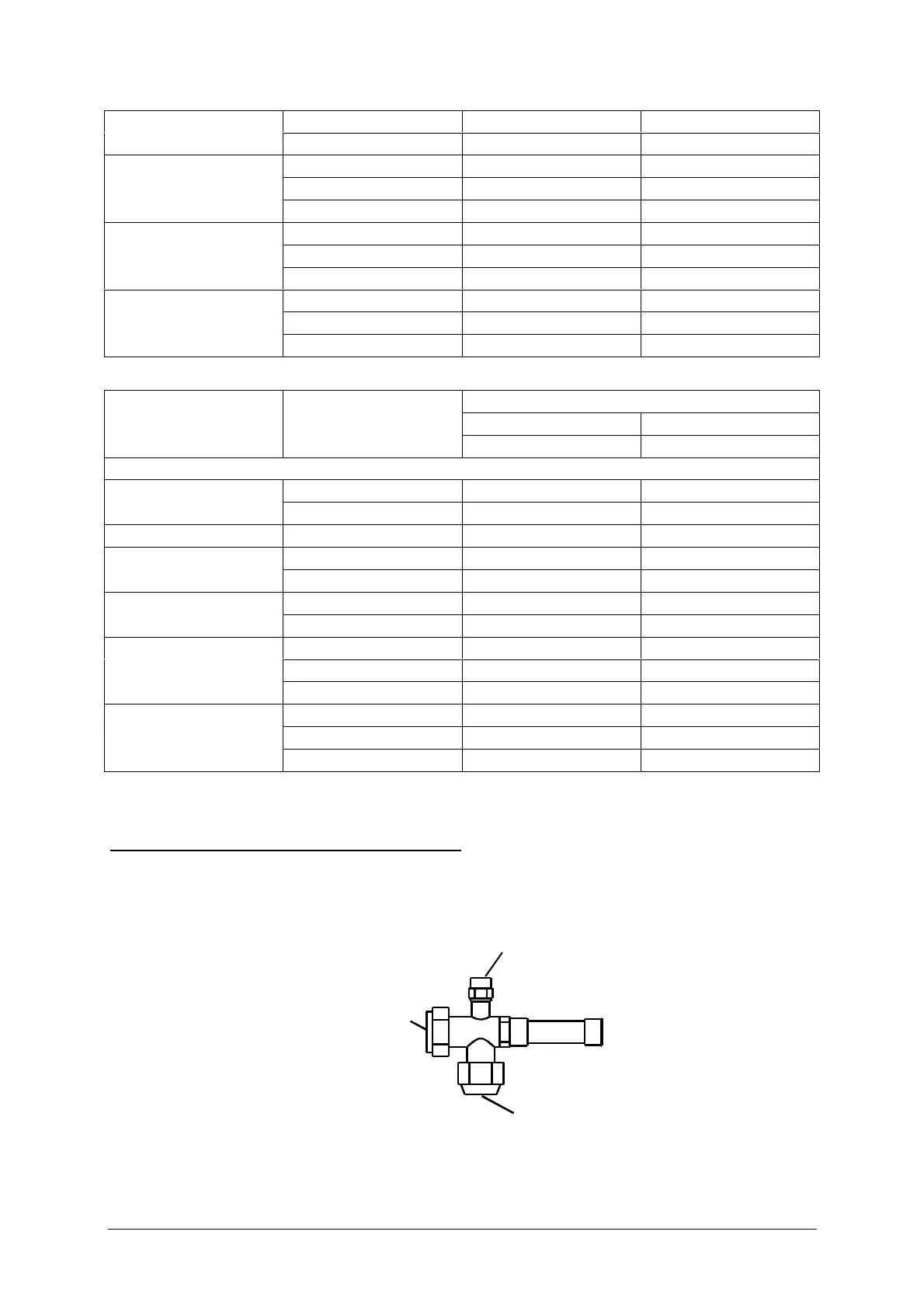

4 PUTTING INTO OPERATION
The connection valves are provided with a SAE 7/16”-20 UNF 2A filler neck with removable
“Schrader” valve.
Filler neck
Connection
Control
device
