MODEL XQ140/20 HYDRAULIC POWER TONG OPERATION MANUAL
YANCHENG TEDA DRILLING & PRODUCTION EQUIPMENT CO.,LTD

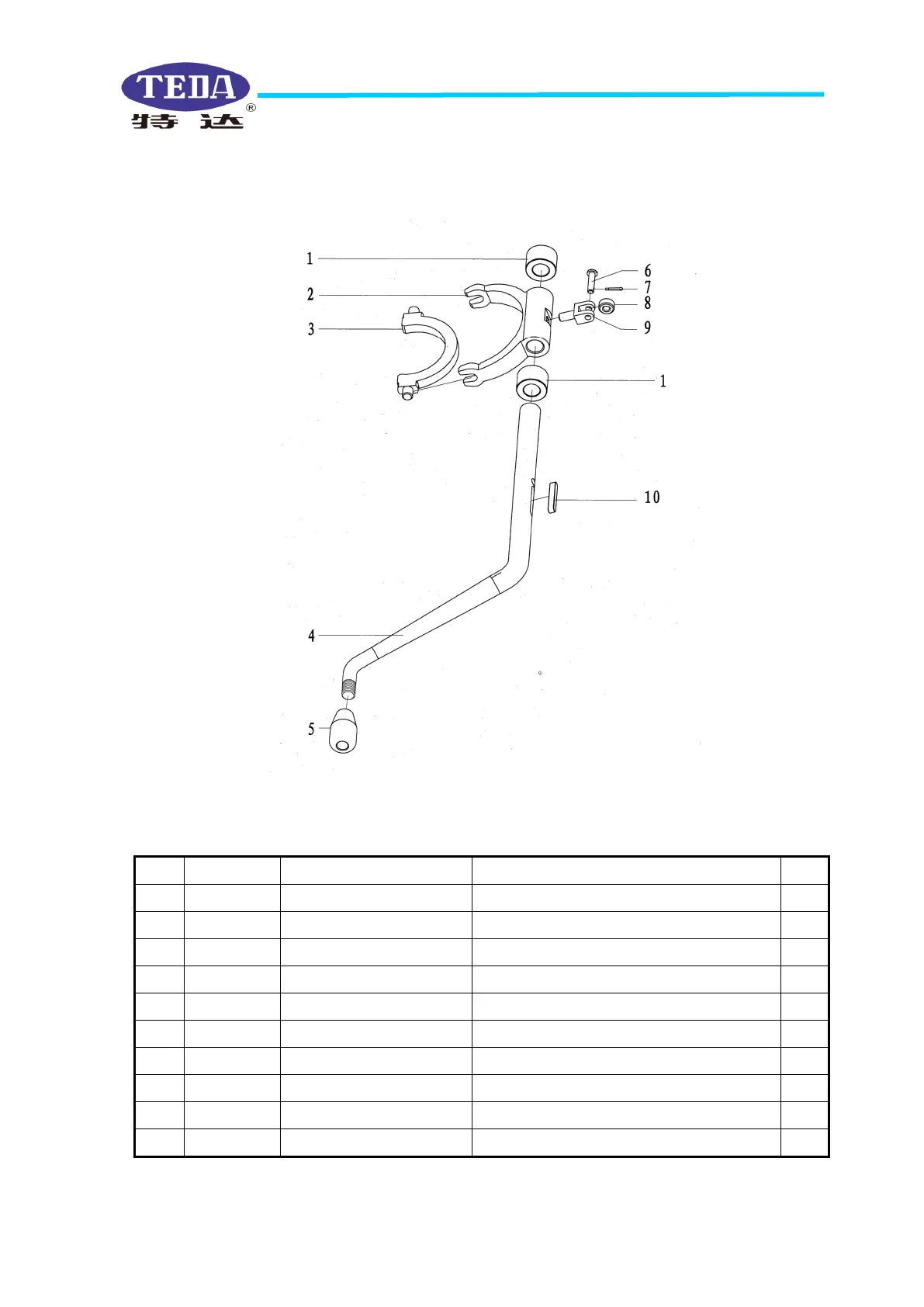

10.7 Gear shifting assembly and parts list (Fig.10.7, Table 10.7)
Fig.10.7
Table 10.7 Gear shifting assembly parts list
NO.
P/N
Parts number
Description
Qty.
1
XQ20-180
XYQ12.Z-22.01
Shaft sleeve
2
2
XQ20-181
XYQ12.Z-22.02
Shift fork
1
3
XQ20-182
XYQ12.Z-22.03
Shift ring
1
4
XQ20-183
XQ20.1.7-1
Shift fork shaft
1
5
XQ20-184
XYQ3C.Z.5-10
Ball knob
1
6
XQ20-185
XYQ3C.Z.6-4
Roller shaft
1
7
XQ20-186
GB/T91
Cotter pin2
×
10
1
8
XQ20-187
XYQ3C.Z.6-3
Roller
1
9
XQ20-188
XYQ3C.Z.6-5
Roller seat
1
10
XQ20-189
XYQ3C.Z.6-6
Flat key
1
