TeeJet 744A - Control Housing Assembly

6
www.teejet.com
Product
®
Control Housing Assembly
New consoles have boom switches, guage lamps/LEDs and boom LED soldered to the circuit board.
Item Part Number Description Quantity
1 60-50020 Knurled Nut, Brass Nickel Plated
2 84-20002 Graphic Panel
3 64-50024 Front Housing
4 64-50031 Lens Gauge
5 51-20008 100 psi Liquid Gauge
51-20002 300 psi Liquid Gauge
6 60-50019 Square Nut (2 Req’d)
7 01-50007 Circuit Board
8 32-50010 Toggle Switch
9 350-2610 Plastic Screw
10 64-50030 Foam Spacer
11 64-50025 Back Housing
12 64-50029 Elbow, Nylon (Black)
13 64-50032 Output Cable Shield, Neoprene
14 64-50026 Receptacle Fuse Shield, Neoprene
15 604-0014 Fuse, 15A

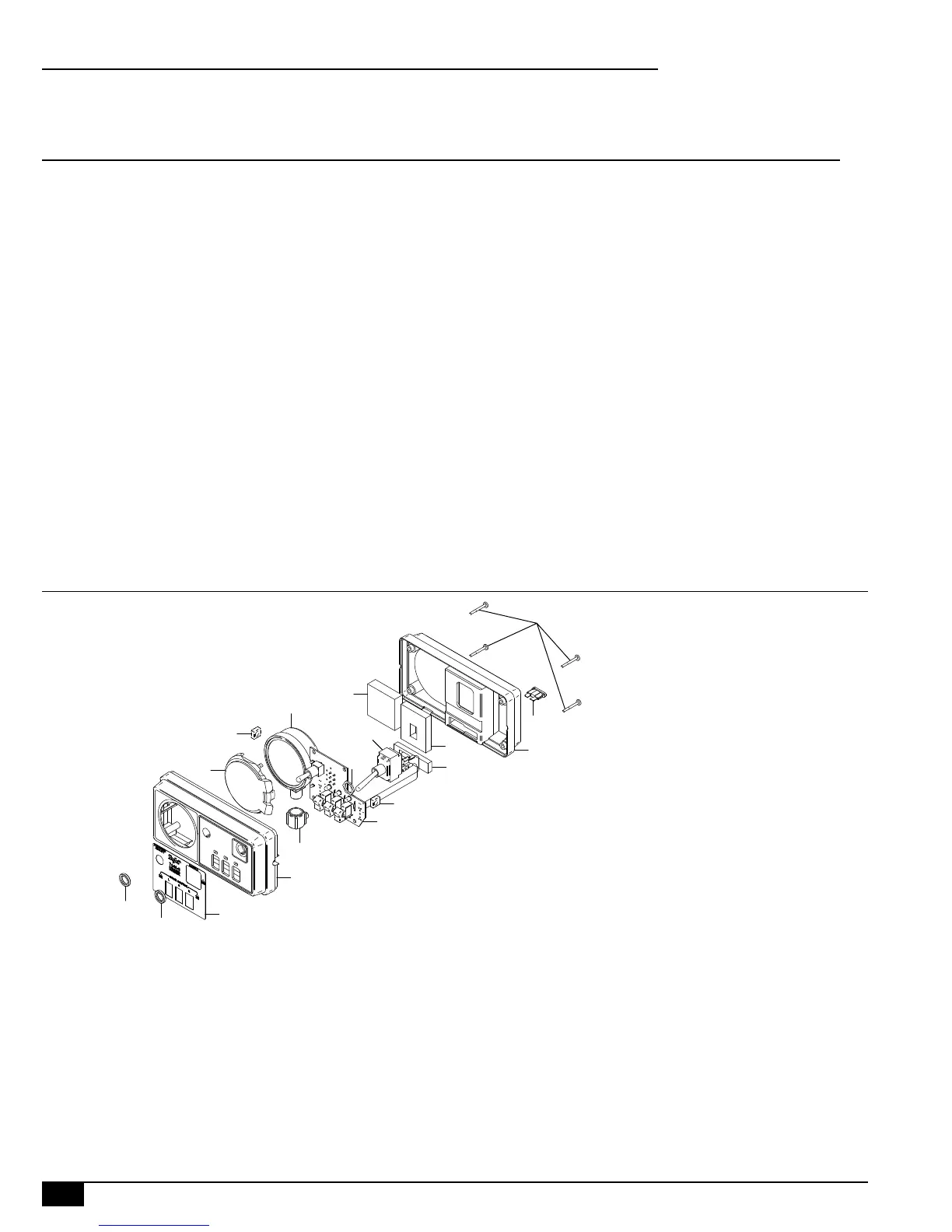

Figure 5: Assembly
1
8
12
15
5
8
2
3
7
6
14
13
11
6
10
8
9
4
