TeeJet 744A - CHAPTER 1 - INTRODUCTION; System Configurations

2
www.teejet.com
Product
®
Photos and illustrations may vary form the actual components
provided. This may be due to different installation options, operation
modes or production models.
Always try to use original parts. Built to the highest standards of safety
and reliability, TeeJet Technologies parts are to be used for this system
as others might jeopardize the safety and function of the system.
TeeJet is not responsible for any redesign or adaptations of the 744A
Sprayer Control. Any changes to the 744A Sprayer Control voids the
company warranty.

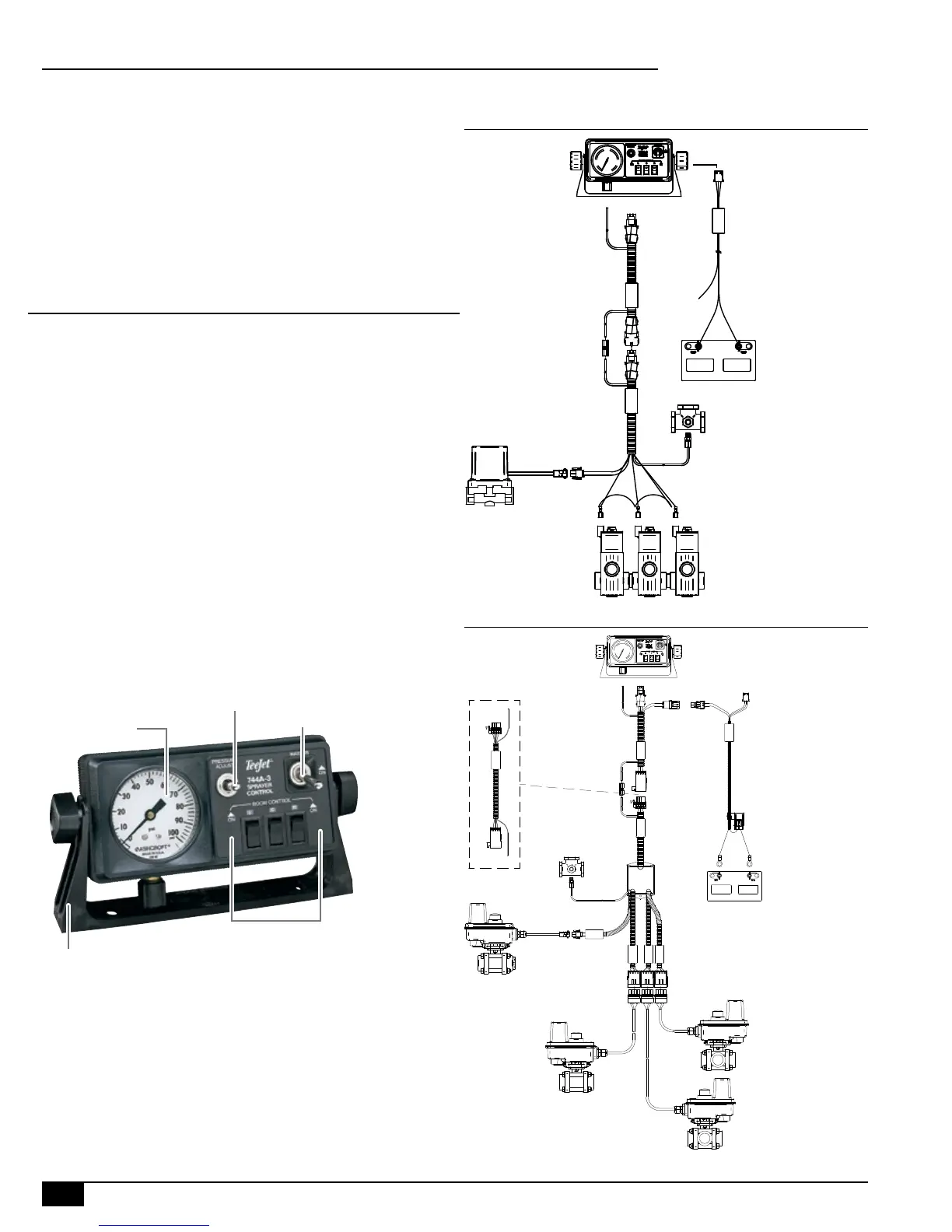

CHAPTER 1  INTRODUCTION
The 744A Sprayer Control provides manual spray control in a compact
package. The 744A allows for the choice of liquid-lled 100 PSI (7 bar)
or 300 PSI (20 bar). The console features a lighted pressure gauge
for night use and heavy-duty switches with LED indicators. The 744A
is available in a variety of kit forms using solenoid or ball type control
valves.
TeeJet 744A manual Sprayer Control for use with Solenoid or Ball
Valves
• Manual spray controller in a compact package.
• Liquid lled 100 PSI or 300 PSI pressure gauge.
• Lighted pressure gauge for night use.
• Heavy-duty switches with LED indicators.
• Available in a variety of kit forms using solenoid or ball type control
valves.
• DirectoValve shutoff ball valves are ordered separately for 744A
ball valve kits.
• Kits include wiring harness.
Pressure Gauge
Master Switch
Pressure Adjust Switch
Boom Control Switches
Mounting Bracket
System Congurations
Figure 1: Solenoid Valves
21 720- 8
DC :
X X/XX
45 -200 91
45 -200 90
DC :X X /XX
Te eJet
214 78 - 2
xx/xx
45- 2010 0
45-20100
744A Console
Mounting Bracket
64-50023
Cable,
Power
45-20100
Battery
Cable, Extension:
8’ 45-20091
15’ 45-20079
Cable, End:
8’ 45-20090
15’ 45-20089
18’ 45-20088
Solenoid Valves
Valve,
Pressure
Regulating
35-50029
Fitting, Tee
67-20004
Figure 2: Ball Valves
45-05385
DC: xx/xx
TeeJet
DC: XX/XX
45-10072
TeeJet
45-10080
DC: xx/xx
Boom 3
Boom 2
Boom 1
Reg. Valve
TeeJet
45-10086
DC: xx/xx
744A Console
Cable, Power
Fused
45-05385
Battery
Harness, 744
Console 12’
45-10072
Cable, Extension
10’ 45-10086
Harness, 744 Ball
Valve 45-10080
Valve, Regulating
35-02115
Ball Valves
