Teeter Power10 - Foot Platform Assembly

FIGURE 4
FOOT PLATFORM ASSEMBLY
IMPORTANT: Use caution to ensure the
Cables on the Foot Platform and Foot Platform
Joint do not get pinched or pulled
while attaching the Platform Assembly.

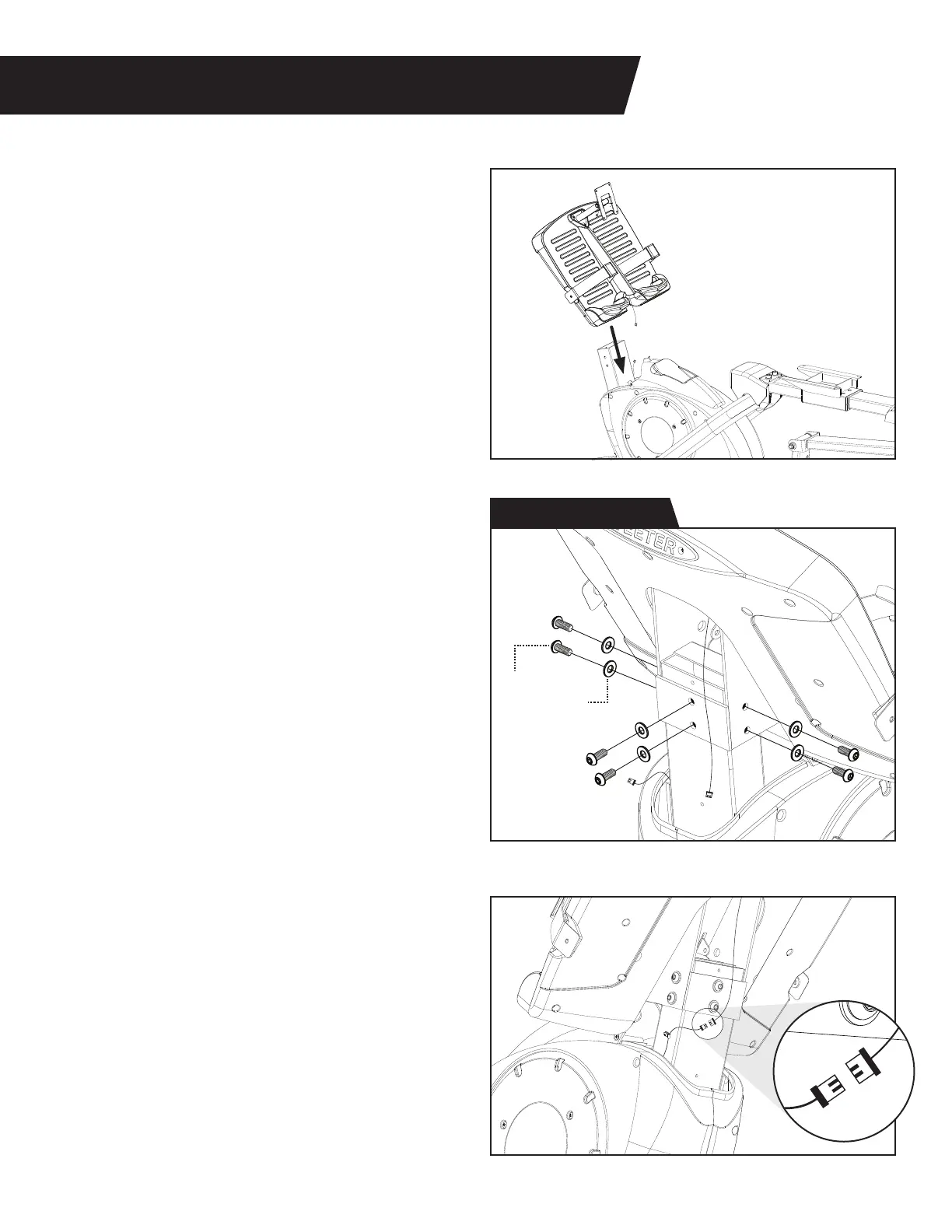

Figure 7: Align the Foot Platform with the
Base and insert it over the Foot Platform Joint.
Figure 8: Use the Step 4 Hardware Kit to attach
the Foot Platform to the Foot Platform Joint.
Hand tighten 6 × Bolts with 6 × Washers on the
Platform Joint.
Proceed to fully tighten the bolts with the
6mm Allen Wrench.
Figure 9: Connect the Cables at the Foot
Platform Joint by snapping the two ends of the
Cables together.
7
Figure 7
Figure 8
Figure 9
Step 4 Hardware Kit
Bolt (M8 x 20)
Washer (M8)
