Teeter X Series - Repacking the A-Frame; Repacking the Ankle Lock System; T-Pin Ankle Lock; EZ-Reach Ankle Lock

Figure 4a
Figure 4b
Figure 5b
Figure 5a
Repacking the A-Frame

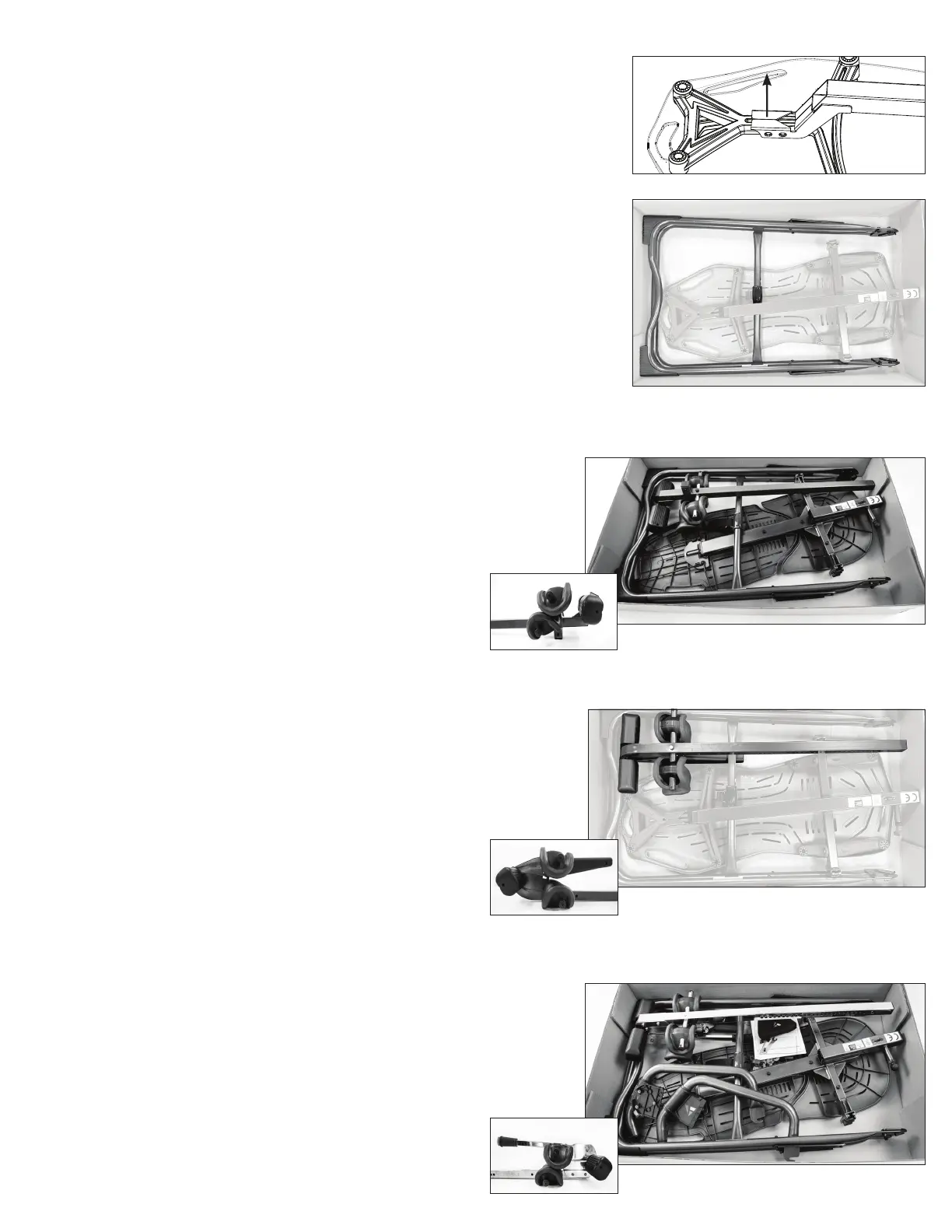

Figure 4a & 4b: Position the A-Frame in the box by
first pulling up on the Support Beam of the Table
Bed with one hand and overlapping it over the
Crossbar of the A-Frame while sliding the A-Frame
into the box as shown.
Repacking the Ankle Lock System
For T-Pin Ankle Lock:
Close the T-Pin to the last hole setting (Figure 5a).
Then place it Ankle System-side down at an angle
next to the Table Bed on top of the plastic bag
(Figure 5b).
For EZ-Reach Ankle Lock:
Make sure the EZ-Reach Ankle System is open to
the second notch (Figure 5c). Place Ankle System-
side down at an angle next to the Table Bed on
top of the plastic bag, with the EZ-Reach Handle
tucked under the Crossbar of the A-Frame
(Figure 5d).
For Deluxe EZ-Reach Ankle Lock:
Close the Deluxe EZ-Reach Ratchet to the
smallest setting (Figure 5e). Place the Main Shaft
with Ankle Lock into the Large Bag to prevent
scratching. Place the Ankle Lock face-down next
to the Table Bed as shown (Figure 5f).
Figure 5c
Figure 5d
Figure 5e
Figure 5f
