Teknatool SUPERNOVA 2 - SuperNova² Chuck Exploded Drawing & Parts List

6
SUPERNOVA
2

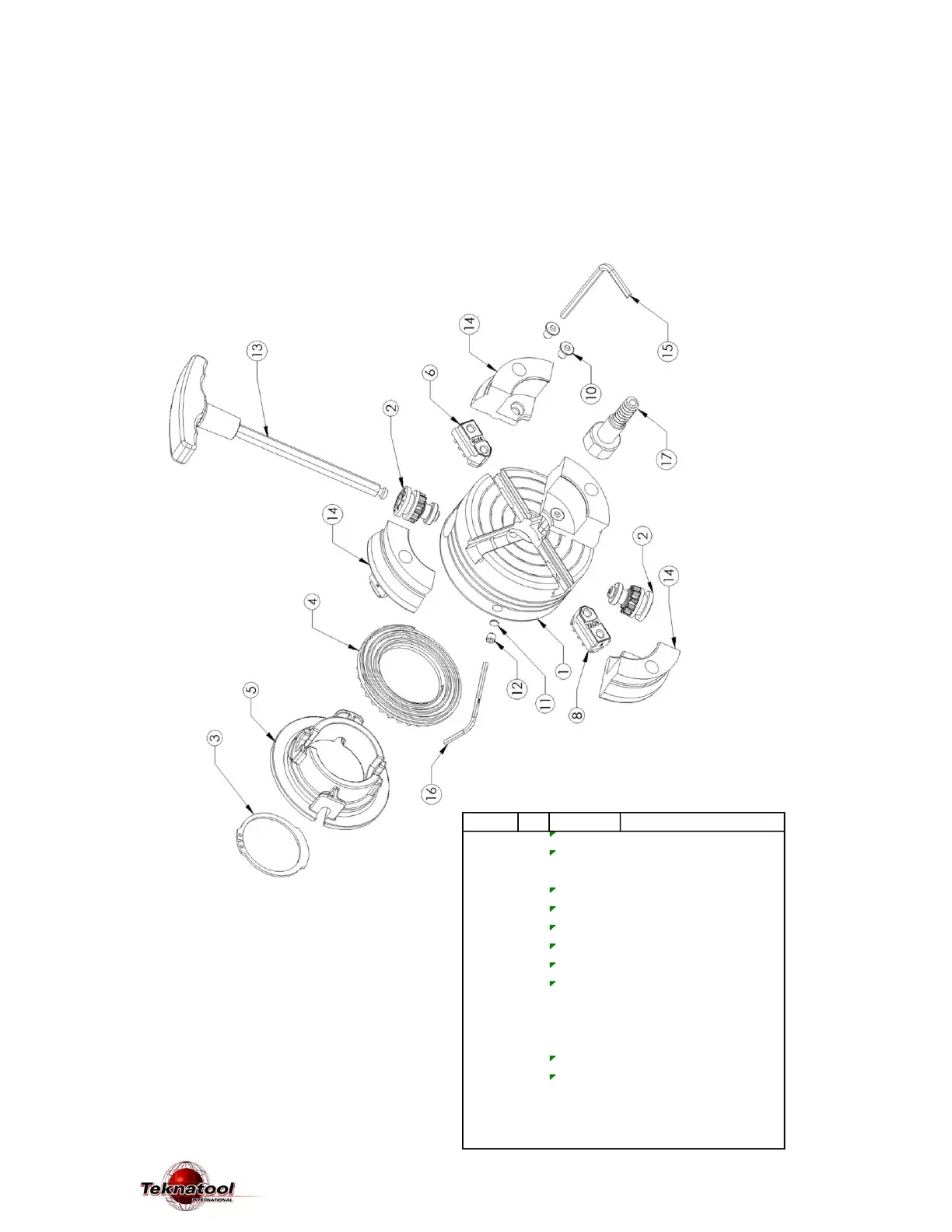

CHUCK EXPLODED DRAWING & PARTS LIST
ITEM NO.
QTY. PART NO. DESCRIPTION
1 1 23049 Body SuperNov a 2
2 2 23045 Machined Cast Pinion
3 1 EC48 Circlip
4 1 23044 Machined Cast Scroll Ring
5 1 23048 Plastic Backing Plate
6 1 23051 Jaw Slide 1
7 1 23052 Jaw Slide 2
8 1 23053 Jaw Slide 3
9 1 23054 Jaw Slide 4
10 8
CM5010180
Screw C/Sunk
11 2 NS1000 Washer Fibre
12 1 G0606 Grubscrew
13 1 13006 Handle
14 4 6013 Jaw Segment
15 1 AK4 Allen Key 4mm
16 1 AK3 Allen Key 4mm
17 1 WWCJ Woodworm
