Teknatool SUPERNOVA 2 - Euro Version Exploded Drawing & Parts List

8
SUPERNOVA
2

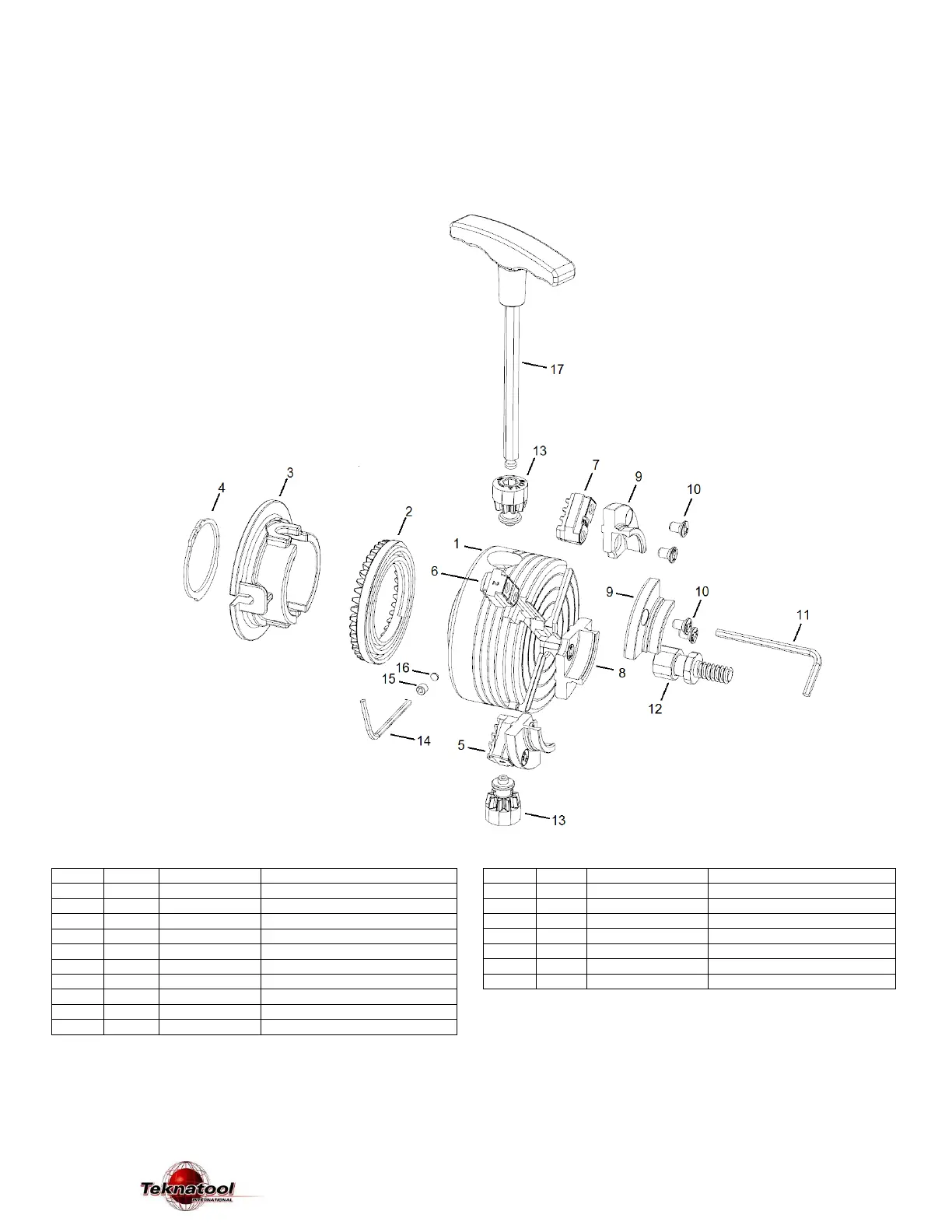

CHUCK EURO VERSION EXPLODED DRAWING &
PARTS LIST
REF#
QTY.
PART#
DESCRIPTION
1
1
1319011
Super Nova 2 EU Body
2
1
23082
Machined Cast Scroll Ring
3
1
23048
Plastic Backing Plate
4
1
EC50
Circlip
5
1
23051
Jaw Slide 1
6
1
23052
Jaw Slide 2
7
1
23053
Jaw Slide 3
8
1
23054
Jaw Slide 4
9
4
10029
Jaw segment (50mm)
10
8
CM5010181
Screw C/Sunk
REF#
QTY.
PART#
DESCRIPTION
11
1
AK4
Allen Key 4mm
12
1
10006
Wood Screw
13
2
23081
Machined Cast Pinion
14
1
AK3
Allen Key 3mm
15
1
G0606
Grub screw
16
2
NS1000
Washer Fiber
17
1
13006
T handle
