Installing your Built-in Oven
Bringing it all together
Installation
This appliance should be installed by a competent person or qualified electrician in a accordance with the
regulations in force (All relevant British Standard/ Codes of Practice/relevant Building/IET regulations) and in
a well ventilated space. Please read instructions before installing and using this appliance.
Important: - The power supply to the appliance must be switched o° before any adjustments or maintenance work
is carried out.

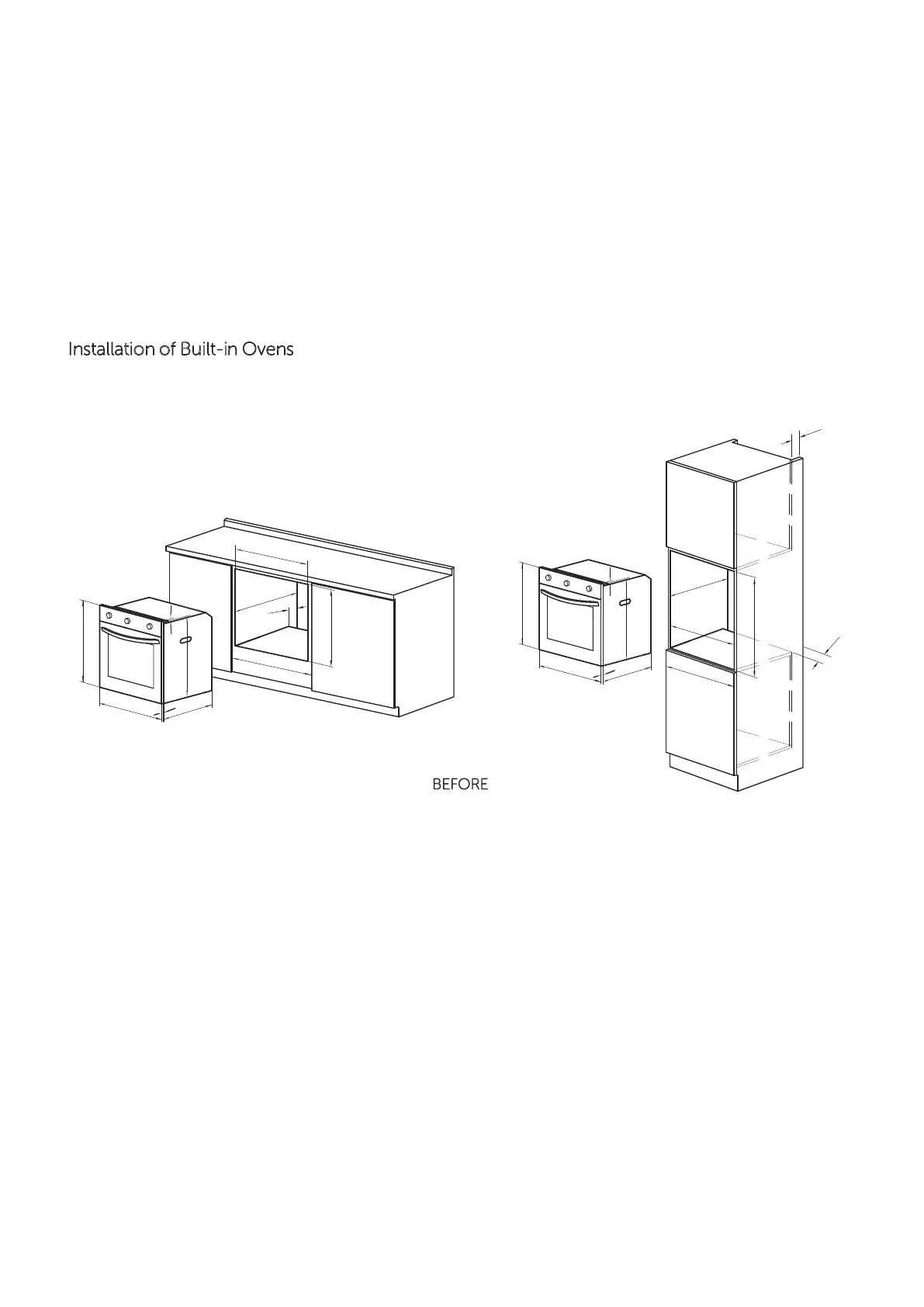

Installation of Built-in Ovens
In order to ensure that the built-in appliance functions properly, the cabinet containing it must be appropriate .The
figur below gives the dimensions of the cut-out for installation under the counter or in a wall cabinet unit.
The worktop and any associated hob should be fitted BEFORE installing this oven.
It is recommended that if installing a built-in oven directly under the hob then there should be a minimum air gap of
20 mm between the oven and the bottom of the hob. Failure to maintain a suitable clearance may impair the
performance of the hob.
Ensure that air can flow freely around the housing area. If the oven is being installed into a fully enclosed built-under
oven housing unit it may be necessary to cut a small slot in the top of the plinth fitted under the unit. Cut a sectio in
the centre of the plinth that is 400mm wide and 45mm deep to allow air to pass under the unit. Alternatively cut a
section 400 x 450mm in the base of the centre of the plinth.
Failure to allow adequate ventilation to the appliance may result in overheating or damage to adjacent units and could
invalidate the guarantee. Surfaces of furniture and walls adjacent to the appliance should be heat, splash and steam
resistant. All cabinet doors must be at least 4mm from the oven at all points.
Certain types of vinyl or laminate kitchen furniture are particularly prone to heat damage and discolouration.
When placing the oven in the housing, do not use the oven door or handle as a lever for lifting the oven as damage
may result. When you open the oven door, you will see 2 screw holes on either side of the oven where you fix the
oven to the cabinetry.
The oven should then be secured to the housing by fitting screw provided into these holes.
Built-under Oven Housing
570
5
7
7
.
2
4
9
8
594
5
9
4
m
i
n565
4
5
595
16.8
570
m
i
n
5
6
5
595
4
5
m
i
n
4
5
m
in
2
1
5
7
7
.
2
4
9
8
594
5
9
4
16.8
2
1
5
9
5
5
9
5
