TKR1240
Note: Slot in spring
perch should face
outside of vehicle.
Note: Black screw
is RH threaded
and goes on
right side.
Silver screw is
LH threaded and goes
on left side.
TKR1211
Thread
Lock
Refer to filling instructions on
page 19 (stock ‘emulsion’
build), or page 20 (optional
‘bladder’ build) during this step.
Stock shock position is inside
hole on the arm, and middle
hole on the tower.
Stock rear ride height is 25mm
Shock length (droop) is 125mm
If using a Droop Guage, -4mm
M2.5 Lock Nut Zinc
TKR1200
x2
TKR1240
M3x18mm Shock Mnt Screw
x2
TKR1248
M2x4mm Emulsion Screw
x2
TKR1211
M3 Lock Nut Flange Black
x2
TKR1605
M3x10mm Set Screw
x2
TKR1200
TKR6139
TKR6061
TKR6140C
TKR5049A
*TKR6061T
(Option)
*TKR6130
*TKR6131
*TKR6160
*TKR6163
(Option)
Note: Use green
slime or oil on
shock shaft
threads AND
O-rings to
prevent tearing
and leaking.
TKR6144
TKR1605
TKR6032B

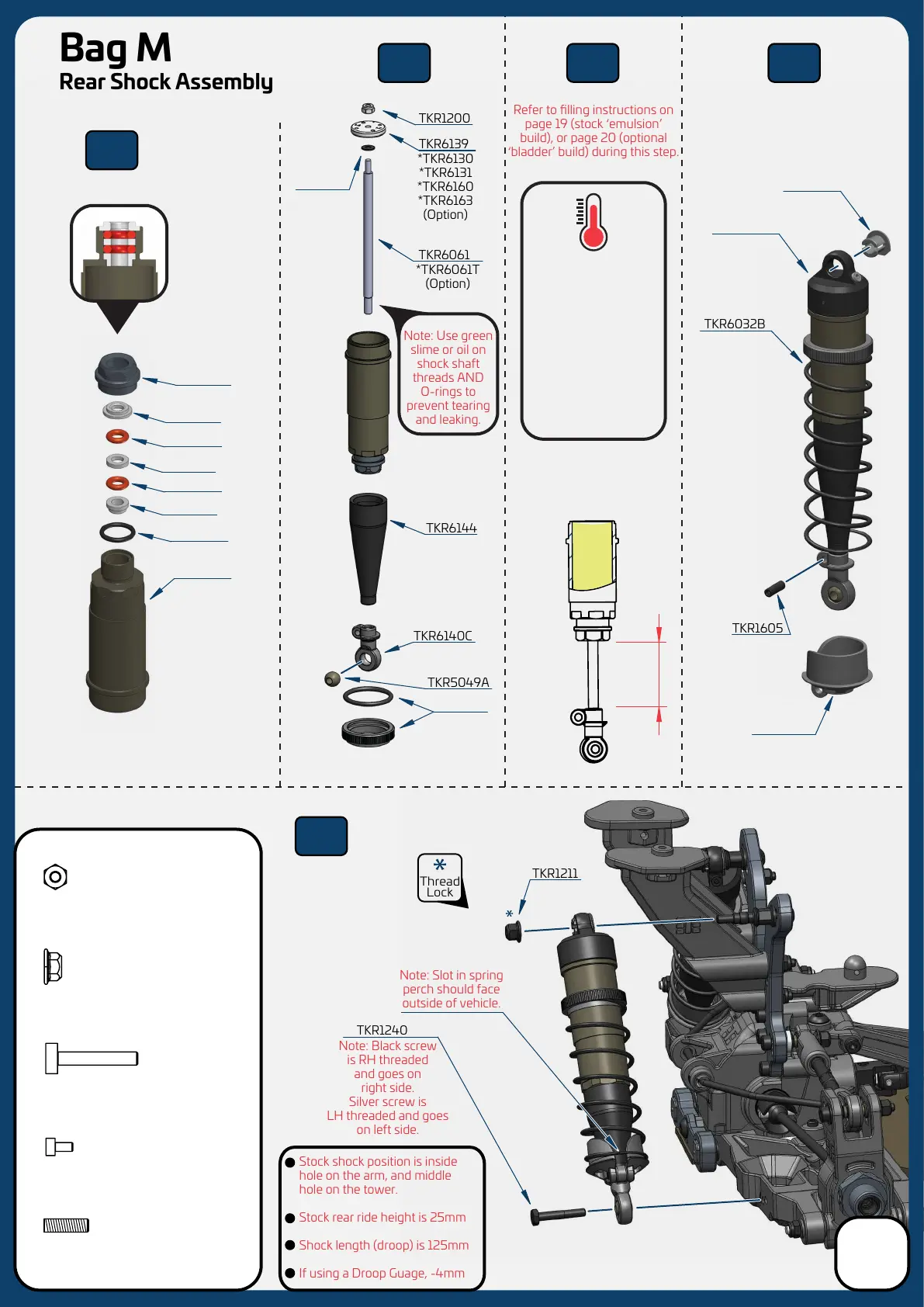

Bag M
Rear Shock Assembly
TKR8702
*TKR6003
*TKR6003B
(Option)
Use #600 CST oil
REAR
600
TKR6013
Note: Shock boots
must be installed
BEFORE attaching
rod end.
Stock
stroke
is 48mm
in rear
TKR6060
TKR6009
TKR6009
TKR6009
TKR6195
TKR6195
TKR6195
TKR6015
Step
M-1
Step
M-2
Step
M-3
Step
M-4
Step
M-5
TKR6140C
18
*TKR6030B
*TKR6031B
*TKR6033B
*TKR6034B
(Option)
TKR8730
Note: The kit supplied
oil is a great starting
point when the
ambient temperature
is ~75° F.
If it is cooler you
may need to use
thinner oil. LIkewise,
if it is warmer
you may need to use
thicker oil.
TKR1264
