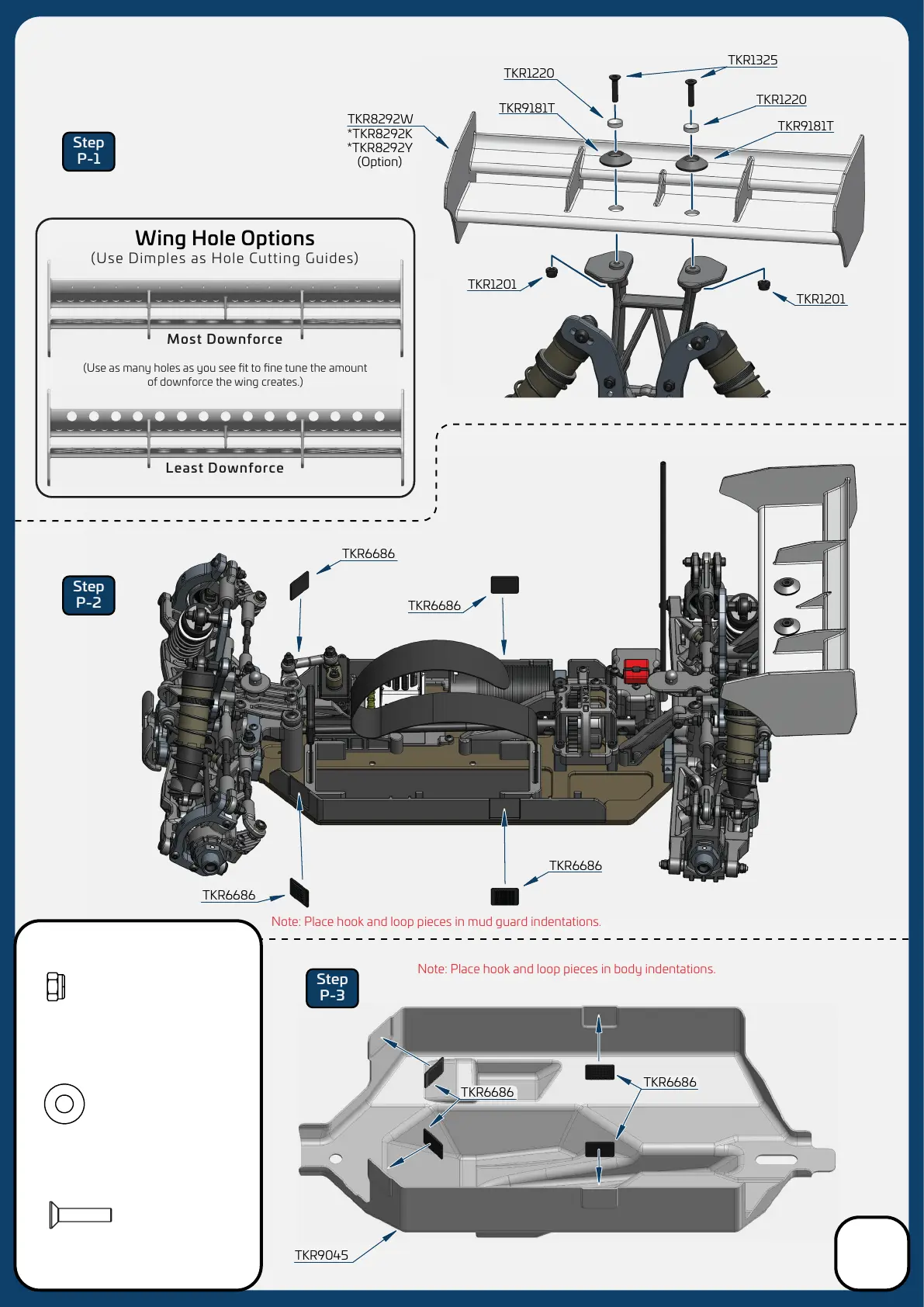

Tekno EB48 2.2 - Final Assembly

Wing Hole Options
Most Downforce
Least Downforce
(Use Dimples as Hole Cutting Guides)
(Use as many holes as you see fit to fine tune the amount
of downforce the wing creates.)
Step
P-1
Step
P-3
Step
P-2
TKR6686
TKR6686
TKR6686
TKR6686
TKR6686
TKR6686
TKR1201
TKR1201
TKR9045
TKR1325
M3x14mm Flat Head Screw
x2
TKR1201
M3 Lock Nut Black
x2
TKR1220
M4 Countersunk Washer
X2
TKR8292W
*TKR8292K
*TKR8292Y
(Option)
TKR1325
TKR1220
TKR9181T
TKR9181T
TKR1220
Note: Place hook and loop pieces in body indentations.
Note: Place hook and loop pieces in mud guard indentations.
Bag P
Final Assembly
24
