Tekno EB48 2.2 - Page 3

TKR5145B

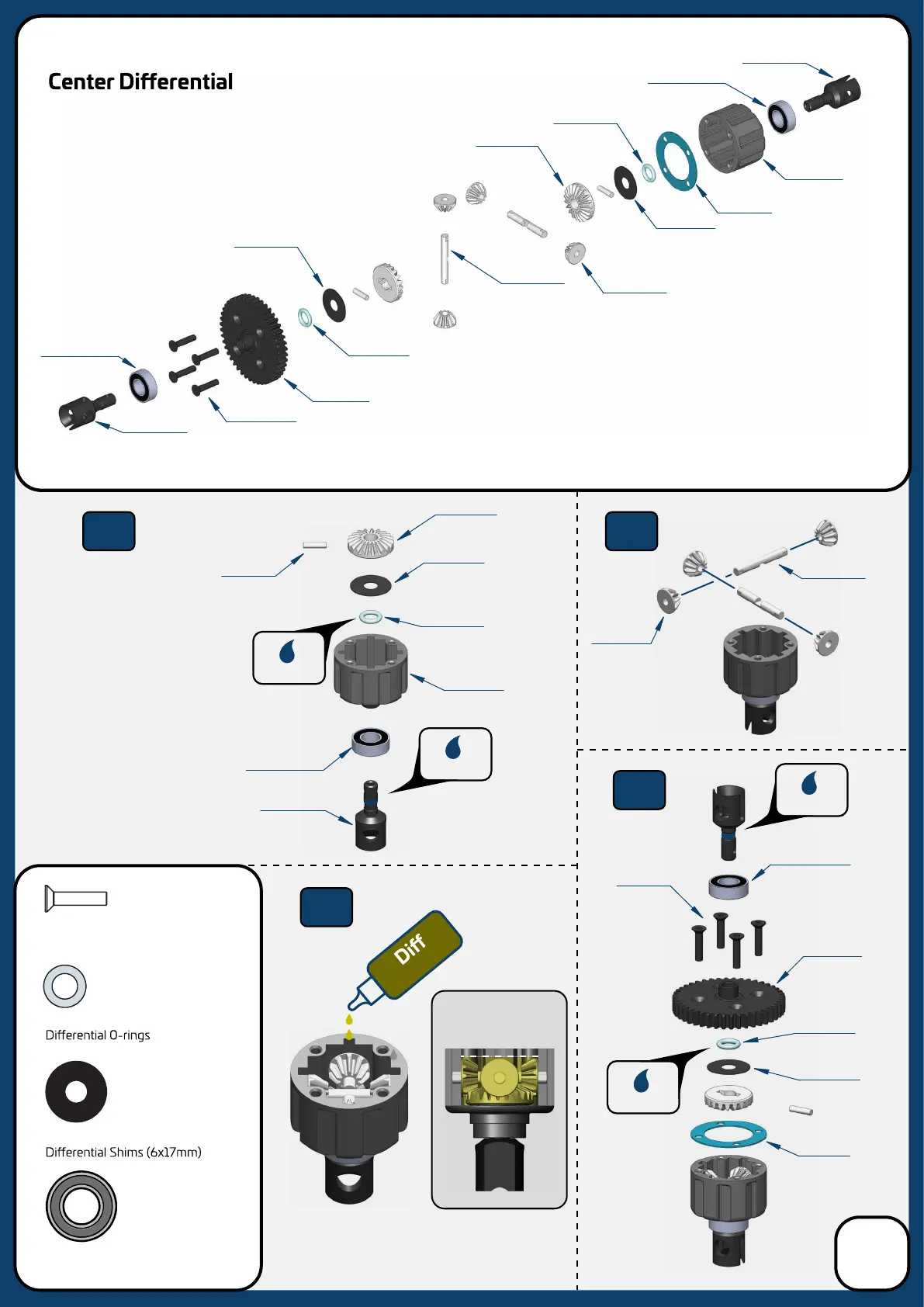

Bag A
(overview)
TKR1325
X 4pcs
TKR9149
TKR9150B
TKR5145B
TKR9115B
TKR9143
Step
A-2
Step
A-4
Fill Level
Step
A-3
Step
A-1
TKR5144B
x2
TKR5145B
x2
TKR1325
M3x14mm Flat Head Screw
x4
TKRBB08165
TKR9150B
TKR9149
Oil
TKR9237
*TKR9117
(option)
*TKR9117
(option)
TKR9237
TKRBB08165
TKRBB08165
TKR9150B
TKR5144B
TKR9150B
TKR9143
TKR5145B
TKR5144B
TKR1325 x4
TKR9114
TKR9114
TKR9114
3
Grease
Grease
Grease
Grease
Fill with #5,000 CST oil to
1mm below full
DO NOT OVER FILL
Note: Apply grease to the
groove in the outdrive.
Note: Apply grease to the
recess inside TKR9115B,
where the o-ring is placed
as well as the o-ring itself.
TKR9112
TKRBB08165
TKRBB08165
Ball Bearing (8x16x5)
x2
*TKR5114XB
(option)
*TKR5114XB
(option)
*TKR5114XB
(option)
*TKR9145
(option)
*TKR9145
(option)
*TKR9145
(option)
*TKR9115C
(option)
*TKR9115C
(option)
*TKR9149A
(option)
*TKR9149A
(option)
TKR5144B
TKR9115B
*TKR5144
(option)
*TKR5144
(option)
*TKR5144
(option)
*TKR9150
(option)
*TKR9150
(option)
*TKR9150
(option)
*TKR9150
(option)
TKR5144B
TKR5145B
*TKR9145
(option)
*TKR5144
(option)
