Tektronix 314 Manual

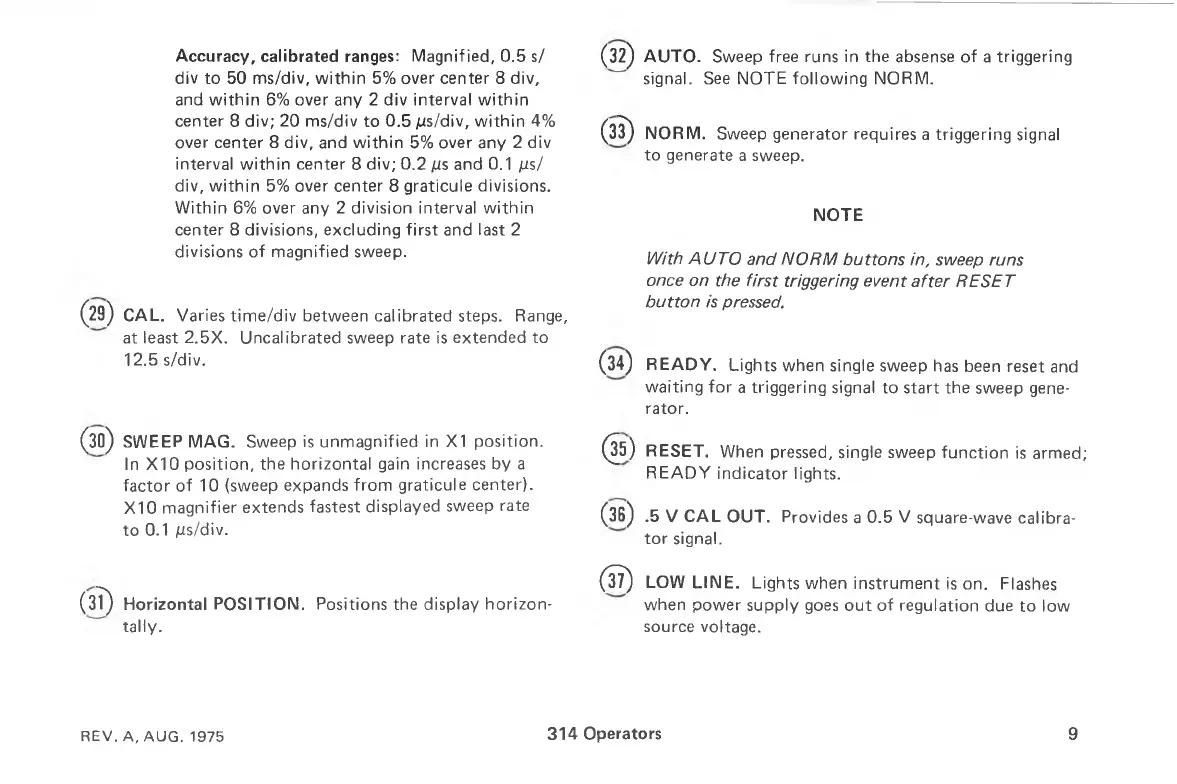

Accuracy, calibrated ranges: Magnified, 0.5 s/
div to 50 ms/div, within 5% over center 8 div,
and within 6% over any 2 div interval within
center 8 div; 20 ms/div to 0.5 µs/div, within 4%
over center 8 div, and within 5% over any 2 div
interval within center 8 div; 0.2 µs and 0.1 µs/
div, within 5% over center 8 graticule divisions.
Within 6% over any 2 division interval within
center 8 divisions, excluding first and last 2
divisions of magnified sweep.
(29) CAL. Varies time/div between calibrated steps. Range,
at least 2.5X. Uncalibrated sweep rate is extended to
12.5 s/div.
(30) SWEEP MAG. Sweep is unmagnified in X1 position.
In X10 position, the horizontal gain increases by a
factor of 10 (sweep expands from graticule center).
X10 magnifier extends fastest displayed sweep rate
to 0.1 µs/div.
(3 1 ) Horizontal POSITION. Positions the display horizon 
tally.
(32) AUTO. Sweep free runs in the absense of a triggering
signal. See NOTE following NORM.
(3 3 ) NORM. Sweep generator requires a triggering signal
to generate a sweep.
NOTE
With AUTO and NORM buttons in, sweep runs
once on the first triggering event after RESET
button is pressed.
(34) READY. Lights when single sweep has been reset and
waiting for a triggering signal to start the sweep gene 
rator.
( 3 5) RESET. When pressed, single sweep function is armed;
READY indicator lights.
(36) .5 V CAL OUT. Provides a 0.5 V square-wave calibra 
tor signal.
( 3 7) LOW LINE. Lights when instrument is on. Flashes
when power supply goes out of regulation due to low
source voltage.
REV. A, AUG. 1975
314 Operators
9
