SLOPE. Selects the slope of the signal on which trig 
gering occurs; positive going (+) or negative going ( — ).
26) External Trigger Attenuator-Line Trigger Selector. In
the 10X position, an external signal connected to EXT
TRIG OR HORIZ INPUT is attenuated by a factor of
10. In the 1X position, the external signal is not
attenuated. In the LINE position, a sample of the ac
power line is used as triggering signal.
HORIZONTAL, CALIBRATOR, AND POWER
TIME/DIV. Selects calibrated sweep rates from 5 s to
1 µs/div, in a 1-2-5 sequence.
Accuracy, calibrated ranges: Unmagnified, 5 s/
div to 0.5 s/div, within 4%, over center 8 div and
within 5% over any 2 div interval with 8 center
div; 0.2 s/div to 1 µs, within 3%, over center 8
div and within 4% over any 2 div interval within
center 8 div.
EXT TRIG OR HORIZ INPUT. BNC connector for
applying either an external triggering signal or an ex 
ternal horizontal signal.

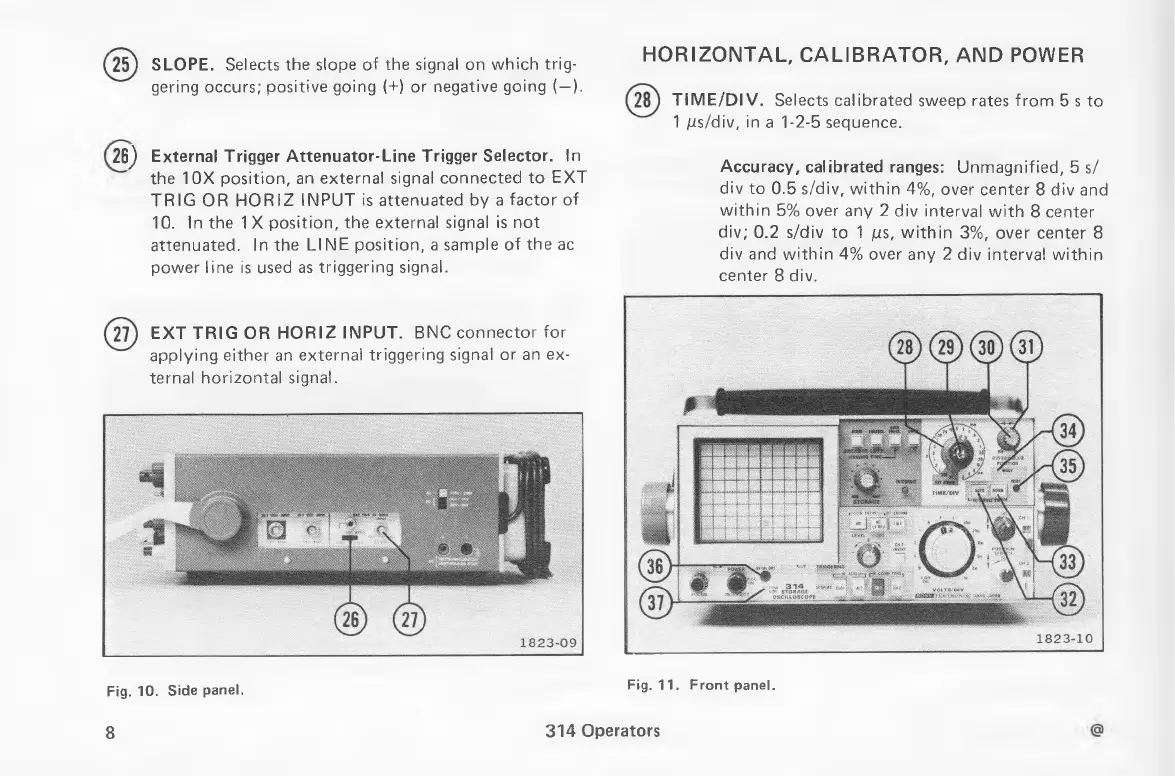

Fig. 10. Side panel.
Fig. 11. Front panel.
8
314 Operators
