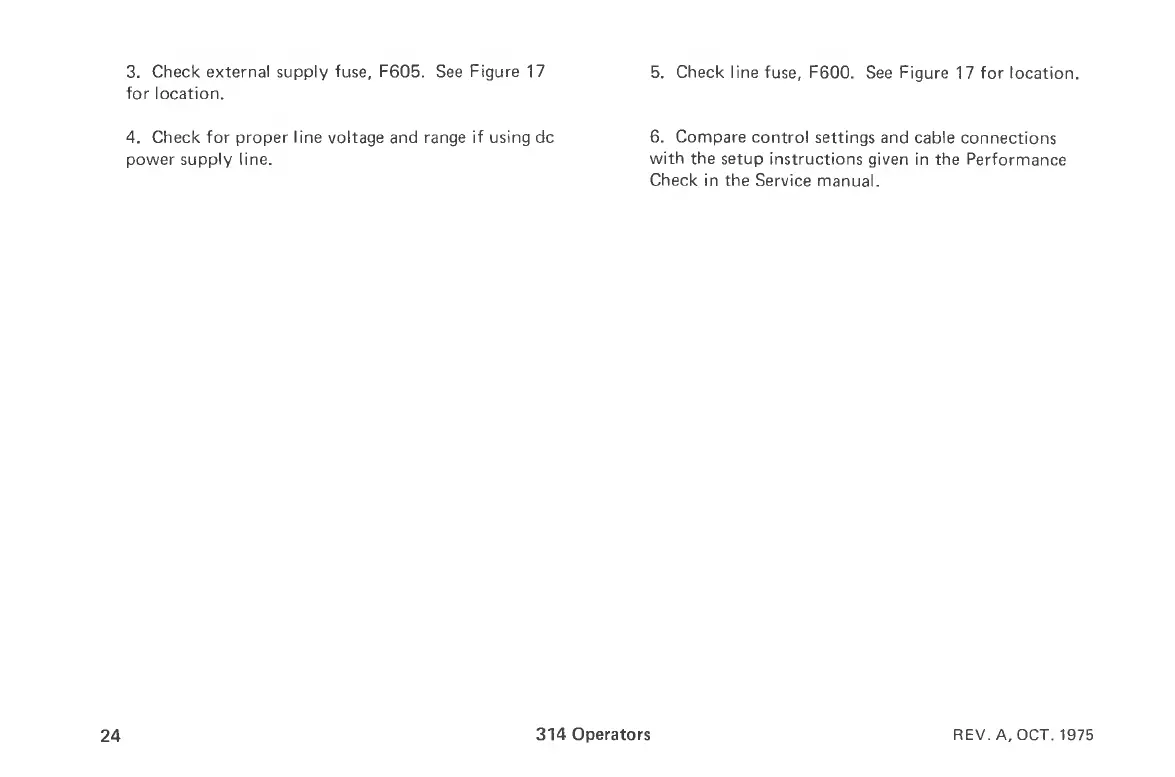

3. Check external supply fuse, F605. See Figure 17
for location.
4. Check for proper line voltage and range if using d c
power supply line.
5. Check line fuse, F600. See Figure 17 for location.
6. Compare control settings and cable connections
with the setup instructions given in the Performance
Check in the Service manual.
24
314 Operators REV. A, OCT. 1975
