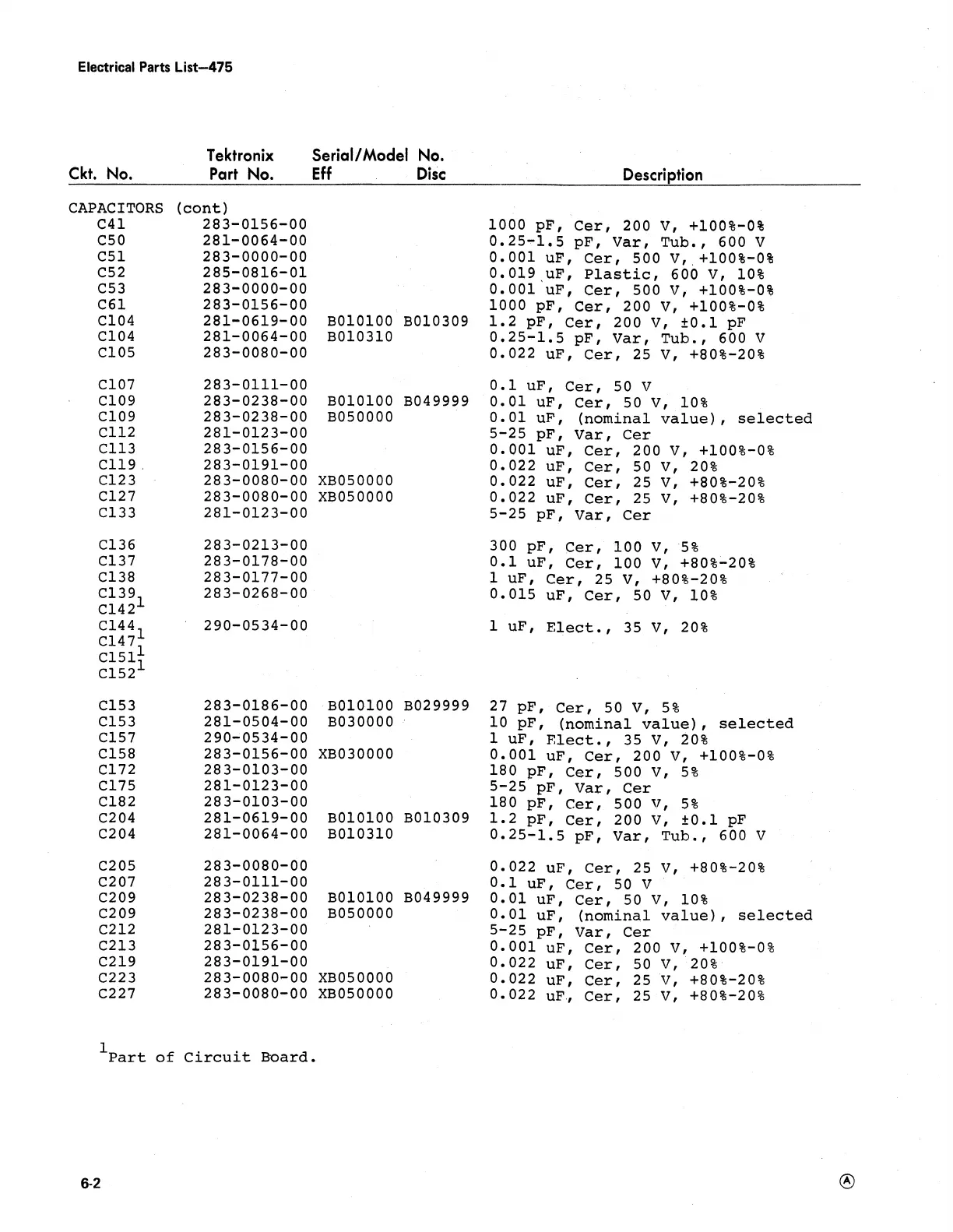

Electrical Parts List—475
Ckt. No.
Tektronix
Part No.
Serial/Model No.
Eff Disc
Description
CAPACITORS
(cont)
C41
283- 0 156-00
1000 pF, Cer, 200 V, +100%-0%
C50 281-0064-00
0.25-1.5 pF, Var, Tub., 600 V
C51
283-00 00-00
0.001 uP, Cer, 500 V, +100%-0%
C52
285- 0816 -01
0.019 uF, Plastic, 600 V, 10%
C53
283-0000-00
0.001 uF, Cer, 500 V, +100%-0%
C61 2 83-0156-00
1000 pF, Cer, 200 V, +100%-0%
C104
281-0619-00 B010100
B010309
1.2 pF, Cer, 200 V, +0.1 pF
C104
281-0 064- 00 B010310
0.25-1.5 pF, Var, Tub., 600 V
C105
283 -0080-00
0.022 uF, Cer, 25 V, +80%-20%
C107
283 -0111-00
0.1 uF, Cer, 50 V
C109 283-0238-00
B010100
B049999
0.01 uF, Cer, 50 V, 10%
C109
283 -0238-00
B050000
0.01 uF, (nominal value), selected
C112
281 -0123-00
5-25 pF, Var, Cer
C113
283 -0156-00
0.001 uF, Cer, 200 V, +100%-0%
C119 , 283-0191-00
0.022 uF, Cer, 50 V, 20%
C123
283 -0080-00
XB050000
0.022 uF, Cer, 25 V, +80%-20%
C127
283 -0080-00
XB050000
0.022 uF, Cer, 25 V, +80%-20%
C133 281 -0123-00
5-25 pF, Var, Cer
C136
283 -0213-00
300 pF, Cer, 100 V, 5%
C137
283-0178-00
0.1 uF, Cer, 100 V, +80%-20%
C138 283-0177-00
1 uF, Cer, 25 V, +80%-20%
C139 283-02 68-0 0
0.015 uF, Cer, 50 V, 10%
C14 2 1
C144
290-0534-00
1 uF, E l e c t . , 35 V, 20%
C147^
C15l|
C152
C153
283-0186-00
B010100
B029999
27 pF, Cer, 50 V, 5%
C153 281-050 4-00
B030000
10 pF, (nominal v a l u e ) , selected
C157
290-05 34-00
1 uF, E l e c t . , 35 V, 20%
C158
283-0156-00
XB030000
0.001 uF, Cer, 200 V, +100%-0%
C172
283-0103-00
180 pF, Cer, 500 V, 5%
C175 281-0123- 00
5-25 pF, Var, Cer
C182
283-0103-00
180 pF, cer, 500 V, 5%
C204
281-0619-00
B010100
B010309
1.2 pF, Cer, 200 V, +0.1 pF
C204 281-0064-00
B010310
0.25-1.5 pF, Var, Tub., 600 V
C205
283-0080-00
0.022 uF, Cer, 25 V, +80%-20%
C207 283-011 1-00
0.1 uF, Cer, 50 V
C209
283 -0238-00
B010100
B049999
0.01 uF, Cer, 50 V, 10%
C209
283-0238-00 B050000
0.01 uF, (nominal value), selected
C212
281 -0123-00
5-25 pF, Var, Cer
C213 283-0156-00
0.001 uF, Cer, 200 V, +100%-0%
C219 283-0191-00
0.022 uF, Cer, 50 V, 20%
C223 2 83-0080-00 XB050000
0.022 uF, Cer, 25 V, +80%-20%
C227 2 83-0080-00
XB050000
0.022 uF, Cer, 25 V, +80%-20%
^"Part of
Circ u it Board
6-2
